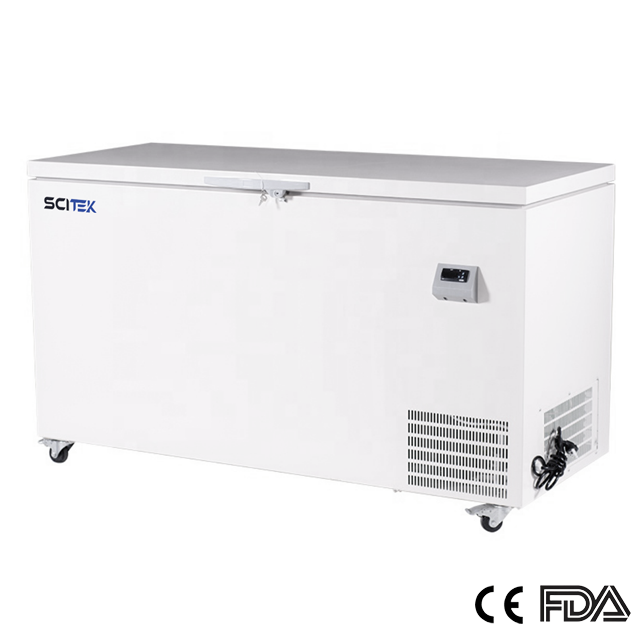

Home-40°C Chest Freezer, Manual Defrost

-40°C Chest Freezer, Manual Defrost
-40°C Chest Freezer, Manual Defrost
Model : FZ-40H220; FZ-40H420

Capacity (L) : 220 / 420
Internal Size (mm) : 960x470x600 / 1480x470x680
Temperature Range (℃) at RT.10~32℃ : -15~-45, adjustable

-40°C chest freezers offer a sustainable choice for clinical and laboratory storage. Two capacities are available, making it ideal for use in laboratories and healthcare facilities.
You can later choose whether you want a quote, or if you place a firm order.

Product Description

The -40°C Chest Freezer is mainly used for scientific research institutions, ultra-low temperature experiments with special materials, electronics industry, chemical industry, military industry, university laboratories, bioengineering, offshore fisheries, etc.

-40°C Chest Freezer Specifications:

Model FZ-40H220 FZ-40H420
Capacity (L) 220 420
Size (WxDxH) Internal (mm) 960x470x600 1480x470x680
External (mm) 1160x765x885 1680x765x985
Temperature Range (℃) -15 ~ -45℃, adjustable -15 ~ -45℃, adjustable
Sensor PTC PTC
Controller Microprocessor Microprocessor
Cooling System Refrigerant Mixed with CFC free Mixed with CFC free
Defrost Manual Manual
Compressor (Qty) SECOP/1 SECOP/1
Display LED LED
Audible & Visible Alarm High/Low Temperature Standard Standard
Sensor Failure Standard Standard
Material External Electro-galvanized steel with
antimicrobial powder coating
Electro-galvanized steel with
antimicrobial powder coating
Inner Door 304 stainless steel 304 stainless steel
Casters Standard Standard
Temperature Recorder Optional Optional
Test Hole (Qty) /
Diameter (mm)
1/18 1/18
Shelves / Drawers (Qty) \ \
Sound Emission (dB) 60 60
Electricity Voltage / Frequency 220V, 50/60Hz; 110V, 60Hz 220V, 50/60Hz; 110V, 60Hz
Consumption (W) 380 480
N.W. / G.W. (kg) 106/136 146/176
Shipping Size (WxDxH) (mm) 1260x845x1035 1780x845x1135

-40°C Chest Freezer Features:

  1. Microcomputer control, real-time temperature display, temperature with 0.1°C increment .
  2. High and low temperature alarm function, alarm temperature value can be set as required.
  3. Inner chamber temperature is adjustable; Alarm temperature could be customized as requirements.
  4. Built in adjustable stainless steel shelf, easy to use and to clean.
  5. Food grade stainless steel inner chamber, safe and secure.
  6. Heavy duty caster design, easy to move.
  7. Safety door lock is designed to prevent random opening.
  8. Wide voltage band design, suitable for 187V-242V AC voltage.

Refrigeration system

  1. Ultra-thick foam layer and double-sealed door effectively protect freezer’s internal temperature.
  2. Cooling system is optimized for self-replication, and the imported compressor provides strong and efficient refrigeration capacity.
  3. German EBM fan, stable performance and low noise.

Safety system

  1. Audible and visible alarm: high and low temperature & sensor error alarm.
  2. Multiple protection functions: frequent start-up protection, refrigeration system keeps running in case of sensor failure.
