Avik Product Catalogue

Product Description

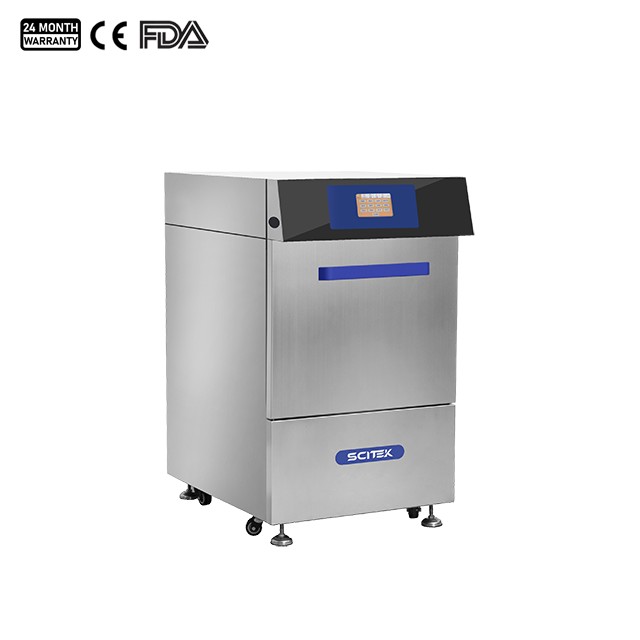

Equippment your lab with a scitek glassware washer to provide thorough, efficient and economical cleaning that meets stringent laboratory standards.

Ideal for government, university, pharmaceutical and industrial laboratories or any facility that uses reusable glassware. Dual racks and open shelves designed for laboratory glassware.

The laboratory glassware washer not only provides efficient washing performance, but also ensures flexibility and convenience to meet the specific needs of small-scale laboratories.

Automatic Glassware Washer Feature:

1. Efficiently removes organic residues and metal ions through automated high-temperature, high-pressure water cleaning.
2. Compact and lightweight design with corrosion-resistant stainless steel construction, suitable for small laboratories.
3. The man-machine interface features a 7-inch color LCD touchscreen, enabling intuitive touch operation within the visual field for convenient operation.
4. Efficient cleaning with a powerful imported pump, even water distribution, secure sealing, and rotating spray arms for thorough cleaning.
5. Secure door lock with emergency opening, comprehensive protection with alarms, and English prompts for safe operation.
6. The PLC programmable micro-computer operating system ensures stable and reliable performance. It is designed to be anti-magnetic and resistant to breakdowns.
7. Dual Peristaltic Pumps：Disinfection effectiveness mainly depends on the correct performance of the washing phases and the neutralization of the treated material. Creatrust washers come equipped with two peristaltic pumps: one dedicated to dispensing the alkaline detergent during the cleaning phase and the other for dispensing the acid neutralizer during the neutralization phase.
8. By controlling the cleaning process and monitoring key cleaning parameters through automatic program flow control, the automation and standardization of vessel cleaning can be achieved;
9. Equipped with two water inlets controlled by electromagnetic valves, users have the option to select between tap water and purified water during the wash and rinse phases
10. The 360° spray mechanism ensures comprehensive internal and external cleaning of the container, eliminating dead spots and ensuring optimal cleaning effectiveness.
11. The pure water inlet features an integrated booster pump, enabling direct suction of purified water without the need for an external booster

Automatic Glassware Washer Specification:

Water Conductivity Monitoring (Optional Accessories):

Water Conductivity Monitoring: The sensor gauges the concentration of dissolved inorganics, such as calcium and ferrous ions, in the tank water. This provides validation of water cleanliness, hardness, and rinsing thoroughness, while also confirming the proper dispensing of detergent, rinse aid, and purified water

Structural characteristics:

1. Stainless steel tank, door, and upper and lower wash arms
2. Freestanding models have stainless steel exterior sides and top
3. One-piece, stainless-steel, fine mesh particle drain filter traps debris in tank to protect pumps
4. Four leveling feet
5. Factory-installed drain hose and band clamp

How to use the laboratory glassware washer

Applicatios of Automatic Glassware Washer:

Suitable for daily work in small laboratories, it provides researchers with a convenient and quick solution for glassware washing, ensuring clean and sterile vessels during experiments.

1. In the medical field, especially in small-scale medical laboratories, the glassware washer provides efficient and reliable cleaning and sterilization of medical vessels to meet the hygiene requirements of medical experiments.
2. For laboratories conducting small-scale chemical experiments, the device ensures that glassware is optimally cleaned before testing, helping to improve the accuracy and reproducibility of experiments.
3. In biotechnology laboratories, the glassware washer effectively cleans petri dishes, tubular centrifuge tubes and other vessels to ensure that samples are not contaminated.
4. The small capacity glassware washer plays a key role in food science research, ensuring that the vessels used in research and analysis meet high hygiene standards
