HomeBenchtop Class B Autoclave 8/12/18/24L

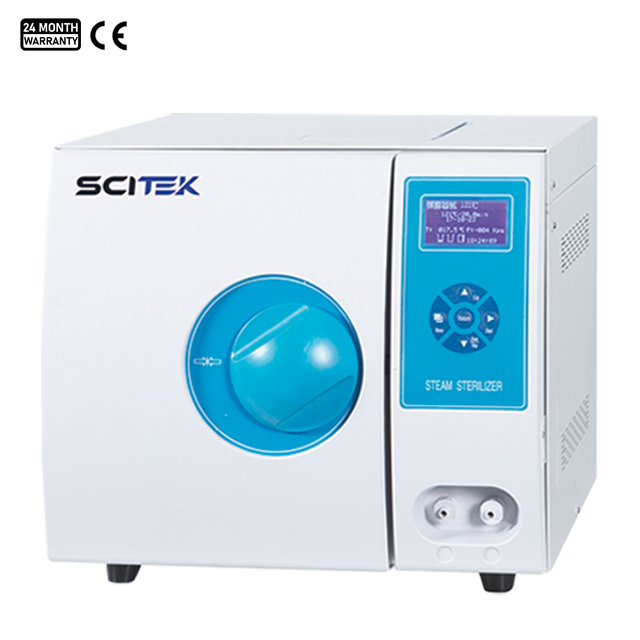

Benchtop Class B Autoclave 8/12/18/24L
Model : ST-B8B; ST-B12B; ST-B18B; ST-B24B

Capacity (L) : 8 / 12 / 18 / 24
Rated Working Temperature (℃) : 134
Rated Working Pressure (Mpa) : 0.22
Power (KW) : 2

The economical Class B autoclave with manual door is designed to make the sterilization process easier and safer.
You can later choose whether you want a quote, or if you place a firm order.

Product Description

Class B Autoclave Specifications:

Model ST-B8B ST-B12B ST-B18B ST-B24B
Volume 8L 12L 18L 24L
Power 2kw 2kw 2kw 2kw
Voltage 220V110V;50/60Hz
Design Pressure 0.25Mpa
Design Temperature 139℃
Rated Working Pressure 0.22 Mpa
Temp Accuracy ±1℃
Rated Working Temperature 134℃
Chamber Volume Ø170×320 Ø200×355 Ø250×370 Ø250×452
Sizes(WxDxH)(mm) 580x445x400 600x445x400 640x480x450 690x480x450
Shipping Size(WxDxH)(mm) 650x500x450 660x510x460 720x560x510 760x560x510
N.W./G.W. (kg) 42/45 44/48 48/57 53/60



Benchtop Class B Autoclave Features:

  1. Complies with european class B standard for effective sterilization.
  2. Microcomputer control wirh LCD display and touch buttons ensures easy monitoring and precise operation.
  3. The class B autoclave equipped with BD test, HELIX test, and vacuum test for comprehensive sterilization performance.
  4. Automatic protection function includes over temperature, over pressure, and low water level protection, as well as anti-dry burning and safety door lock. Safety interlocking device ensures proper operation and prevents accidents.
  5. Three times pre-vacuum enhances sterilization efficiency and effectiveness.
  6. Buzzer reminder signals the completion of sterilization cycles, and automatic stop ensures safety.
  7. Automatic discharge of cold air and steam exhaust after sterilization for efficient and safe operation.
  8. Built-in steam generator provides quick production of saturated steam for sterilization processes.

Details of Benchtop Class B Autoclave (ST-B24B):

Benchtop Class B Autoclave

Benchtop Class B Autoclave

Easy-to-operate control panel with digital display and buttons to easily adjust sterilization temperature and time. The simple interface allows users to quickly get started and make settings.

Benchtop Class B Autoclave

Precise internal structure and sterilization basket. High-quality stainless steel inner liner is corrosion-resistant, ensuring the long-term service life and stability of the equipment.

ST-B24B (7)

ST-B24B (14)

The internal container is made of high temperature resistant material to ensure that it will not be damaged during the autoclaving process. The spaciousness is suitable for sterilizing a wide range of laboratory tools and items.

ST-B24B (13)

ST-B24B (9)

ST-B24B (1)

The exterior is marked with a clear product label for easy identification. Sturdy wooden case protects the equipment during transportation and ensures that it will not be damaged by vibration or collision, suitable for long distance transportation and storage.
