Blood Bank Refrigerator with Auto-defrost

Home » Avik Product Catalogue » Blood Bank Refrigerator with Auto-defrost

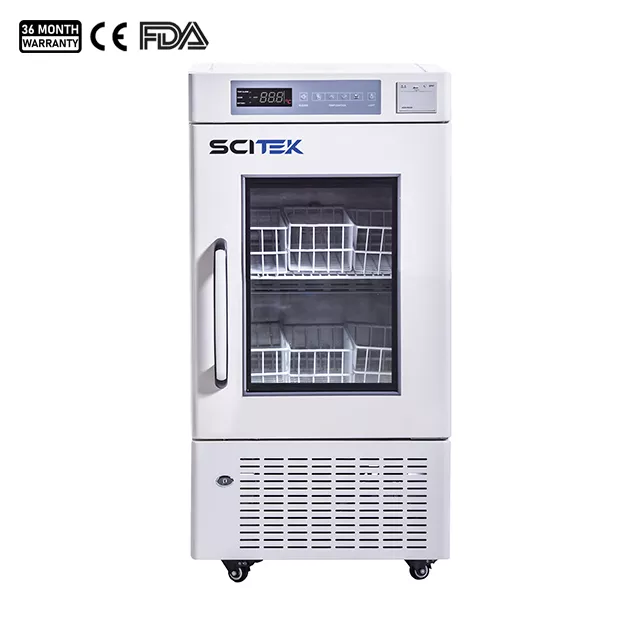

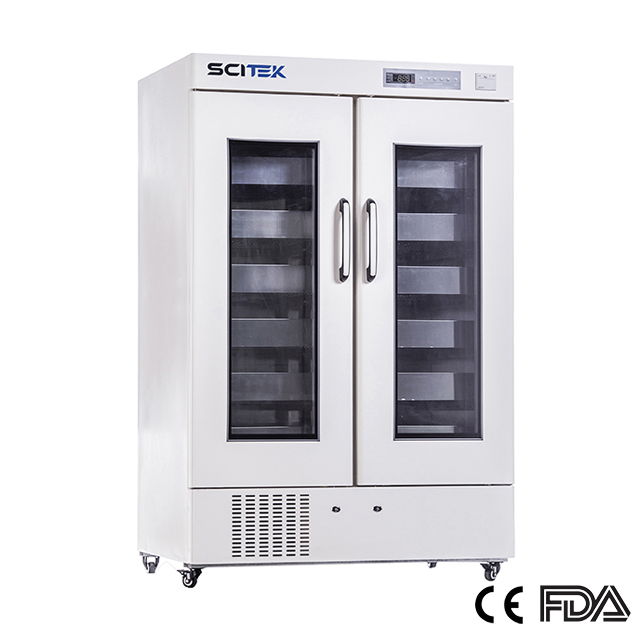

Model : BR-4V110; BR-4V210; BR-4V370; BR-4V660; BR-4V1000

Capacity (L) : 108 / 208 / 368 / 658 / 1008
Shelves / Drawers (Qty) : 2 Shelves / 4 Shelves / 4 Shelves / 12 Shelves / 12 Drawers
Temperature Range (℃) at RT.10~32℃ : 4±1

The blood storage refrigerator is provides energy efficient, safe and reliable performance designed for research, life science, clinical and commercial applications. Supports remote alarm monitoring.

You can later choose whether you want a quote, or if you place a firm order.

Product Description

This blood storage refrigerator is designed to provide high quality storage and maximum protection for life-saving blood. Multiple parameters provide options for blood component and whole blood storage.

Blood Bank Refrigerator Specification:

Model		BR-4V110	BR-4V210	BR-4V370	BR-4V660	BR-4V1000
Capacity (L)		108	208	368	658	1008
Bloodbags (450ml)(Qty)		53	106	240	288	480
Bloodbags (400ml)(Qty)		60	120	270	324	540
Bloodbags (300ml)(Qty)		66	132	300	360	576
Bloodbags (200ml)(Qty)		120	240	540	684	1080
Size (WxDxH)	Internal (mm)	432x462x478	432x462x978	685x429x1380	1100x454x1325	1100x684x1325
Size (WxDxH)	External (mm)	540x630x1030	540x640x1530	785x565x1920	1220x648x1885	1240x860x1895
Temperature	Range (℃) at RT. 10~32℃	4±1	4±1	4±1	4±1	4±1
	Sensor	NTC	NTC	NTC	NTC	NTC
	Controller	Micro- processor	Micro- processor	Micro- processor	Micro- processor	Micro- processor
Cooling System	Refrigerant	R134a (CFC Free)	R134a (CFC Free)	R134a (CFC Free)	R134a (CFC Free)	R134a (CFC Free)
	Defrost	Auto	Auto	Auto	Auto	Auto
	Compressor (Qty)	EMBRACO/1	EMBRACO/1	EMBRACO/1	SECOP/1	SECOP/1
Display		Digital display	Digital display	Digital display	Digital display	Digital display
Audible & Visible Alarm		High/Low temperature, High ambient temperature, Sensor error, Low battery, Power failure backup system(alarm)(72h)
Material	Internal	Stainless steel, grade 304
Material	External	Electro-galvanized steel with antimicrobial powder coating
Accessories	USB Port	Standard
	Casters	Standard			Optional	Optional
	Test Hole(Qty) / Diameter (mm)	1/25	1/25	1/25	1/25	1/25
Shelves / Drawers (Qty)		Shelves/2	Shelves/4	Shelves/4	Shelves/12	Drawers/12
Sound Emission (dB)		49.6	51.2	51.2	51.2	53.6
Electricity	Voltage/ Frequency	AC110/220V & plusmn; 10%, 50/60Hz
Electricity	Consumption (kWh/24h)	2.31	2.09	4.69	5.77	6.01
N.W./G.W. (Kg)		74/95	96/120	128/135	202/257	265/335
Shipping Size (WxDxH)(mm)		700x585x1200	590x700x1700	890x650x2100	1300x735x2110	1325x970x2130

Blood Bank Refrigerators Features:

Forced-air cooling system with electrical heat compensation controlled by microprocessor.
Auto-defrost system ensure no moisture on cooling surface.
Clear LED screen and control panel support easy display and operation.
Frost free door made by three-layer toughened glass.
Safety lock prevents unauthorized access.

Clear LED Display

Safety Lock

Forced-air Cooling System

Thermal Printer

Reliability

Lockable doors and password protected microprocessor parameter setting.
Build-in backup battery up to 72 hours to display temperature and operate audible and visual alarm systems.
Audible buzzer and visible flashing temperature alarm system for High/low temperature, power failure, voltage abnormal, door ajar, backup battery.
Separated inner acrylic doors ensure less affection on each space when the other door opened.

Ergonomic Design
