HomeClass B Autoclave, Automatic Door

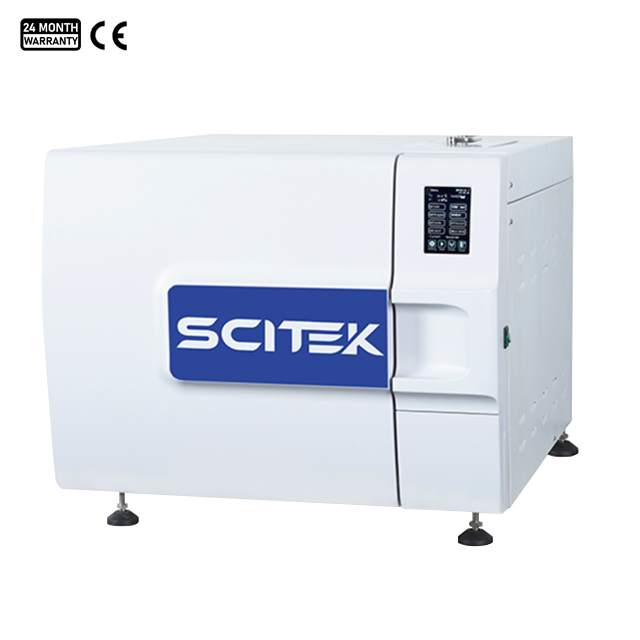

Class B Autoclave, Automatic Door
Model : ST-BA18B; ST-BA24B; ST-BA45B

Capacity (L) : 18 / 24 / 45
Rated Working Temperature (℃) : 134
Rated Working Pressure (Mpa) : 0.22
Chamber Volume : Ø250×370 / Ø250×470 / Ø316×615
Power (KW) : 2.2 / 2.2 / 3.5
The benchtop class B autoclave with electronic controls that are compact, ensuring a rapid, secure, and user-friendly method for sterilizing a variety of solid and liquid materials.

You can later choose whether you want a quote, or if you place a firm order.

Product Description

Benchtop Class B Autoclave Features:

  1. Complies with European Class B standard for effective sterilization.
  2. Automatic door switch for convenient and safe operation.
  3. Microcomputer control with LED display ensures precise and reliable sterilization.
  4. Equipped with BD test, HELIX test, and Vacuum test for comprehensive sterilization performance.
  5. Standard test interface for convenient testing and validation.
  6. Automatic protection function includes over temperature, over pressure, low water level, anti dry burning, and safety door lock.
  7. Safety interlocking device for secure operation.
  8. Three times pre-vacuum enhances sterilization efficiency.
  9. Buzzer reminder and automatic stop after sterilization cycle completion.
  10. Automatic discharge of cold air and steam exhaust for efficient and safe operation.
  11. Built-in steam generator provides quick production of saturated steam.
  12. Built-in printer for record-keeping and documentation.



Benchtop Class B Autoclave Specifications:

Model ST-BA18B ST-BA24B ST-BA45B
Volume 18L 24L 45L
Power 2.2kw 2.2kw 3.5kw
Voltage 220V110V;50/60Hz
Design Pressure 0.25Mpa
Design Temperature 139℃
Rated Working Pressure 0.22Mpa
Rated Working Temperature 134℃
Chamber Volume Ø250×370 Ø250×470 Ø316×615
Sizes(WxDxH)(mm) 620x505x450 710x505x450 870x657x575
Shipping Size(WxDxH)(mm) 670x560x510 760x560x510 770x980x720
N.W./G.W. (kg) 53/62 58/65 105/122



Benchtop Class B Autoclave Details:

manchine

Class B autoclave front view

Class B autoclave chamber

Class B autoclave chamber

Class B autoclave display

Display

Class B autoclave filter

Filter and salety valve

WHY SCITEK

2 Years Limited Warranty

1-2 Days Handling and 7-30 Days Shipping

How long does a Class B autoclave take?

Our Class B autoclaves can typically complete a full sterilisation cycle in approximately 30 minutes. This time may vary slightly depending on the type and quantity of items being processed.

Does this Class B autoclave meet industry standards for sterilisation effectiveness?

Yes, our benchtop class B autoclave complies with the international EN 13060 standard for effective sterilisation of all types of microorganisms, including bacteria, viruses, fungi and spores.

About after-sales service

We provide comprehensive after-sales service support, including maintenance, training, technical support and spare parts supply, etc., to ensure that your class B autoclave is always in the best condition.

What is the time limit for the use of autoclaves?

Autoclaves usually do not have a fixed time limit for use, but rather a service life based on factors such as the design of the equipment, the materials and the manufacturing process. However, regular maintenance and servicing are important to extend the life of the equipment. It is recommended that you follow the recommendations we have provided for maintenance and strictly follow the instructions in the operating manual during use.
