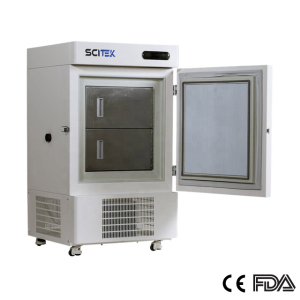

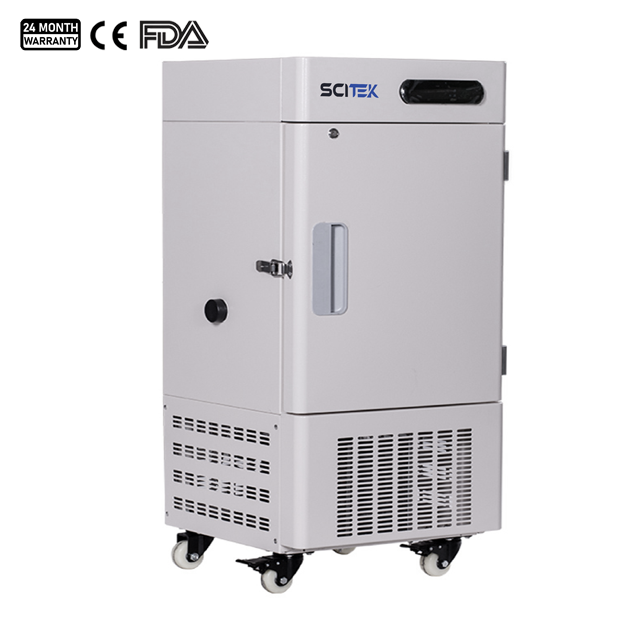

Economical -86℃ Ultra Low Temperature Freezer
Economical -86℃ Ultra Low Temperature FreezerEconomical -86℃ Ultra Low Temperature FreezerEconomical -86℃ Ultra Low Temperature FreezerEconomical -86℃ Ultra Low Temperature Freezer
Model : UFZ-86V30; UFZ-86V110E; UFZ-86V160E; UFZ-86V940

Capacity (L) : 28 / 108 / 158 / 938
Internal Size (mm) : 270x265x400 / 460x460x510 / 460x455x800 / 1000x700x1335
Shelves / Drawers (Qty) : 1 Shelves/ 2 Shelves / 2 Shelves / 3 Shelves
Temperature Range (℃) at RT.10~32℃ : -40~-86, adjustable

-86°C ultra low temperature freezer provides an economical and environmentally friendly solution for safe and reliable general purpose storage.
You can later choose whether you want a quote, or if you place a firm order.

Product Description

Ultra Low Temp Freezer Specifications:

Model UFZ-86V30 UFZ-86V110E UFZ-86V160E UFZ-86V940
Capacity (L) 28 108 158 938
Size (WxDxH) Internal (mm) 270x265x400 460x460x510 460x455x800 1000x700x1335
External (mm) 470x490x1120 700x730x1260 700x700x1580 1240x1000x2000
Temperature Range (℃) -40~-86℃, adjustable -40~-86℃,  adjustable -40~-86℃,  adjustable -40~-86℃,  adjustable
Sensor PTC PTC PTC PTC
Controller Microprocessor Microprocessor Microprocessor Microprocessor
Cooling
System
Refrigerant Mixed with CFC free Mixed with CFC free Mixed with CFC free Mixed with CFC free
Defrost Manual Manual Manual Manual
Compressor (Qty) SECOP/1 SECOP/1 SECOP/1 SECOP/2
Display LED LED LED LED
Audible&
Visible Alarm
High/Low Temperature Standard Standard Standard Standard
Abnormal
Ring Temperature
Optional (LCD) Optional (LCD) Optional (LCD) Optional (LCD)
Sensor Failure Standard Standard Standard Standard
Condenser Dirty
Blockage
Optional (LCD) Optional (LCD) Optional (LCD) Optional (LCD)
Low Battery Optional (LCD) Optional (LCD) Optional (LCD) Optional (LCD)
Power Failure Optional (LCD) Optional (LCD) Optional (LCD) Optional (LCD)
Door Ajar Optional (LCD) Optional (LCD) Optional (LCD) Optional (LCD)
Material External Electro-galvanized steel with
antimicrobial powder coating
Electro-galvanized steel with

antimicrobial powder coating

Electro-galvanized steel with

antimicrobial powder coating

Electro-galvanized steel with

antimicrobial powder coating

Inner Door 304 stainless steel 304 stainless steel 304 stainless steel 304 stainless steel
Casters Standard Standard Standard Standard
Temperature Recorder Optional Optional Optional Optional
Test Hole (Qty) /
Diameter (mm)
1/18 1/18 1/18 1/18
Shelves / Drawers (Qty) Shelves / 1 Shelves / 2 Shelves / 2 Shelves / 3
Sound Emission (dB) 60 60 60 60
Electricity Voltage / Frequency 220V, 50/60Hz; 110V, 60Hz 220V, 50/60Hz; 110V, 60Hz 220V, 50/60Hz; 110V, 60Hz 220V, 50/60Hz; 110V, 60Hz
Consumption (W) 400 480 500 1020
N.W. / G.W. (kg) 66/91 107/137 123/153 320/350
Shipping Size (WxDxH) (mm) 550x590x1270 780x830x1410 780x800x1730 1320x1100x2150

Optional (LCD): These alarm functions are only available when the LCD screen is selected.

Ultra Low Temp Freezer Features:

  1. High-performance V.I.P. (Vacuum Insulation Panel) insulation panels are used to minimize cabinet heat gain and improve temperature stability.
  2. Efficient cooling system operates the mixed refrigeration system for rapid and stable cooling, while being energy-saving and easy to maintain.
  3. The inner door has a unique design that separates storage compartments and minimizes frost buildup inside the chamber.
  4. Upright door with limit door hinge prevents collision when door opens.
  5. Lockable universal caster wheels for easy moving. Removable inner door for user to defrost and clean.

Reliability

  1. Safety password protected control panel prevents unauthorized system modification.
  2. Audible buzzer and visible flashing temperature alarm system for high/low temperature, sensor error, thermostat failure alarm, power failure alarm, door switch, ambient temperature alarm, condenser failure alarm, filter check alarm, voltage abnormal alarm, low battery alarm.
  3. Door lock for storage safety

Ergonomic Design

  1. Upright door with limit door hinge prevents collision when door opens.
  2. Controller password protected to avoid unauthorized system modification.
  3. Lockable universal caster wheels for easy moving.
  4. Removable inner door for user to defrost and clean.
