Model : ST-H150I; ST-H200I; ST-H300I; ST-H400I
Capacity (L) : 150 / 200 / 300 / 400
Chamber Size (ØxH)(mm) : Ø472×880 / Ø472×1150 / Ø620×995 / Ø620×1320
Working Temperature (℃) : 105-136
Working Pressure (Mpa) : 0.225
This Autoclave needs to be used with an air compressor

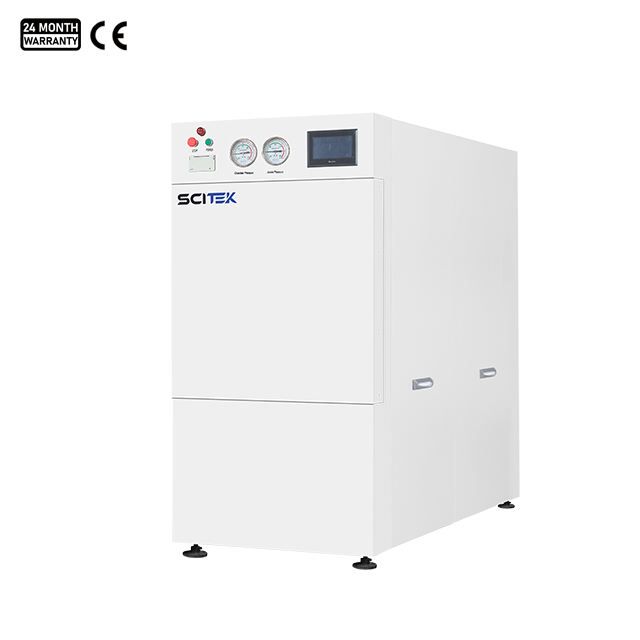

The horizontal design of this pressure steam autoclave makes loading and removing items easier and reduces operational labour.
You can later choose whether you want a quote, or if you place a firm order.
Product Description
Horizontal Pressure Steam Autoclave Specifications:
Horizontal Pressure Steam Autoclave Features:
- Horizontal circular inner chamber and jacket structure for safety, heat preservation and drying function.
- Control system featuring HMI man-machine interface, touch screen and microcomputer for intuitive operation.
- Disc type embedded gear and electric lock door structure for reliable and secure operation.
- Self-expanding door seals for effective sealing.
- The horizontal pressure steam autoclave equipped with a standard equipment verification interface for easy calibration and validation.
- Optimal design pipeline system with SUS 304 pipeline and clamp structure for quick assembly.
- FO value and temperature-time double guarantee sterilization effect with comprehensive sterilization records.
- Multiple safety protections including over-temperature and over-pressure protection.
- Built-in printer & USB function.
