Model : ST-H60; ST-H80; ST-H100; ST-H135; ST-H150; ST-H185; ST-H200; ST-H300; ST-H450
Capacity (L) : 60 / 80 / 100 / 135 / 150 / 185 / 200 / 300 / 450
Chamber Size(mm) : Ø386×500 / Ø386×700 / Ø386×950 / Ø500×700 / Ø500×780 / Ø500×950 / Ø500×1000 / Ø650×950 / Ø650×1360
Sterilization Temperature (℃) : 105~136
Max. Sterilization Pressure (Mpa) : 0.23
Drying Function : YES

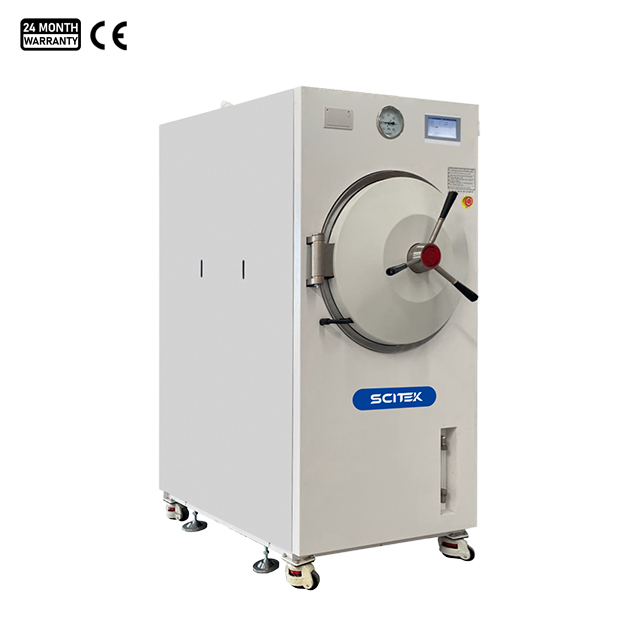

Designed for rapid heating and complete drying, this horizontal pressure steam autoclave meets the ever-changing demands of laboratory sterilisation.
You can later choose whether you want a quote, or if you place a firm order.
Product Description
Horizontal Pressure Steam Autoclave Features:
- Overheat protection: Automatically cutting off heating with audible and visual alarming when the autoclave is overheated.
- Electric interlock safety: Preventing from starting a cycle if door is not properly locked or from door opening if the chamber is pressurized or the power is disconnected.
- Door-temperature interlock safety: Preventing from explosion of liquids if the liquids temperature is not cooled down the safe limit (20℃ lower than the local boiling point).
- Anti-burning protection: Automatically cutting off heating with audible and visual alarming when the autoclave is lack of water.
- Steam pressure safety valve: Automatically works when the chamber pressure exceeds the limit.
- Electrical circuit safety device for over-current and shortcut protection.
- Automatic operation of sterilization (heating, sterilization, steam discharge and drying) can be easily set and monitored by the LCD touch screen.
- Built-in steam generator prevents the media from contamination.
- Buzzer for working errors and the end of the cycle.
- Automatic atmospheric pressure adjustment for the installation and operation in plateau areas.
- Optional printer, real-time record sterilization process, error and alarm information.
