Model : ST-BA650PV; ST-BA800PV; ST-BA1000PV; ST-BA1200PV; ST-BA1500PV
Volume(L) : 650 / 800 / 1000 / 1200 / 1500
Chamber Design Pressure : 0.3MPa
Generator Design Pressure : 1.0MPa
Design Temperaure : 150℃
Maximum Operating Temperature : 139℃
This Autoclave needs to be used with an air compressor
You can later choose whether you want a quote, or if you place a firm order.
Product Description

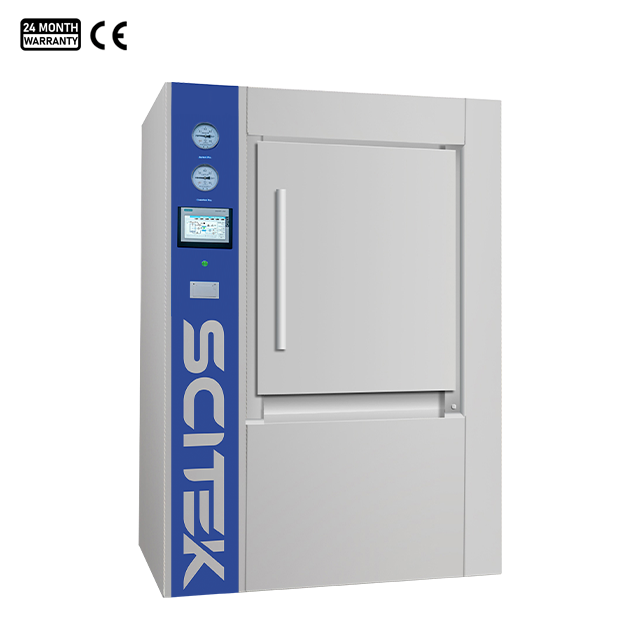

Horizontal Pulse Vacuum Autoclave Features:
- Sliding door with detachable gear meshing seal structure, driven by motor chain to lift the door up and down.
- Double door passage type, equipped with pressure safety interlock and temperature safety interlock for liquid programs, with mutual interlocking of the double doors.
- The automatic sealing is achieved by the inflatable pressure-driven sealing ring. The new high-quality tear-resistant silicone rubber material circular hollow door sealing ring is coated with a special surface treatment, which is wear-resistant and smooth, providing better sealing effect and longer service life, with a lifespan of up to 1500 cycles.
- The main body structure is rectangular in section, with a European-style circular reinforcement rib sleeve flangeless structure, and the sealing groove is directly welded to the two end circular sleeves.
- Control system: Siemens programmable logic controller (PLC) and color touch screen, the entire process is automatically controlled by the program, automatically displaying the operation status, operation curve, and parameters such as temperature, pressure, and time.
Horizontal Pulse Vacuum Autoclave Specifications:
Advantages of Horizontal Pulse Vacuum Autoclave:
- Intelligent maintenance system: Horizontal pulse vacuum autoclave is equipped with MNcold Internet of Things remote monitoring and maintenance module, it can connect to computers, tablets, or smartphones to access real-time information of the equipment, including real-time and historical operational data, fault troubleshooting notifications, and remote software upgrades. It has sterilization programs for fabrics, instruments, lumen instruments, rubber, liquids, custom programs, as well as testing programs such as BD testing and vacuum leak testing.
- Pulsation modes: Horizontal pulse vacuum autoclave adopts negative pressure pulsation, cross-pressure pulsation, and positive pressure pulsation modes, with an air elimination rate greater than 99.99%. This saves steam consumption and improves steam sterilization and drying efficiency.
- Flash steam vacuum drying technology, with fabric drying degree less than 0.6% and instrument drying degree less than 0.1%.
- Real-time printing of process data through the built-in printer, equipped with paperless recorders for pharmaceutical customers.
- Pipeline system: Stainless steel sanitary-grade pipelines with clamp connections. All welds are done using automatic pipe welding machines. The main control valves are imported German angle seat valves and solenoid valves, with a German SPECK direct-coupled water ring vacuum pump.
- Supply system detection and alarm system: Equipped with steam, water source, and power phase sequence detection and alarm devices. If the supply system fails to meet the equipment’s operating conditions, it will automatically sound an alarm and prevent program startup and termination.
- It has an automatic drainage temperature regulation system, with a drainage temperature below 60℃.
