Chamber Volume : 100L/135L/190L
Construction : 5052 Aluminium
Control System : Siemens PLC
Printer : Thermal Printer

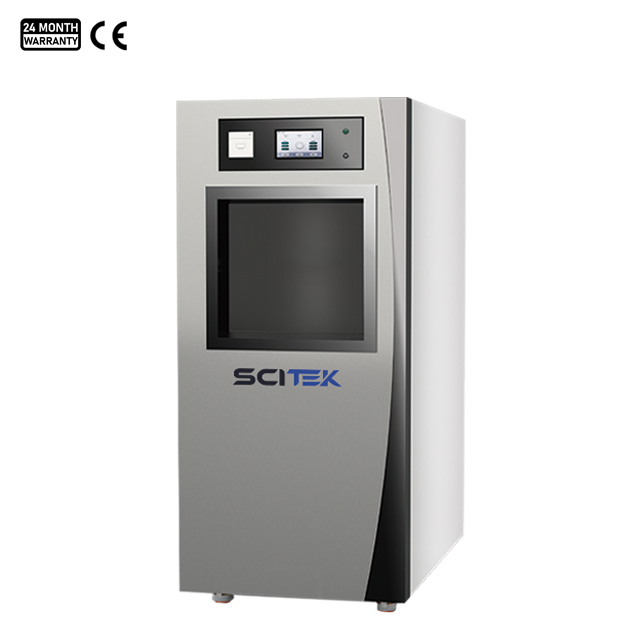

Product Description
Low temperature hydrogen peroxide plasma sterilizers are used for sterilizing heat-sensitive medical devices, dental equipment, laboratory equipment, pharmaceuticals, veterinary instruments, and beauty industry tools. They provide safe and effective sterilization while preserving delicate materials.
H₂O₂ Low Temperature Plasma Sterilizer Advantage:
- Low temperature sterilization, preserving delicate items without damage.
- Green and pollution-free process using hydrogen peroxide solution, no toxic substances or pollution.
- Stable sterilization with balanced temperature and stable hydrogen peroxide concentration.
- Efficient design with rectangular sterilization chamber for increased loading capacity.
- Safe and stable operation with electric lift door and safety interlock device.
- Simple operation with intelligent control processor and one-key start.
- Configured with high-quality components for reliable performance.
- Time and cost-saving with short sterilization cycle and low operating costs.
- Equipped with sterile filter for air inlet to prevent secondary pollution.
- U disk storage function for storing and recording sterilization data.
H₂O₂ Plasma Sterilizer Specifications:
H₂O₂ Plasma Sterilizer Features:
●High-quality 5052 aluminum material for sterilization room, with excellent thermal conductivity.
●ABS plastic disposable outer box material.
●Aluminum alloy electrode mesh and sealing door material.
●Upper and lower layers of aluminum alloy punching plates for loading sterilized items.
●Electric lifting door with infrared sensor switch and door anti-pinch function.
●Preheating heating time of ≤30 minutes.
●Full automatic control system with LCD touch screen display and PLC circuit design.
●Micro-printer for printing and saving data during sterilization.
●Siemens smart series PLC control system.
●7-inch color touch screen display with various status information.
●Storage function for recording sterilization data.
●Built-in pressure and temperature sensors for precise control.
●Two program options for circulation and rapid circulation.
●Network connection port available.
●Vacuum system with fast vacuum rate and long service life.
●Oil mist filter and air filter for exhaust filtration.
●Transistor control power supply for stable power output.
●Cartridge filling method for hydrogen peroxide.
●Explosion-proof flame retardant heating system.
●Over-voltage and over-temperature protection functions.
●Optional double doors.
Hydrogen Peroxide Plasma Sterilizer Applications:
Hydrogen peroxide plasma sterilizers are used for the sterilization of medical instruments and equipment. The plasma sterilization process involves using hydrogen peroxide vapor in a low-temperature plasma state to eliminate microorganisms, ensuring the devices are free from pathogens. These sterilizers find applications in healthcare settings, including hospitals, clinics, and laboratories, where a reliable, low-temperature sterilization method is crucial for sensitive medical instruments that cannot withstand traditional high-heat sterilization techniques.
