Platelet Incubator

Home » Avik Product Catalogue » Platelet Incubator

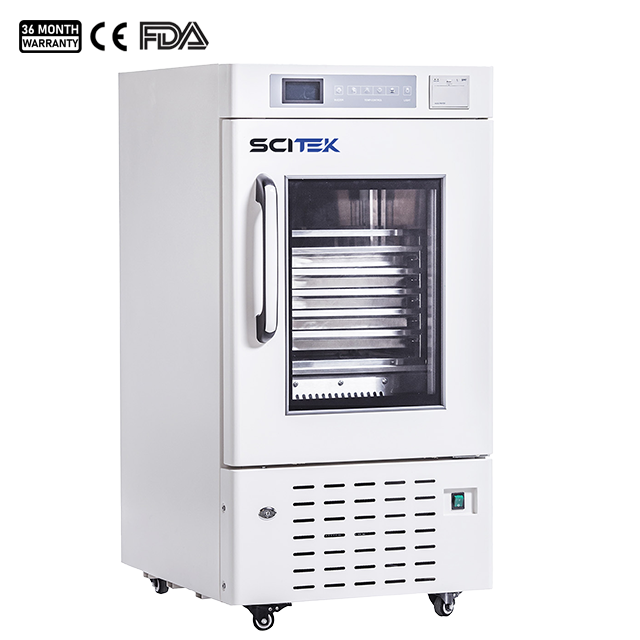

Model : ICB-P5; ICB-P10

Cooling Method : Forced air cooling
Temperature Range : 20~24℃
Refrigerant : R134a
Temp. controller : Microprocessor

Internal Size(W×D×H)(mm) : 427x360x457; 432x462x728
This platelet incubator is designed for continuous quiet operation and meets the mixing requirements in platelet storage.

You can later choose whether you want a quote, or if you place a firm order.

Product Description

This is a floor standing platelet incubator/stirring system with an advanced thermoelectric heating and cooling system. The platelet incubator has 5/10 shelves and can hold up to 50/200 platelets. The system features smooth and quiet agitation, a large color touch screen interface, indicator lights, an automatic temperature alarm program, and a thermal printer for printing reports.

Platelet Incubator Specifications:

Model		ICB-P5	ICB-P10
Preformance	Cooling Method	Forced air cooling
	Defrost	No frost
	Power Failure Backup	72h
	Temperature Range	20~24℃
	Ambient Temperature	10~32℃
	Noise(db)	49	50
Refrigeration System	Refrigerant	R134a
	Temp. controller	Microprocessor
	Sensor	NTC
	Display	Digital display
	External Material	SPCC sprayed steel
	Internal Material	Stainless steel
Alarms	High/Low Temperature	Standard
	Power Failure	Standard
	Sensor Error	Standard
	Door Ajar	Standard
	Light	UV
Other	Blood bags (450ml)/Drawer	10/5 layers	20/10 layers
	Thermal Printer	Standard
	Oscillation Amplitude	50±10mm
	Oscillation Frequency	60±5e/min
Electrical Data	Power Supply	AC220V, 50/60Hz; 110V, 60Hz
	Consumption(W)	197	280
	Current(A)	0.9	1.27
	Power consumption (kWh/24h)	2.69	4.4
Size	Internal Size (W×D×H)(mm)	427x360x457	432x462x728
	External Size (W×D×H)(mm)	522x600x1035	520x340x1290
	Shipping Size (W×D×H)(mm)	600x715x1230	605x720x1480
	CBM(m³)	0.5	0.8
	N.W./G.W. (kg)	65/95	85/120

Platelet Incubator Features:

Platelet incubator widely used in hospitals and laboratories. To store blood platelet,biological reagent, chemical products stored suitable for hospitals,blood stations, research institutes and univerity labs.

Platelet incubator adopts 304 stainless steel inner cavity, which is convenient and easy to clean.
Double-layer transparent heat-insulated glass door with inert gas filling inside to ensure cooling performance.
Control fan and forced circulation mechanism to ensure temperature consistency inside the cabinet’s large digital display
UV sterilization automatically switches off when the door is opened to prevent harm to the human body.
High-quality oscillating slides for long life and low noise level
Low power, high/low temperature, half-open door, device failure will alarm to ensure safe and reliable storage conditions
Temperature printer can be set according to the demand, monitor the temperature change of the device at any time
4 casters with limiting positions, convenient to move and fix.
