Temperature
Control |
Temperature Range |
4–60 °C (Ambient temperature -18°C, minimum 4 °C) |
| Temperature Uniformity |
±0.5 °C (At 37 °C) |
| Temperature Accuracy |
±0.1 ℃ |
Temperature Recovery
Time |
≤±10 min |
Ambient Temperature
Range |
5–35 ℃ |
| Humidification Mode |
Ambient to 95% RH |
CO2
Concentration Control |
CO2 Control Scope |
0-20% |
| CO2 Control Accuracy |
0.1% |
| CO2 Stability |
±0.1% |
| CO2 Accuracy |
±0.3% |
| CO2 Sensor |
Imported infrared ray (IR) sensor |
| Sterilization Mode |
Ultraviolet sterilization |
Concentration
Recovery Time |
≤5mins, door opened for 30s |
| Speed Control |
Rotation Frequency |
0~300 rpm |
| Rotation Accuracy |
±1 rpm |
| Vibration Range |
25 mm (50 mm, optional) |
| Technical Specification |
Volume (L) |
170 |
208 |
282 |
| Rocker Size(mm) |
480×440 |
780×500 |
920×540 |
| Maximum Capacity |
250 mL×20; 500 mL×16;
1000 mL×9; 2000 mL×5;
5000 mL×4; a static culture shelf |
250 mL×40; 500 mL×28; 1000m mL×15; 2000 mL×12; |
250 mL×60; 500 mL×40;
1000 mL×24;
2000 mL×15; 5000 mL×7; |
| Number of Rockers |
1PC |
1PC |
1PC |
| Heating Power (W) |
800 |
1000 |
1300 |
| Refrigeration Power (W) |
150 |
195 |
195 |
| Motor Power (W) |
250 |
250 |
250 |
| Light (W) |
8 |
8 |
8 |
| UV Lamp (W) |
8 |
8 |
8 |
| Power Supply |
220/110 V, 50/60 Hz |

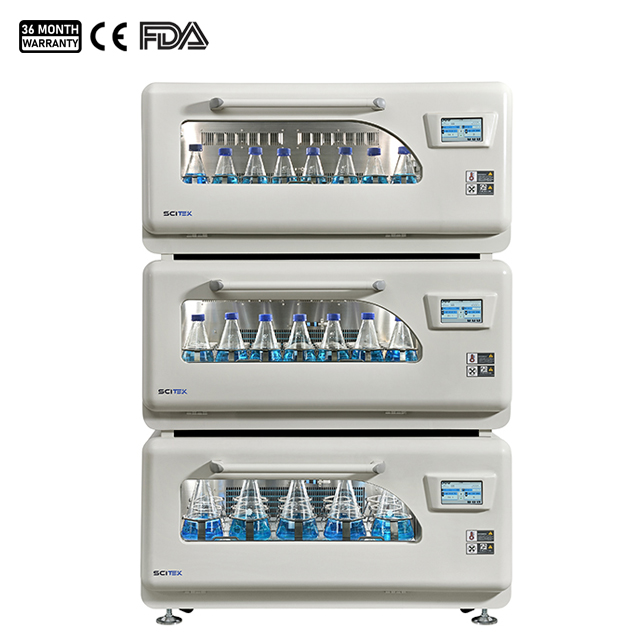

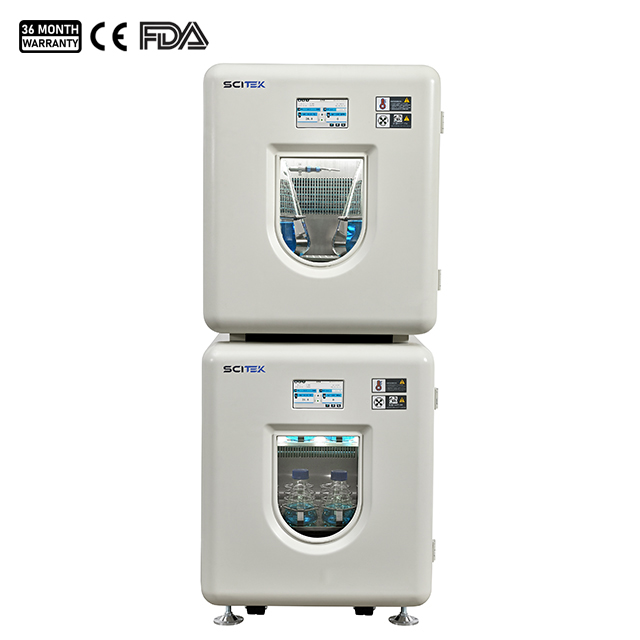

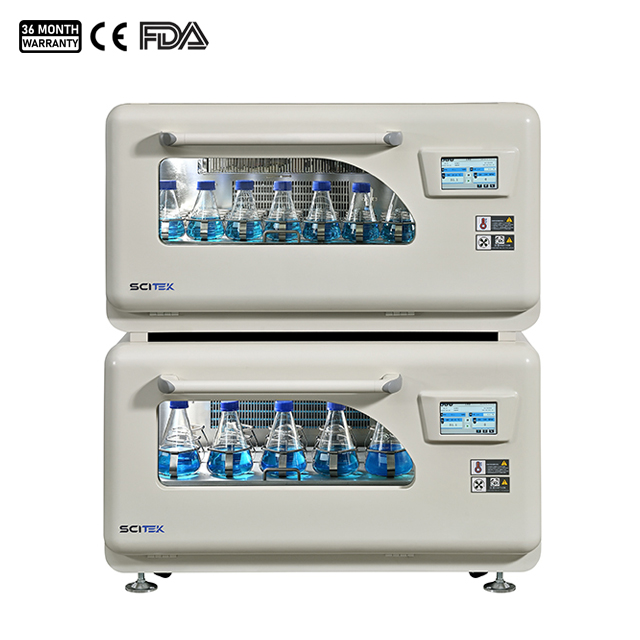

| Maximum Stacking |
2 sets |
3 sets |
3 sets |
Internal Size
(W×D×H)(mm) |
580×520×565 |
850×570×430 |
1030×595×460 |
External Size
(W×D×H)(mm) |
715×900×810 |
1200×797×640 |
1410×830×660 |
Shipping Size
(W×D×H)(mm) |
800×1070×1100 |
1330×1000×930 |
1550×1020×950 |
| N.W./G.W. (kg) |
235/300 |
329/393 |
431/520 |
| Technical Feature |
Display Mode |
7-inch true color touch screen (switchable in Chinese and English) |
| Control Mode |
P.I.D microcomputer environment scanning microprocessor chip control |
| Cyclic Mode |
Forced circulation convection type |
| Oscillation Mode |
Rotating oscillatory type |
Rotating/Reciprocating switching oscillatory type |
| Driving Mode |
Single-axis balanced drive |
| Rocker |
/ |
Free drawing type |
| Opening Mode |
Side door |
Bottom two sets: Pull-down Top: Flip-up |
| HEPA Filter |
The intake gas is sterilized by a 0.2um online filter |
| Bearing |
Imported double-row bearings |
| Compressor |
High quality inverter compressor (Energy saving by 30%) |
| Motor |
High-quality servo motor |
| Rotating Shaft Material |
Quenching and tempering treatment of 45# carbon steel and 220-250HBW |
| Inner Cavity Material |
304 high-quality imported fully stainless steel plate |
| Main Material |
High-quality and high-strength OT cast iron, channel steel, angle steel and
high-quality cold-rolled steel plate |
Bottle Gripping
Plate Material |
High-quality alloy aluminum, oxidation surface treatment |
Bottle Gripping
Material |
Adopt stainless steel mirror material, with an elasticity of
360 degrees and a hardness of 420 degrees, not prone to deformation. |
| Optional Accessory |
Support Bracket (mm) |
620×800×350 |
1070×720×350 |
1280×720×350 |
| Light Culture |
Simulated day and night lighting environment |
| Print Function |
Embedded built-in micro printer |
| Interface |
USB data storage and export |
