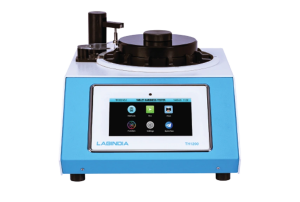

Tablet Hardness Tester TH1200
Introducing Labindia’s Tablet Hardness Tester TH1200, designed for precision and efficiency in tablet testing. This compact device measures up to five critical parameters with accuracy and complies with major pharmacopeia. With an integrated load cell for automatic weighing and an intuitive touch display that stores up to 100 methods, the TH1200 enhances productivity and reliability in quality control.
Product Description
The Labindia Tablet Hardness Tester TH1200 enhances productivity with its ability to continuously measure up to 100 tablets. It supports simultaneous measurements of thickness, length, and hardness, with quick run options for efficiency. Automatic restart after power failures ensures uninterrupted operations, while customizable report files and result previews streamline data management.
5 PARAMETER
- WEIGHT
- THICKNESS
- WIDTH
- LENGTH
- HARDNESS
FEATURES:
- 7’’ High resolution Display with Capacitive Touch Screen & User interactive software for ease of operation with protection against invalid entries.
- Facility for date and time display with Built-in Real Time Clock (RTC)
- 12 Position Carousal for Automatic measurement of tablet parameters – Thickness, Length / Diameter, Weight, Width &.
Hardness
- Automatic run can be performed continuously for practically unlimited tablets. Run can be restarted incase of interruption due to power failure
- Factory entered CUSTOMER NAME, Equipment ID with Instrument Serial Number on report
- Process Stage, Press Details, comment entry with Identification / Batch No for additional information
- Multilevel Passing Limit for detected values of Hardness, Length / Diameter, Thickness and Width with marking T1,T2, T3 for out of limit values
- Calibration for Hardness Thickness & Length / Diameter/Width: Hardness Calibration & Verification – 3 Point.
Thickness Calibration & Verification – 3 Point. Length/Diameter/Width Calibration with 2 point & verification with 3 point.
- Calibration reminder function.
- Quick RUN for Width, Thickness, Length/Diameter and Hardness measurement or All.
- The built in Sweeping blades cleans the tablet path for removal of broken pieces, debris & dust.
- Tablet Auto centering for length measurement as per tablet width / diameter.
- Groove for better positioning of oblong shape tablets.
- Run’ halt feature for out of limit value with buzzer alarm & display message indication.
- “Pause’/ ‘Resume’ feature added while measuring Hardness to make a proper alignment of the tablet.
- Error indication helps user to trace the problem.
- Linear Displacement Method with selectable speed 0.1 to 3.2 mm/sec (Step of 0.2 mm/sec)
- Fast Advance and Return movement of breaking arm saves test run time.
- Result resolution 0.1N, 0.01mm and as per unit selected.
The TH1200 features a robust calibration system, ensuring precision with three-point calibration for hardness and thickness, as well as single-point calibration for length verification. It employs standard weights and gauges for accuracy, and provides clear error indications for troubleshooting. The built-in Real Time Clock (RTC) guarantees timely reporting, enhancing compliance with GLP standards andensuring reliability in measurements.
ADVANCED CALIBRATION
