HomeVertical Intelligent Full Temperature Shaking Incubator

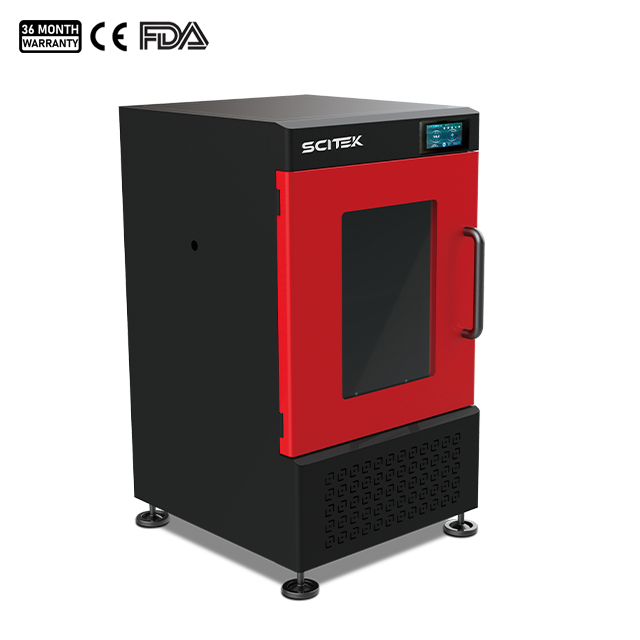

Vertical Intelligent Full Temperature Shaking Incubator

Model : ICB-620FTS

Oscillation Frequency : 0-300rpm
Oscillation Frequency Accuracy : ±1rpm
Temperature Adjustment Accuracy : 0.1℃
Temperature Control Range : 4~60℃
This vertical intelligent full temperature shaking incubator adopts self-developed thermal expansion and contraction process to produce a drive shaft that is not easy to wear and has a long service life.

You can later choose whether you want a quote, or if you place a firm order.

Product Description

Vertical Intelligent Full Temperature Shaking Incubator Feature:

  1. The internal double-layer design provides users with the largest space with the smallest footprint.
  2. The inner tank of the shaking incubator is made of mirror stainless steel and has an R-angle design, which is not conducive to the growth and attachment of bacteria, makes it easier to clean, and makes culture safer. The bottom of the inner cavity is waterproof and washable.
  3. The surface of the shaking incubator is sprayed with high-temperature electrostatic spraying, which is easy to clean, difficult to breed bacteria, and has good anti-corrosion and heat preservation effects.
  4. The overall foaming technology of the insulation layer has good insulation effect and can effectively prevent high temperatures and flame retardancy.
  5. There is a ventilation hole on the left side to facilitate temperature detection and oxygen supply.
  6. The hollow tempered glass door makes it easy to observe the inside of the box from all angles at any time without opening the door.
  7. Various choices of clamps, and customization services for special sample bottle clamps, so that every customer can use it with peace of mind.

Vertical Intelligent Fully Temperature Shaking Incubator Specifications:

Model ICB-620FTS
Oscillation Frequency 0-300rpm
Oscillation Frequency Accuracy ±1rpm
Oscillation Amplitude 26mm
Temperature Adjustment Accuracy 0.1℃
Temperature Uniformity ±1℃
Temperature Control Range 4-60℃
Convection Mode Forced convection
Display Method OLED touch screen
Control Method PID microcomputer intelligent control
Maximum Capacity Single layer: 250mlx25, 500mlx16, 1000mlx9
Timing Range 0-999.9 hours
Multi-terminal Programming Programmed intelligent control
Rocking Board Size 485×485mm
External Size 720×800×1300mm
Weight 185KG
Power Supply AC220V, 50-60Hz
Power 1000W

Full Temperature Shaking Incubator Core Technology:

  1. Equipped with standard multi-stage programming, the shaking incubator allows flexible customization of the culture plan, intelligently adjusting temperature, rotation speed, light intensity, and humidity based on the preset program.
  2. The shaking incubator features a built-in data recording function, capturing data every minute for a span of 3 months. This facilitates convenient observation of operational conditions and analysis of temperature, rotation speed, light, humidity, and more. Data records can be easily exported and saved via USB.
  3. For added reliability, the full-temperature shaking incubator incorporates a power-off recovery function, preventing data loss during power outages or crashes. It also includes an over-temperature and abnormal alarm feature, ensuring timely and effective handling of unexpected situations, with accessible alarm information.
  4. To enhance safety and convenience, the incubator offers a humanized stop or slow-stop function upon opening the lid, minimizing shearing force on cells during operation.
