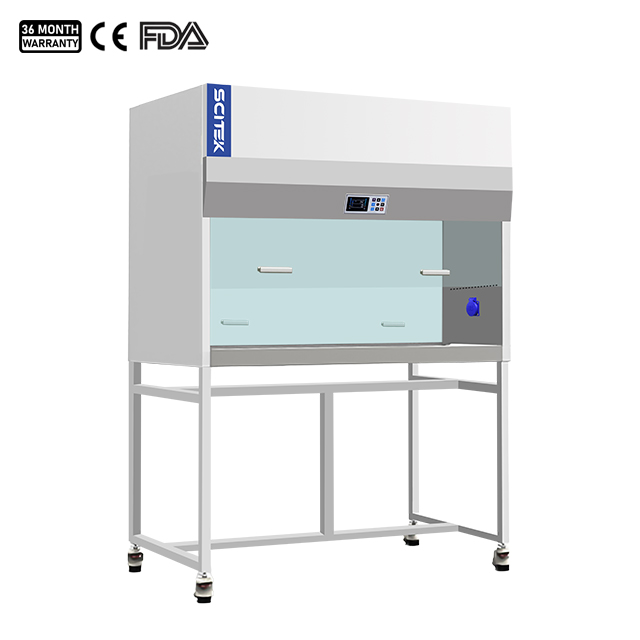

Model : LCB-V1100D; LCB-V1300D; LCB-V1600D
External Size : 3ft / 4ft / 5ft
Max.Opening : 450mm (Safety height is 400mm)
Work Surface Height : 750mm
Airflow Velocity : Adjustable, 0.2~0.5 m/s
HEPA Filter Efficiency : ≥ 99.995% at particle size of 0.3 μm
Pre-Filter : 1 pcs, made of washable polyester fiber
Work Surface Height : 750mm
Airflow Velocity : Adjustable, 0.2~0.5 m/s
HEPA Filter Efficiency : ≥ 99.995% at particle size of 0.3 μm
Pre-Filter : 1 pcs, made of washable polyester fiber
The vertical laminar flow cabinet provides adjustable airflow, and ample workspace.
You can later choose whether you want a quote, or if you place a firm order.
Product Description
Vertical Laminar Flow Cabinet Description:
Double sides vertical laminar flow cabinet provides sample protection as purified air travels across the working zone of the cabinet in a vertical, unidirectional stream and leaves the main work chamber across the entire open front of the cabinet. The Double-sides design is more convenient for multiple people to operate together.
Humanized Design:
- Brushed stainless steel work surface is for easy cleaning.
- The non-direct light source design can effectively relieve the operator’s visual fatigue under the condition of ensuring the illumination.
- Intuitive and easy-to-use microprocessor controller with LCD display, graphical and digital display of the operating status of each function, such as filter life, UV life etc.
Safety Performance:
- Front and Back sliding sash interlock with fan and UV lamp.
- UV sterilization with UV lamp timing function.
- Front sash and back windows are made of 5 mm UV Resistant Tempered Glass .
- The host and sockets have independent capacitors to prevent current overload.
Convenience Features:
- Memory function in case of power-failure.
- HEPA filter and UV life indicators facilitate a timely replacement plan .
- Double sides glass windows installed for easy experiment observation.
- Easy-to-change pre-filter installed could extend the HEPA filter’s lifetime.
- Equipped with temperature sensor to show the real temperature during operation.
- Waterproof socket provide convenience for small instruments to be used in the operating area.
