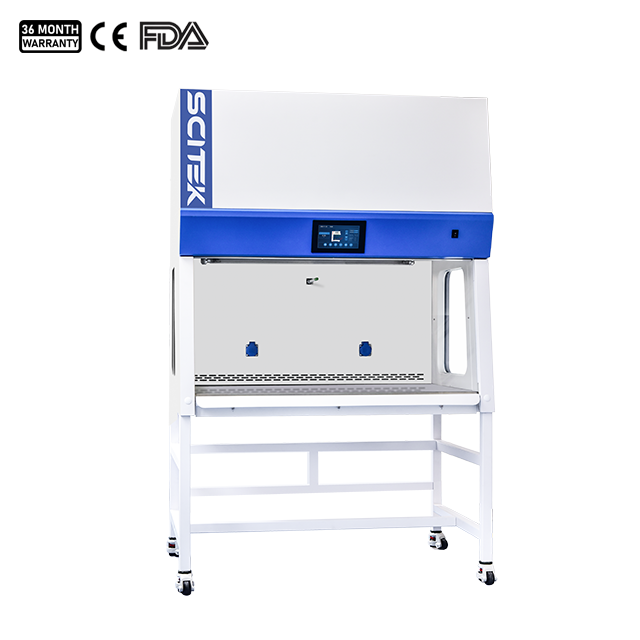

Model : LCB-V800I ;LCB-V1100I;LCB-V1300I;LCB-V1500I
Work Surface Height : 730mm
HEPA Filter : 1 pcs, Efficiency: > 99.995% at particle size of 0.3μm
Air Volume :794m3/h (467CFM); 1134m³/h (667CFM); 1361m³/h (801CFM); 1588m³/h (934CFM)
HEPA Filter : 1 pcs, Efficiency: > 99.995% at particle size of 0.3μm
Air Volume :794m3/h (467CFM); 1134m³/h (667CFM); 1361m³/h (801CFM); 1588m³/h (934CFM)
The vertical laminar flow cabinet is equipment removable stainless steel working surface, easy to pull out, convenient for cleaning and disinfection.
You can later choose whether you want a quote, or if you place a firm order.
Product Description
Vertical Laminar Flow Cabinet Features:
Microcomputer control:
- Touch screen control and LCD display of human-machine interaction interface.
- Real-time monitoring and display of front window status, real-time display of operating status of each unit.
- Display date, time, ambient temperature, HEPA filter life, UV lamp life.
- UV disinfection and sterilization function and its timing function can be set by appointment.
- Safety status display and sound and light alarm prompt function as well as operation log and alarm log query and viewing function.
- Three-level login management authority, control function setting, parameter setting and hierarchical menu entry can be performed.
- With memory function in case of power failure, the function before power failure will be automatically executed after power is restored.
Humanized design:
- Removable stainless steel working surface, easy to pull out, convenient for cleaning and disinfection.
- Transparent side glass window design, which is convenient for multi-angle observation.
- The inclined operating front window design conforms to the ergonomic 10° inclination angle to improve the operating comfort.
- The base stand and casters with leveling function, easy to move and fix safely.
- Low-noise design, energy-saving AC blower with built-in thermal protection, safe and efficient.
- Antibacterial material coating, effectively inhibits the growth of microorganisms on the surface of the cabinet.
- Built-in Air Velocity Sensor, real-time monitoring and display air velocity and precise control.
- Equipped with dual filters, the Pre-filter effectively increases the service life of the HEPA filter.
Safety design:
- Blower overheat and overload protection function;
- UV lamp button protection function;
- Automatic Motorized tempered glass front window, control limit and travel limit dual protection;
- Front window descent delay function, sound reminder to prevent pinching.
- Audio and visual alarm (Abnormal airflow velocity, HEPA filter failure, UV lamp failure, Front window at unsafe height).
- Interlock function: UV lamp and front window; UV lamp and blower, LED lamp; blower and front window.
Optional upgrade LED lamp can be choosed:
- Color Rendering Index up to Ra98, Truly restore the true color of the experimental object, the experimental results are more accurate.
- RG0 without blue light, protects the operator from blue light.
