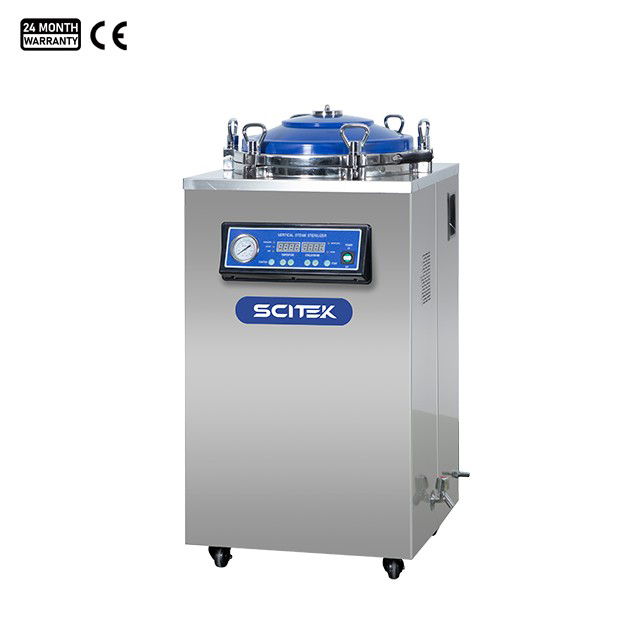

Vertical Pressure Steam Sterilizer, ST-VBS Series
Model : ST-V35BS; ST-V50BS; ST-V75BS; ST-V100BS; ST-V120BS; ST-V150BS

Capacity (L) : 35; 50; 75; 100; 120; 150
Design Temperature : 139 °C
Rated Working Pressure : 0.22 MPa
Sterilization Temperature Setting Range : 116~134 °C
Sterilization Time Setting Range : 4-120 min

Note: Manufacturers and users should consider the impact of local atmospheric pressure on sterilizer parameter settings when using sterilizers.
You can later choose whether you want a quote, or if you place a firm order.

Product Description

Application:

Vertical pressure steam sterilizer is suitable for sterilizing glassware, biological materials, culture media,

and other items in hospitals, clinical laboratories, research institutions, and similar settings. Vertical pressure

steam sterilizer serve diverse applications across multiple industries, helping maintain sterile environments,

ensure product quality, and safeguard public health.

Advantage:

1. Bolt type.

2. Microcomputer automatic control, arbitrary setting sterilization parameters.

3. High quality stainless steel material.

4. Digital display and Touch buttons.

5. With automatic protection function:over temperature protection,over pressure self discharge protection ;

low water level protection; Prevent dry burning.

6. Buzzer reminder after sterilization, automatic stop.

7. Automatic discharge of cold air, automatic steam exhaust after sterilization,Internal steam cycle.

Specification:

Model ST-V35BS ST-V50BS ST-V75BS ST-V100BS ST-V120BS ST-V150BS
Capacity (L) 35 50 75 100 120 150
Consumption (kW) 2.5 3.5 4.5 4.5 4.5 6
Power Supply AC 220/110 V,50/60 HZ
Design Pressure 0.25 MPa
Design Temperature 139 ℃
Rated Working Pressure 0.22 MPa
Rated WorkingTemperature 134 ℃
Sterilization Temperature Setting Range 116~134 ℃
Sterilization Time
Setting Range
4-120 min
Chamber Size (mm) φ300×450 φ350×515 φ400×585 φ450×620 φ450×720 φ500×747
Bucket Size (mm) φ275×395 φ325x235x2 φ375x265x2 φ425x275x2 φ425x315x2 φ475x365x2
External Size (mm) 436x473x850 544x536x985 586x576x1072 617x627x1135 617x627x1205 660x676x1255
Shipping Size(WxDxH) (mm) 550x500x900 580x630x1100 630x680x119 690x650x1230 690x650x1330 750x700x1370
Gross Weight (kg) 58 75 84 104 105 122
Net Weight (kg) 41 53 61 78 79 90
