Home25°C Freezer with Microprocessor Control

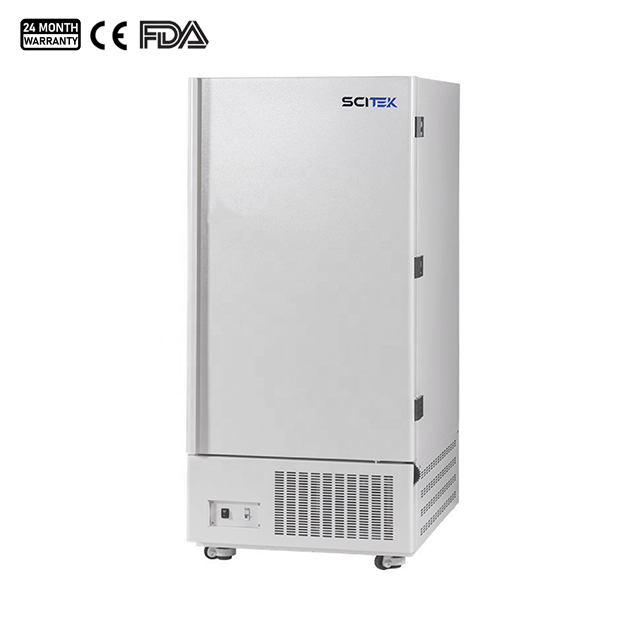

25°C Freezer with Microprocessor Control
25°C Freezer with Microprocessor Control
Model : FZ-25V410

Capacity (L) : 408 / 608 / 708
Internal Size : 550x630x1140 / 700x680x1255 / 850x735x1170
Shelves / Drawers (Qty) : 3 Shelves / 3 Shelves / 3 Shelves
Temperature Range (℃) at RT.10~32℃ : -5~-25℃, adjustable

Freezers with high-performance, clinical-grade refrigeration systems are ideally suited for use in medical, biotech and industrial laboratories. Store enzymes, blood components, specimens, vaccines, culture media and other temperature sensitive materials.
You can later choose whether you want a quote, or if you place a firm order.

Product Description

Ultra Low Temperature Freezer Specification:

Model FZ-25V410 FZ-25V610 FZ-25V710
Capacity (L) 408 608 708
Size(WxDxH) Internal (mm) 550x630x1140 700x680x1255 850x735x1170
External (mm) 850x960x1860 940x980x1920 1090x1010x1860
Temperature Range (℃) -5~-25℃ adjustable -5~-25℃ adjustable -5~-25℃ adjustable
Sensor PTC PTC PTC
Controller Microprocessor Microprocessor Microprocessor
Cooling System Refrigerant Mixed with CFC free Mixed with CFC free Mixed with CFC free
Defrost Manual Manual Manual
Compressor (Qty) SECOP/2 SECOP/2 SECOP/2
Display LED LED LED
Audible&
Visible Alarm
High/Low Temperature Standard Standard Standard
Abnormal
Ring Temperature
Optional (LCD) Optional (LCD) Optional (LCD)
Sensor Failure Standard Standard Standard
Condenser Dirty
Blockage
Optional (LCD) Optional (LCD) Optional (LCD)
Low battery Optional (LCD) Optional (LCD) Optional (LCD)
Power Failure Optional (LCD) Optional (LCD) Optional (LCD)
Door Ajar Optional (LCD) Optional (LCD) Optional (LCD)
Material External Electro-galvanized steel with antimicrobial powder coating Electro-galvanized steel with antimicrobial powder coating Electro-galvanized steel with antimicrobial powder coating
Inner Door 304 stainless steel 304 stainless steel 304 stainless steel
Casters Standard Standard Standard
Temperature Recorder Optional Optional Optional
Test Hole (Qty) /
Diameter (mm)
1/18 1/18 1/18
Shelves / Drawers (Qty) Shelves / 3 Shelves / 3 Shelves / 3
Sound Emission (dB) 60 60 60
Electricity Voltage / Frequency 220V, 50/60Hz; 110V, 60Hz 220V, 50/60Hz; 110V, 60Hz 220V, 50/60Hz; 110V, 60Hz
Consumption (W) 350 720 760
N.W. / G.W. (kg) 200/230 265/295 285/315
Shipping Size (WxDxH) (mm) 930x1060x2010 1020x1080x2070 1170x1110x2010

Ultra Low Freezer Features:

  • Microcomputer control, real-time temperature display, temperature with 0.1°C increment .
  • High and low temperature alarm function, alarm temperature value can be set as required.
  • Inner chamber temperature is adjustable; Alarm temperature could be customized as requirements.
  • Built in adjustable stainless steel shelf, easy to use and to clean.
  • Food grade stainless steel inner chamber, safe and secure.
  • Heavy duty caster design, easy to move.
  • Safety door lock is designed to prevent random opening.
  • Wide voltage band design, suitable for 187V ~ 242V AC voltage.

Refrigeration system

  • Ultra-thick foam layer and double-sealed door effectively protect freezer’s internal temperature.
  • Cooling system is optimized for self-replication, and the imported compressor provides strong and efficient refrigeration capacity.
  • German EBM fan, stable performance and low noise.

Safety system

  • Audible and visible alarm: high and low temperature & sensor error alarm.
  • Multiple protection functions: frequent start-up protection, refrigeration system keeps running in case of sensor failure.
