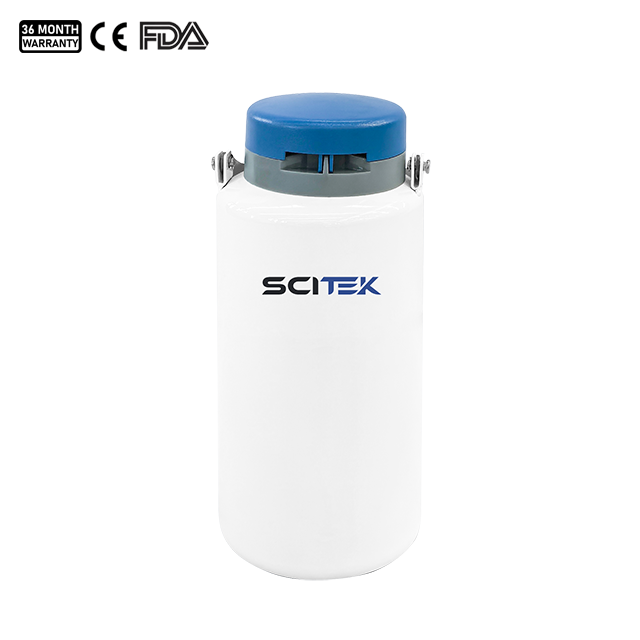

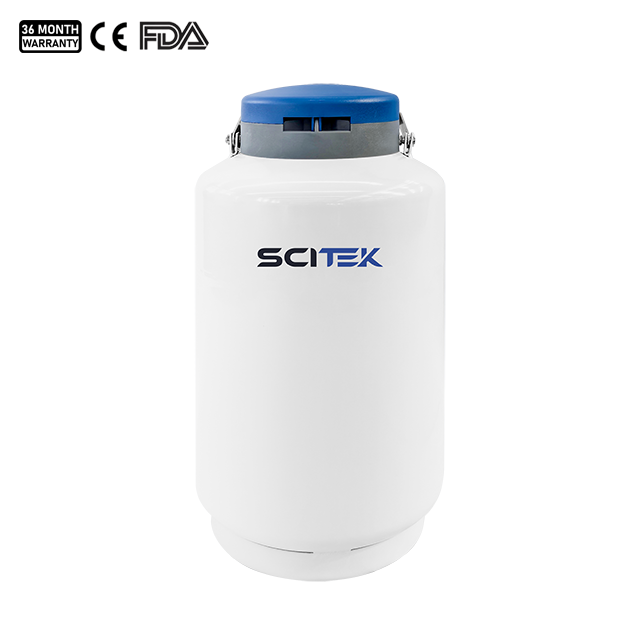

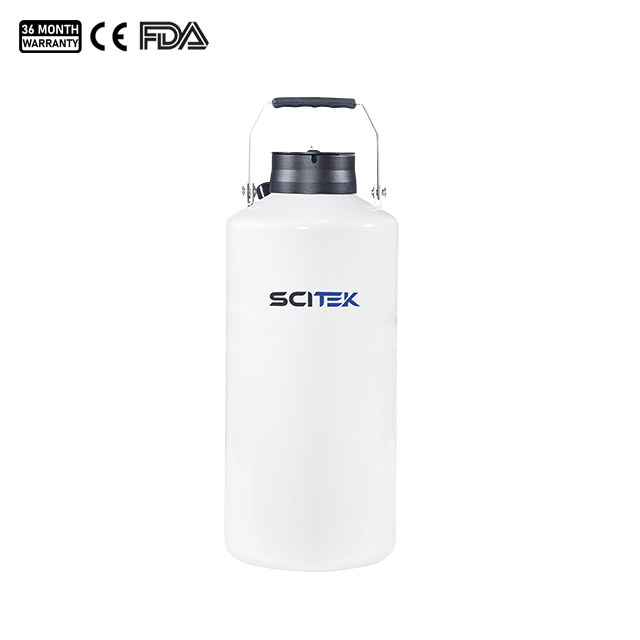

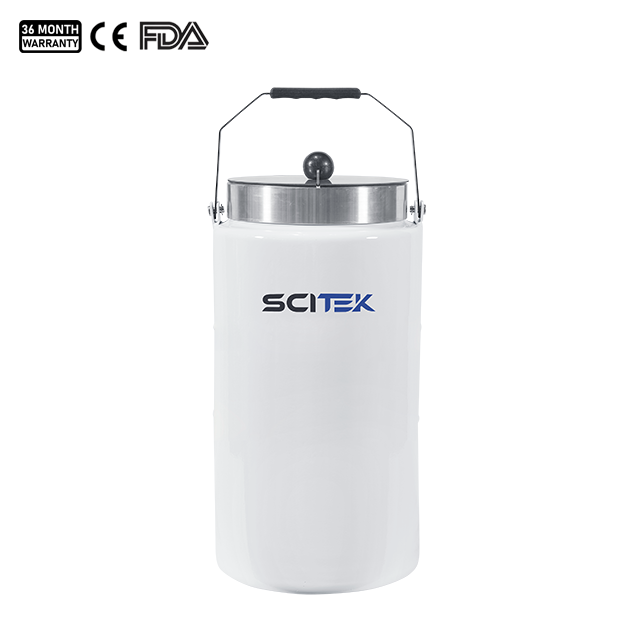

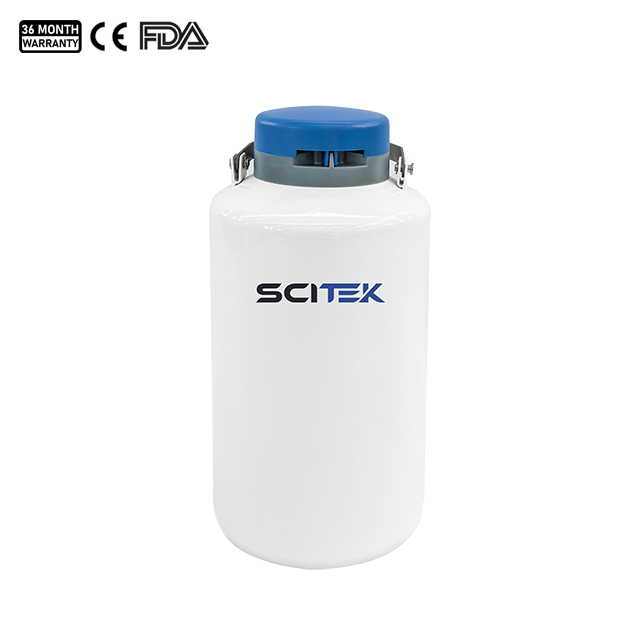

Model : LNC-015-30BD; LNC-3-30BD; LNC-4-70BD; LNC-6-50BD; LNC-6-80BD; LNC-6-190BD; LNC-10-80BD; LNC-10-125BD; LNC-15-216BD; LNC-25-216BD;
Capacity L : 1.5; 3; 4; 6; 10; 15; 25
Liquid nitrogen adsorption L : 0.6; 1.3; 1.8; 2.6; 2.4; 1.8; 5.8; 6; 6; 10
The air transport series is suitable for transporting samples in deep low-temperature environments (gas-phase storage, temperature below -190 ℃), which can avoid the danger of liquid nitrogen release during transportation, especially suitable for short-term air transport such as airplanes. There is a liquid nitrogen adsorbent inside, which can absorb and store liquid nitrogen, and even if the container is poured, there will be no liquid nitrogen overflow; There is also a special stainless steel mesh screen to separate the storage space from the liquid nitrogen absorber, which can prevent the liquid nitrogen absorber material from mixing into the freezer tube. It mainly suitable for laboratory users and users who require short-term transportation of small amounts of samples.
Dry Shipper Liquid Nitrogen Tank Feature:
Gas phase low-temperature storage, rapid liquid nitrogen filling, sturdy and durable aluminum structure, lockable lid
Dry Shipper Liquid Nitrogen Tank Specifications:
| Model |
LNC-015-30BD |
LNC-3-30BD |
LNC-4-70BD |
LNC-6-50BD |
LNC-6-80BD |
LNC-6-190BD |
LNC-10-80BD |
LNC-10-125BD |
LNC-15-216BD |
LNC-25-216BD |
| Capacity (L) |
1.5 |
3 |
4 |
6 |
6 |
6 |
10 |
10 |
15 |
25 |
| Liquid nitrogen adsorption (L) |
0.6 |
1.3 |
1.8 |
2.6 |
2.4 |
1.8 |
5.8 |
6 |
6 |
10 |
| Handle bucket size (mm) |
Ø25*120 |
Ø38*120 |
Ø63*276 |
Ø47*200 |
Ø70*276 |
139*139*56 |
Ø76*276 |
76*76*225 |
139*139*112 |
139*139*280 |
| Quantity of 2ml cryovials |
6 |
9 |
96 |
21 |
126 |
100 |
132 |
100 |
400 |
500 |
| Quantity of 25 compartment freezer box |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
4 |
N/A |
N/A |
| Quantity of 100 compartment freezing boxes |
N/A |
N/A |
N/A |
N/A |
N/A |
1 |
N/A |
N/A |
4 |
5 |
| Quantity of 50ml blood bags |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
| Quantity of 250ml blood bags |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
| Static evaporation rate L/day |
0.09 |
0.15 |
0.19 |
0.21 |
0.21 |
0.8 |
0.35 |
0.4 |
0.89 |
0.89 |
| Working days |
7 |
9 |
9 |
12 |
11 |
2 |
17 |
15 |
7 |
11 |
| Caliber(mm) |
35 |
50 |
70 |
50 |
80 |
190 |
80 |
125 |
216 |
216 |
| Overall height (mm) |
395 |
435 |
580 |
488 |
435 |
505 |
584 |
554 |
480 |
706 |
| External diameter (mm) |
180 |
224 |
224 |
300 |
300 |
254 |
300 |
300 |
396 |
396 |
| Empty weight (kg) |
1.8 |
3.3 |
5.5 |
5.5 |
5.5 |
6.5 |
7.5 |
8 |
11 |
12.5 |
| Full weight (kg) |
3 |
5.7 |
8.8 |
9.2 |
10.4 |
11.4 |
12.3 |
16.1 |
23.2 |
32.9 |
