Home-60°C Tuna Freezer II

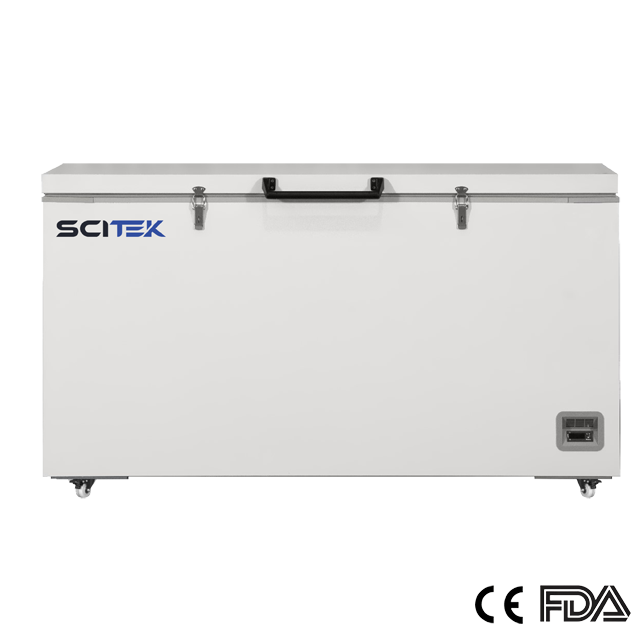

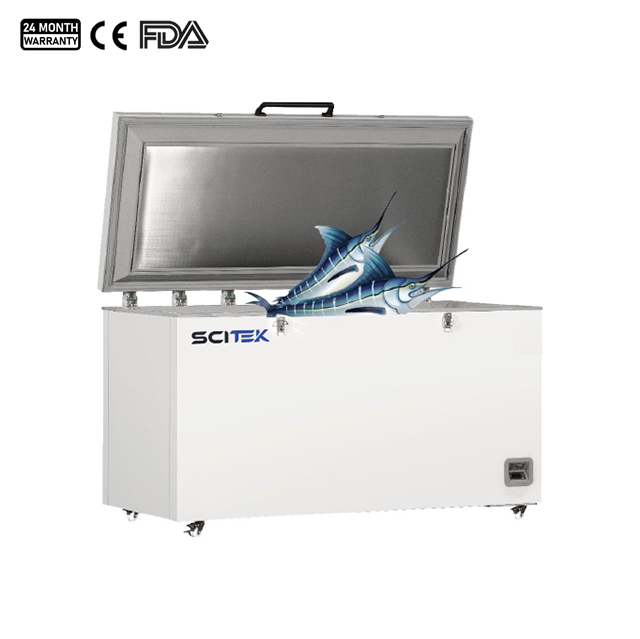

-60°C Tuna Freezer II
-60°C Tuna Freezer II
Model : FZ-60H110; FZ-60H490

Capacity (L) : 105 / 485
Internal Size (mm) : 480x380x665 / 1455x525x665
Temperature Range (℃) at RT.10~32℃ : -25~-60

This ultra low freezer is perfect for storing sensitive biological agents and food such as vaccines, viruses, tuna and more.
You can later choose whether you want a quote, or if you place a firm order.

Product Description

Ultra Low Freezer Specifications:

Model FZ-60H110 FZ-60H490
Capacity (L) 105 485
Size (WxDxH)(mm) Internal 480x380x665 1455x525x665
External 680x580x935 1670x810x930
Temperature Range (℃) at RT. 10~32℃ -25~-60 -25~-60
Sensor NTC PTC
Controller Microprocessor Microprocessor
Cooling System Refrigerant R4001 (CFC Free ) R4001 (CFC Free )
Defrost Manual Manual
Compressor (Qty) CUBIGEL/1 CUBIGEL/1
Display Digital display Digital display
Audible & Visible Alarm Standard High/Low temperature, sensor error, 12h power failure backup system(alarm)
High Ambient Temperature / /
Abnormal Voltage / /
Low Battery / /
Material Internal Stainless steel, grade 304
External Electro-galvanized steel with antimicrobial powder coating
Accessories Standard 25mm test hole, casters
USB Port / /
Chart Recorder / /
Data Logger / /
Remote Alarm Port / /
Back up System (CO₂/LN₂) / /
Shelves / Drawers (Qty) / /
Sound Emission (dB) 53 53
Electricity Voltage/Frequency AC110/220V±10%, 50/60Hz AC110/220V±10%, 50/60Hz
Consumption (W) 380 600
N.W./G.W. (Kg) 65/70 122/149
Shipping Size (WxDxH) (mm) 770x705x1090 1775x900x1050



Ultra Low Freezer Features:

  1. Microcomputer control, real-time temperature display, temperature with 0.1°C increment .
  2. High and low temperature alarm function, alarm temperature value can be set as required.
  3. Inner chamber temperature is adjustable; Alarm temperature could be customized as requirements.
  4. Built in adjustable stainless steel shelf, easy to use and to clean.
  5. Food grade stainless steel inner chamber, safe and secure.
  6. Heavy duty caster design, easy to move.
  7. Safety door lock is designed to prevent random opening.
  8. Wide voltage band design, suitable for 187V ~ 242V AC voltage.

Refrigeration system

  1. Ultra-thick foam layer and double-sealed door effectively protect freezer’s internal temperature.
  2. Cooling system is optimized for self-replication, and the imported compressor provides strong and efficient refrigeration capacity.
  3. German EBM fan, stable performance and low noise.

Safety system

  1. Audible and visible alarm: High and low temperature & sensor error alarm.
  2. Multiple protection functions: frequent start-up protection, refrigeration system keeps running in case of sensor failure.
