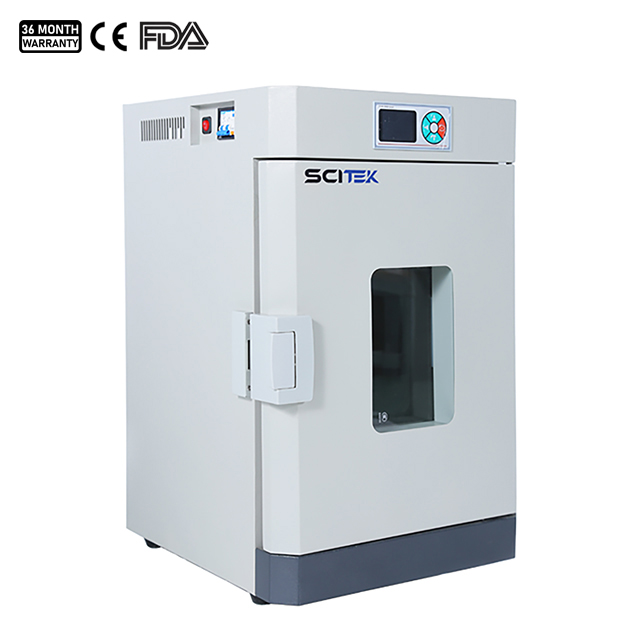

Drying Oven/Incubator(Double Use)

Home » Avik Product Catalogue » Drying Oven/Incubator(Double Use)

Model : DOI-30; DOI-50; DOI-70; DOI-140; DOI-240

Capacity : 30L / 50L / 70L / 140L / 240L
Circulation Mode : Forced convection
Temperature Range : Incubator: RT+5~80℃, Drying oven: 80~200℃
Timer : 0 – 9999min

This drying oven can also be used for the cultivation of organisms, providing a safe and ideal heating and drying solution for research, clinical or industrial needs.

You can later choose whether you want a quote, or if you place a firm order.

Product Description

Drying Oven/Incubator Specifications:

Model		DOI-30	DOI-50	DOI-70	DOI-140	DOI-240
Capacity(L)		30	50	70	140	240
Circulation		Forced convection
Size (WxDxH)	Internal(mm)	340×325×290	420×350×500	400×360×500	500×450×600	550×500×800
Size (WxDxH)	External(mm)	490×520×690	710×520×520	540×550×870	640×680×970	690×700×1140
Temperature	Range(℃)	Oven: 80-200
	Range(℃)	Incubator: RT+5-80
	Fluctuation(℃)	±0.5
	Resolution(℃)	0.1
	Uniformity(℃)	25%
	Sensor	PT100
Controller		PID
Display		LCD
Timer(min)		1 – 9999
Material	Internal	304 Stainless steel
Material	External	Electro-galvanized steel with antimicrobial powder coating
Shelves		2
Safety Device		Leakage protector/Over- temperature alarm
Electricity	Voltage/Frequency	AC 220/110 V, 50/60Hz
Electricity	Consumption(W)	550	850	1100	1500	2050
N. W./G.W.(kg)		40/47	42/45	55/75	70/85	85/110
Shipping Size (WxDxH)(mm)		680x580x870	810x640x600	670x660x1040	730x860x1080	780x920x1270
Optional		1. Independent temperature limiting controller 2. Intelligent LCD procedure temperature controller(Optional USB, RS485/232 and printer) 3. Test hole(mm): Ф25/50/80

Drying Oven/Incubator Features:

Large-screen LCD display with menu-type operation interface, real-time parameter display, simple and convenient operation, quickly set temperature and time parameters.
A new synthetic silicone sealing strip is used for the incubator’s sealing ring to prevent heat loss effectively.
Automatically adjust the control parameters according to the ambient temperature and load to achieve the optimal heating method and reduce energy consumption.
Adopts high-quality fan and large impeller fan, leads higher ventilation efficiency and better temperature uniformity.
Running function: Fixed value running, timing running, the screen displays “END” when the running time is completed, accompanied by a buzzer reminder.
Adjustable shelves with a minimum spacing of 30mm.
Built in observation window to make the objects in the chamber clear at a glance.
