Home-86°C Ultra Low Chest Freezer

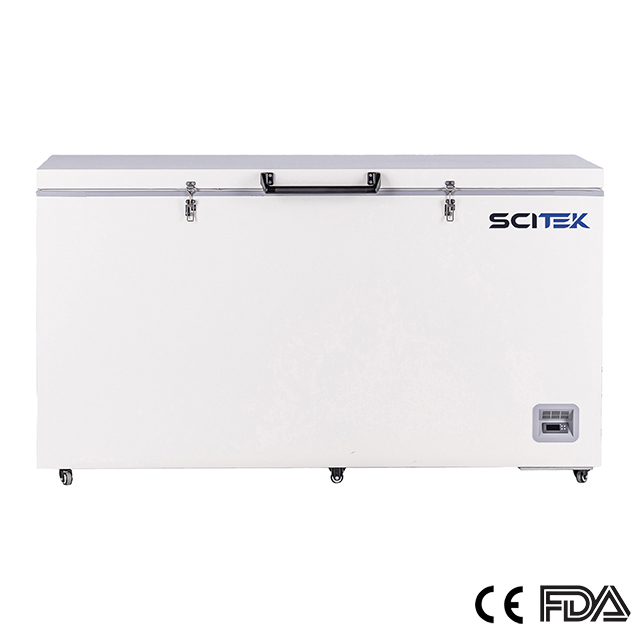

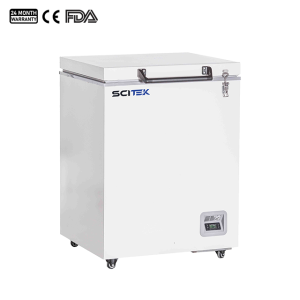

-86°C Ultra Low Chest Freezer
-86°C Ultra Low Chest Freezer-86°C Ultra Low Chest Freezer-86°C Ultra Low Chest Freezer
Model : UFZ-86H100; UFZ-86H490

Capacity (L) : 105 / 485
Internal Size (mm) : 480x380x665 / 1455.5×525.2×674
Temperature Range (℃) at RT.10~32℃ : -40~-86

Freestanding ultra cold freezer is perfect for small medical clinics, pharmacies and laboratories
You can later choose whether you want a quote, or if you place a firm order.

Product Description

Ultra Low Chest Freezer Specifications:

Model UFZ-86H100 UFZ-86H490
Capacity (L) 105 485
Size(WxDxH) (mm) Internal 480x380x665 1455.5×525.2×674
External 680x580x935 1695x840x962
Temperature Range (℃) at RT. 10~32℃ -40~-86 -40~-86
Sensor PTC PTC
Controller Microprocessor Microprocessor
Cooling System Refrigerant R4001 (CFC Free) R4001 (CFC Free)
Defrost Manual Manual
Compressor (Qty) CUBIGEL/1 SECOP/1
Display Digital display Digital display
Audible & Visible Alarm High/Low temperature, sensor error, 12h power failure backup system(alarm)
Material Internal Stainless steel, grade 304
External Electro-galvanized steel with antimicrobial powder coating
Accessories Casters, 25mm test hole
Shelves / Drawers (Qty) / /
Optional Frozen Racks (Qty) Racks 2 (11x) + 2 (6×1) 24 (11×1) + 6 (6×1)
Boxes (2 Inches) 34 300
Samples (2ml) 3400 30000
Sound Emission (dB) 50 54.5
Electricity Voltage/Frequency AC110/220V±10%, 50/60Hz
Consumption (W) 500 670
N.W./G.W. (kg) 65/70 130/150
Shipping Size(WxDxH) (mm) 770x705x1090 1765x900x1060





Ultra Cold Freezer Features:

  1. Accurate Microprocessor-controlled system ensures temperature rage of -86℃ to -40℃ for chamber space with 1℃ increment.
  2. Powerful cooling system with unique design supports rapidly temperature decrease.
  3. Chamber material made by 304 stainless steel for friendly cleaning.

Reliability

  1. Audible buzzer and visible flashing temperature alarm system for temperature high/low alarm, sensor malfunction alarm
  2. Safety password protected control panel prevents unauthorized system modification.

Reliability

  1. High-density layer of insulation foam improves heat preservation capability.
  2. Optimized refrigeration system with self-cascade technology to cool faster while consuming less power.
