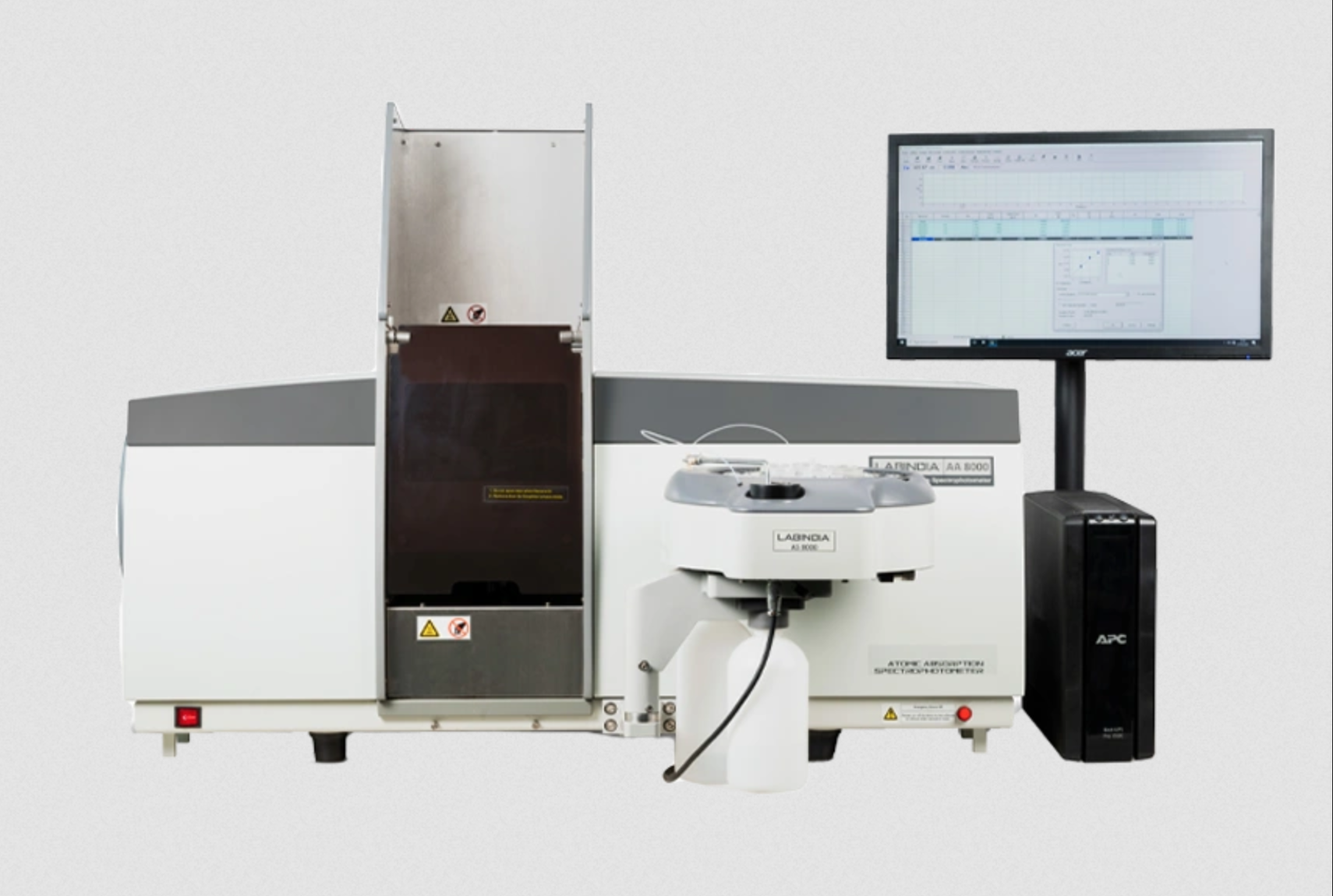

AA8000 Atomic Absorption Spectrophotometer
The AA8000 Atomic Absorption Spectrophotometer is a true double beam with sealed and vibration free optical system, having Czerny- Türner Monochromator with Holographic grating (4500 lines/mm). It’s a high-performance automated instrument designed to meet the requirements of the modern laboratory. It is used for a wide range of applications including: Agriculture, Soil, Environmental, Food, Metal, Mining, Petrochemical, Clinical, Pharmaceutical.
You can later choose whether you want a quote, or if you place a firm order.
Product Description
FEATURES:
The Instrument is Available in Three Configurations:
- Equipped with Flame Atomiser with options for three flame configurations:
- Air/Acetylene as standard configuration
- N,0/Acetylene or Air/LPG (Natural Gas) as option.
- All three flame configurations are offered with coded burner for full safety and protection.
- Equipped with Integrated Flame and Graphite Atomiser with easy change-over by simple selection in the AA-Win Software.
- Equipped with Graphite Furnace Atomiser. The Graphite head is fixed into the optical path to maximise performance and eliminate drift. The transversely heated graphite tube is efficiently heated and cooled due to precision feedback system. Option available to upgrade to Graphite camera.
- PC system built into the instrument as standard. Windows professional platform with latest version operating system.
- Full software control of the instrument and autosampler.
- Pre-installed AA-Win Software GLP and 21-CFRPart 11 Compliant, export of data to other applications and integrated QC Protocol.
- Automatic 8 lamp turret controlled and optimized by the AA-Win software.
- Automatic alignment and optimization of energy using coded lamps & built-in power supply.
- GLP compliant software is now available for all AA8000 Configurations.
- D2 lamp or Self reversal background systems.
- High sensitivity absorbance better than 0.9abs for 5ppm Cu
- A universal autosampler is available which can be used for flame as well as graphite furnace system with Auto Dilution facility.
- Absorption and Emission modes are standard as well as peak height, peak area, sequential and manual integration modes.
- Auto flame Ignition. Nebulizer Interlock for gas leakage etc.
- Spray chambers chemically inert material capable of handling all corrosive materials.
Inductively Coupled Plasma Optical Emission Spectrometer
(ICP-OES) 5000 DV
LABINDIA
TOP SOODY
FEATURES:
- Optical system: Thermostatic 3D optical system has a few reflections and a low optical energy loss. All optical elements are sealed in the thermal balancing optical chamber kept at the constant temperature of 36°C=0.1°C; argon removing.
- Incorporates a large area array CCD sensor with excellent low noise and deep ultraviolet response.
- Wavelength range: 160 nm – 900 nm, with full wavelengths covered
- Focal length =380 mm, Echelle grating: 87 L/mm
- Axial, Radial and dual observation technology with vertical torch mount
- Full-spectrum real-time calibration technique (FSC) to ensure long-term stability and eliminate the effect of the spectral drift. Realtime drift correction technology corrects the spectral positions.
- Element Library >50000 Spectral Lines showing inter-element corrections (lEC’s) and interferences.
- The software design is in compliance with the 21 CFR Part 11- regulation of electronic signature; the software provides the three-level administrative authority and the function of audit trailing, conforming to the regulation requirements, such as 3Q certification
- Optical Resolution: ≤ 0.007nm @ 200 nm
- RF Generator: Solid State.
- RF Frequency 27.12MHz
- Output Power Range :500 – 1600 Watts
• Output Power Control: Automatic
