Product Description

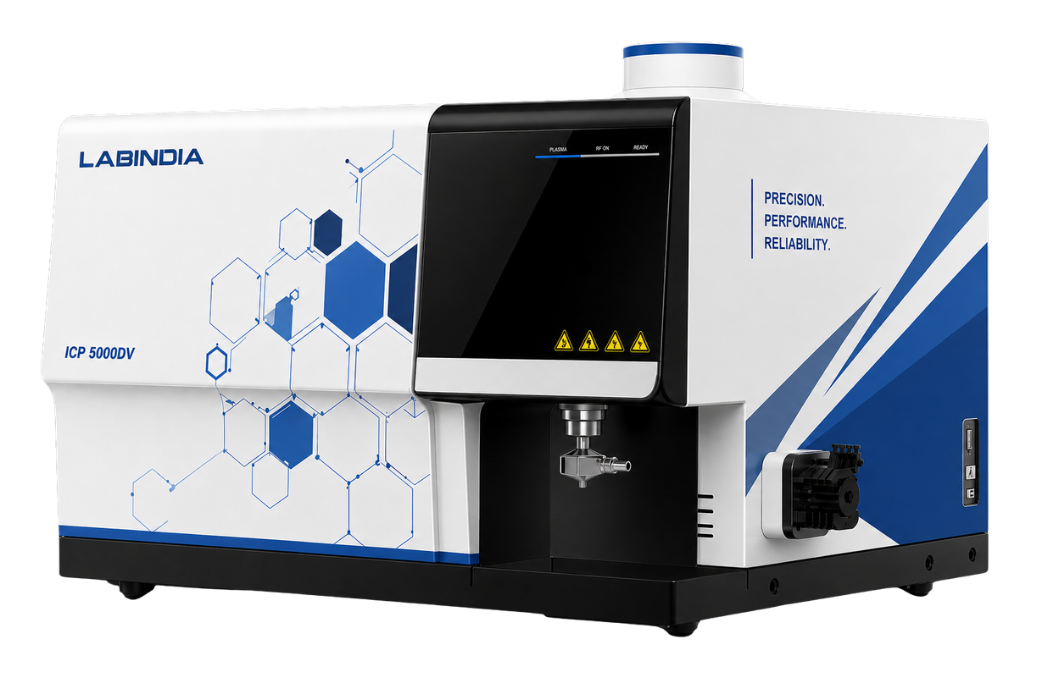

The ICP 5000 DV is equipped with a large-area CCD sensor covering a spectral range of 165–900 nm, ensuring high resolution and precision in elemental analysis. Its advanced optical system enhances deep ultraviolet sensitivity, allowing superior detection of trace elements while minimizing spectral interference. The system’s thermo-electrically cooled CCD sensor reduces thermal noise, resulting in more stable and accurate measurements. Additionally, the high-speed simultaneous detection of up to 72 elements enables rapid and efficient analysis across various industries.

FEATURES:

• Optical system: Thermostatic 3D optical system has a few reflections and a low optical energy loss. All optical elements are sealed in the thermal balancing optical chamber kept at the constant temperature of 36°C=0.1°C; argon removing.
• Incorporates a large area array CCD sensor with excellent low noise and deep ultraviolet response.
• Wavelength range: 160 nm – 900 nm, with full wavelengths covered
• Focal length =380 mm, Echelle grating: 87 L/mm
• Axial, Radial and dual observation technology with vertical torch mount
• Full-spectrum real-time calibration technique (FSC) to ensure long-term stability and eliminate the effect of the spectral drift. Realtime drift correction technology corrects the spectral positions.
• Element Library >50000 Spectral Lines showing inter-element corrections (lEC’s) and interferences.
• The software design is in compliance with the 21 CFR Part 11- regulation of electronic signature; the software provides the three-level administrative authority and the function of audit trailing, conforming to the regulation requirements, such as 3Q certification
• Optical Resolution: ≤ 0.007nm @ 200 nm
• RF Generator: Solid State.
• RF Frequency 27.12MHz
• Output Power Range :500 – 1600 Watts

• Output Power Control: Automatic
