Automatic Glassware Washer

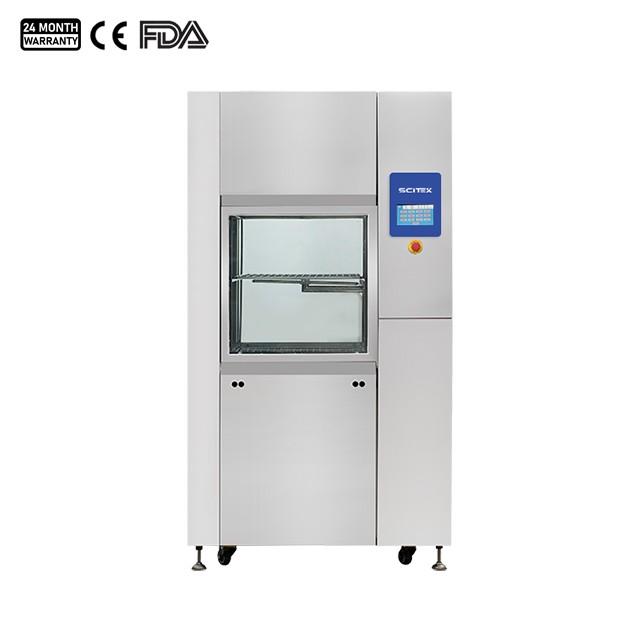

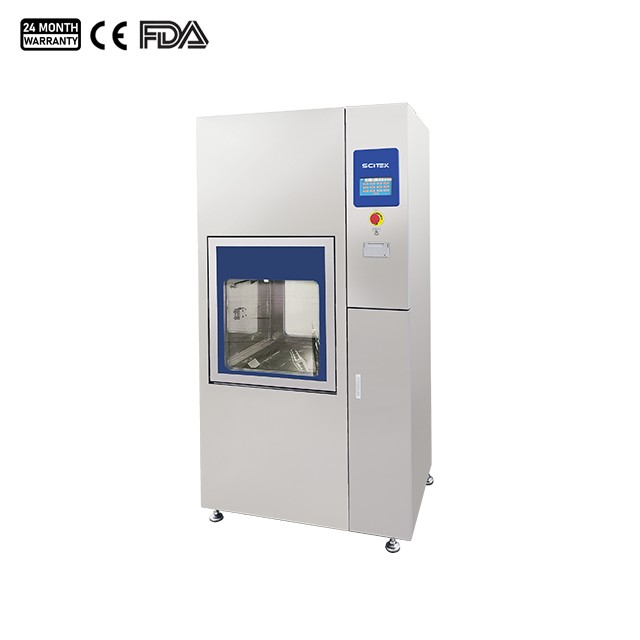

Model : WD-220M; WD-320M; WD-420M

Capacity(L) : 220 / 320 / 420

Display : 7inch LCD touch screen
Standard Program : 20
Self-defined Program : 100
Permission Management System : Three level

You can later choose whether you want a quote, or if you place a firm order.

Product Description

This laboratory glassware washer is a sophisticated piece of equipment designed to simplify and enhance the cleaning of glassware used in scientific experiments and research. It offers an efficient, automated wash cycle that saves time, ensures thorough cleaning, and reduces the risk of cross-contamination. This medical glassware washer has a precise control system that provides consistent water temperature and detergent delivery for optimal results.

Automatic Medical Glassware Washer Feature:

An automatic glassware washer improves the lab’s hygiene and safety and increases productivity by freeing researchers from manual cleaning tasks. Here are some of its features:

Front and back two toughened glass doors, prevent cross infection.
Efficiently removes organic residues and metal ions through automated high-temperature, high-pressure water cleaning.
Compact and lightweight design with corrosion-resistant stainless steel construction, suitable for small laboratories.
Microcomputer control system with LCD screen for easy operation and customization of cleaning modes and parameters.
Efficient cleaning with a powerful imported pump, even water distribution, secure sealing, and rotating spray arms for thorough cleaning.
Secure door lock with emergency opening, comprehensive protection with alarms, and English prompts for safe operation.

Automatic Glassware Washer Specification:

Model			WD-220M	WD-320M	WD-420M
Capacity(L)			220	320	420
Display			7inch LCD touch screen
Standard Program			20
Self-defined Program			100
Data Files			Cleaning program files, Cleaning record files, Monitor files
Storage			Yes
Permission Management System			Three level
Printer			Yes
Drying	Drying System		Heat exchange system
	Drying Time Range		0 to 30 mins
	Drying Temp Range		RT to 120℃
	Drying Method		Hot Air Drying
Water inlet pipe	Quantity		2
	Length		3m
	Material		PVC
	Flow Rate		800L/min	1000L/min	1000L/min
	Consumption		0.75kW	1.5kW	1.5kW
Pipeline Pressure Monitoring			Yes(Optional)
Structure	Material	External	304 stainless steel
	Material	Cleaning Chamber	316stainless steel
	Door		Dual-Point Electronic Control Door Lock
	Foot		Four universal casters
Cleaning Layer			4 layer	5 layer	5 layer
Air Heating			3.6kW	3.6kW	5kW
Power Supply			220/380V, 50/60Hz
Consumption (Max)			16kW	17kW	17kW
Internal Size(W×D×H)(mm)			600x629x830	600x629x990	688x700x703
External Size(W×D×H)(mm)			960×805×1865	960×805×2025	1110×950×2085
Shipping Size(W×D×H)(mm)			1100×950×2150	1100×950×2180	1230×1070×2290
N.W./G.W. (kg)			330/420	350/440	370/460
