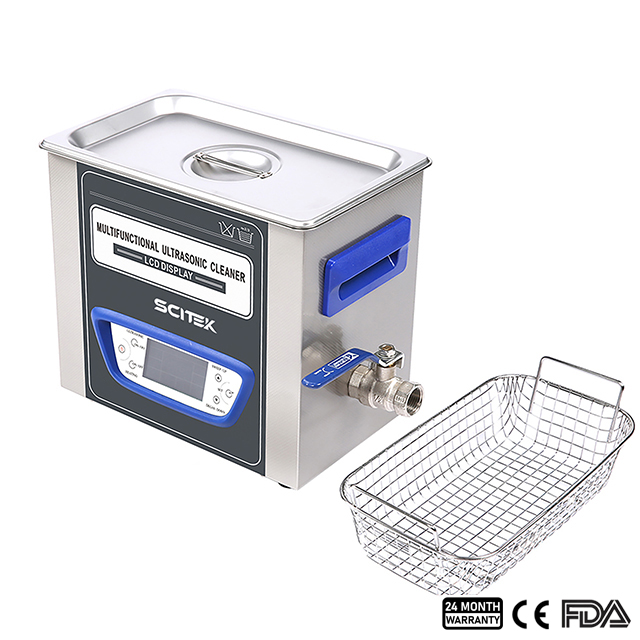

Model: UC-M Series
Ultrasonic Freq : 40 kHz
Temperature Setting-Max : 60 ℃
Heating Power-Max : 100/200/500/1000 W
With a choice of ultrasonic frequencies and a wide range of additional options, the Multifunctional Ultrasonic Cleaner can cope with coarse to fine cleaning tasks.
The UC-M series of multifunctional ultrasonic cleaners offer a wide range of cleaning functions including spray cleaning, ultrasonic, agitation and more. They are suitable for various pressures and temperatures with ultrasonic defoaming function.
Multifunctional Ultrasonic Cleaner Specification:
| Model |
UC-M1 |
UC-M2 |
UC-M3 |
UC-M5 |
UC-M4 |
UC-M6 |
UC-M10 |
UC-M15 |
UC-M20 |
UC-M25 |
UC-M30 |
UC-M45 |
| Tank Capacity (L) |
1.3 |
2 |
3.2 |
4.8 |
4.5 |
6.5 |
10 |
1
5 |
20 |
22 |
30 |
45 |
| Transducer Qty (Pcs) |
1 |
1 |
2 |
2 |
3 |
3 |
4 |
6 |
6 |
8 |
10 |
12 |
| Ultrasonic Freq (kHz) |
40 |
| Temperature setting-Max |
60 ℃ |
| Drain Valve |
No |
No |
Yes |
| Time Setting (min) |
1-99 |
| Cleaning Basket |
Yes |
| Carrying Handle |
No |
No |
Yes |
| Power Supply |
AC 220/110 V, 50/60 Hz |
| Ultrasonic Power(W)-Max |
70
(10%-100%
adjustable) |
120
(10%-100%
adjustable) |
180
(10%-100% adjustable) |
240
(10%-100% adjustable) |
360
(10%-100% adjustable) |
480
(10%-100% adjustable) |
600
(10%-100%
adjustable) |
720
(10%-100% adjustable) |
| Heating Power(W)-Max |
100 |
200 |
500 |
1000 |
| Chamber Size (W×D×H)(mm) |
150×135×65 |
150×135×100 |
240×135×100 |
240×135×150 |
300×150×100 |
300×150×150 |
300×240×150 |
330×300×150 |
330×300×200 |
500×300×150 |
500×300×200 |
500×300×300 |
| Sizes (W×D×H)(mm) |
180×165×205 |
180×165×240 |
265×165×235 |
265×165×285 |
330×180×260 |
330×180×310 |
330×270×310 |
360×330×330 |
360×330×380 |
530×330×340 |
530×330×390 |
530×330×490 |
| Shipping Size (W×D×H)(mm) |
520×510×310 |
520×510×335 |
730×520×340 |
730×520×400 |
430×350×290 |
420×260
×390 |
470×350×380 |
500×400
×410 |
500×400
×455 |
690×410
×420 |
690×410
×470 |
690×410
×590 |
| Packing Quantity |
4pcs |
4pcs |
4pcs |
4pcs |
1pc |
1pc |
1pc |
1pc |
1pc |
1pc |
1pc |
1pc |
| N.W./G.W. (kg) |
2.6/13 |
2.8/14 |
3.8/19 |
4.1/21 |
4.6/6 |
4.6/7 |
7.8/10 |
10/13 |
10.5/13 |
13/16 |
15/18 |
19/23 |
Multifunctional Ultrasonic Cleaner Advantage:
- Power and time are adjustable, temperature up to 60℃, time setting 1-99 mins.
- Ultra-low noise.
- High-definition display shows accurate time, power and temperature.
- Ergonomically designed carrying handle for easy mobility.
- Degassing and sweeping function.
- Long standby time with optional sleep mode for more energy saving.
- Memory function can automatically save historical parameters.
