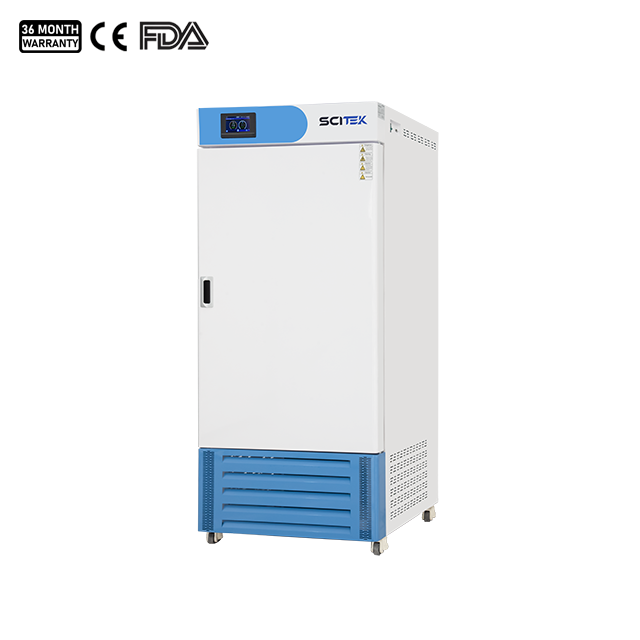

Constant Temperature & Humidity Incubator

Home » Avik Product Catalogue » Constant Temperature & Humidity Incubator

Model : ICB-80THP; ICB-150THP; ICB-250THP; ICB-350THP; ICB-460THP

Capacity(L) : 80/150/250/350/460
Circulation Mode : Forced convection
Range (℃) : 0 ~ 65
Fluctuation (℃) : High Temp.: ±0.5°C; Low Temp.:±1°C

You can later choose whether you want a quote, or if you place a firm order.

Constant Temperature & Humidity Incubator Features:

304 Stainless steel chamber, semi-circular inner corner, shelves can be freely loaded and unloaded, easy to clean.
The shell is treated with electrostatic spraying technology, which is corrosion-resistant and durable.
Large touch screen, 99×5-segment program control, with temperature curve, data storage function.
Inverter compressor, balanced control of cooling and heating, small temperature fluctuation, precise temperature control.
Double-layer door structure, the inner door uses tempered glass for easy observation of samples, and the outer door uses magnetic strips for good sealing and heat preservation performance.
Intelligent defrosting, with compressor overheat protection, instrument failure, automatic water inlet and water shortage alarm protection, etc.
Built-in humidification system, imported humidity sensor components, automatic humidity control, good stability and high precision.

Model		ICB-80THP	ICB-150THP	ICB-250THP	ICB-350THP	ICB-460THP
Capacity(L)		80	150	250	350	460
Circulation Mode		Forced convection
Size (WxDxH)(mm)	Internal	400x400x500	400x500x750	500x550x910	600x600x1000	650x650x1100
Size (WxDxH)(mm)	External	625x550x1065	600x660x1360	720x710x1570	800x760x1610	850x810x1715
Temperature	Range (℃)	0 ~ 65
	Fluctuation (℃)	High Temp.: ±0.5°C; Low Temp.:±1°C
	Resolution (℃)	0.1
	Uniformity (℃)	±1
	Sensor	PT100
Humidity	Rang	30%~95%RH
	Stability	±3%RH
	Method	Internal
	Sensor	High precision anti-condensation
Controller		PID
Display		Large high definition LCD
Timer		0-99h59min/99*5Segments (with timing waiting function)
Material	Internal	304 stainless steel
Material	External	Cold rolled steel electrostaticspraying exterior
Test Hole		Standard Φ43mm test hole on the left side
External Socket		Universal socket(one)
Refrigerant		R134a (CFC free)
Defrosting Mode		Automatic
Safety Device		Over temperature, over humidity, water shortage alarm
Power Supply		AC 220/110V, 50/60Hz
Shelves		2
Consumption(W)		600	800	1000	1200	1400
G.W. (kg)		61	88	112	139	168
Shipping Size (WxDxH)(mm)		690x620x1150	770x735x1520	820x800x1660	870x860x1800	990x1040x1970
Standard		USB port for storing and exporting data
Optional		RS485 interface, printer and spare shelf
