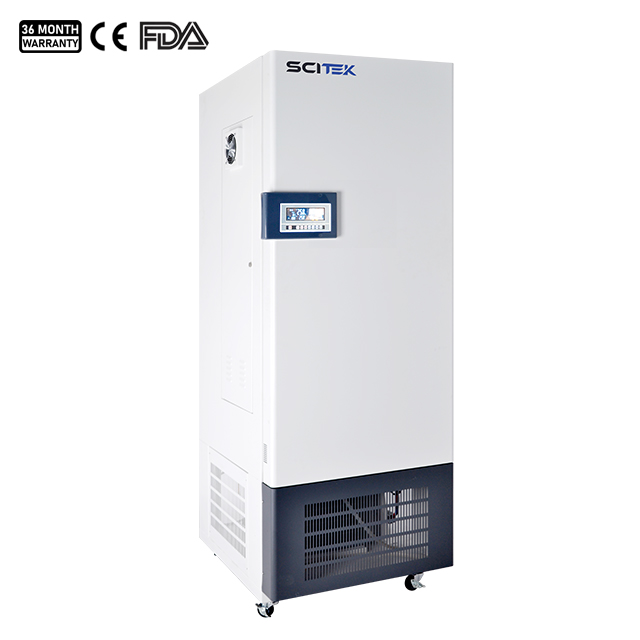

Home » Avik Product Catalogue » Vertical Artificial Climate Incubator 250L/300L/400L/500L
Model : ICB-250CY; ICB-300CY; ICB-400CY; ICB-500CY
Capacity : 250L / 300L/400L/500L
Illuminance (Lx) : 0~6000, 6 levels adjustable
Circulation Mode : Forced convection
Temperature Range : With lighting: 10~50°C; without lighting: 5~50°C
Climate Incubator Feature:
- The SUS304 stainless steel inner container features a curved design for easy cleaning.
- A fan creates micro-air circulation for improved temperature uniformity.
- A microcomputer-based intelligent P.I.D. temperature controller provides precise temperature control.
- It features parameter memory and automatic resumption of operation upon incoming power.
- Casters for easy mobility.
- It uses a high-efficiency, low-consumption compressor and a fluorine-free, environmentally friendly refrigerant.
- A built-in water tank and automatic water refill port.
- When humidification water is depleted, the humidifier heater automatically disconnects from the power supply.
Climate Chamber Specifications:
| Model |
ICB-250CY |
ICB-300CY |
ICB-400CY |
ICB-500CY |
| Capacity(L) |
250 |
300 |
400 |
500 |
| Circulation Mode |
Forced convection |
| Size(WxDxH) |
Internal (mm) |
470×449×1178 |
490×464×1278 |
560×600×1198 |
660×650×1198 |
| External (mm) |
672×792×1825 |
691×807×1925 |
764×932×1860 |
864×982×1860 |
| Temperature |
Range |
With lighting: 10~50°C; without lighting: 5~50°C |
| Fluctuation |
±0.5°C |
| Resolution |
0.1℃ |
| Uniformity |
±2°C |
| Sensor |
PT100 |
| Humidity |
Range |
With lighting: 50%~80%RH (18~45°C); without lighting: 50%~90%RH (15~45°C) |
| Resolution |
1%RH |
| Illumination(Lx) |
0~6000, 6 levels adjustable |
| Light Source/Lighting Method |
LED, 6500K color temperature / 2 sides |
| Timer |
0~99hrs |
| Timer |
1~9999min (Optional 30×segments×100cycles) |
| Material |
Internal |
SUS304 Stainless steel |
| External |
Cold rolled steel electrostatic spraying exterior |
| Shelves |
3pcs, per shelf loading is 15kg |
| Internal Socket |
Optional |
| Refrigerant |
R134a (CFC free) |
| Consumption(W) |
2400 |
2900 |
3400 |
3900 |
| Working Environment Temperature |
10~30°C |
| Power Supply |
AC 110/220V, 50/60Hz |
| G.W.(kg) |
176 |
188 |
218 |
286 |
| Shipping Size (W×D×H) (mm) |
750×960×1960 |
770×970×2090 |
850×1050×2020 |
1060×1180×2020 |
| Safety Device |
Over temperature alarm, temp probe damage alarm, humidity probe damage alarm |
| Optional |
Independent external temperature protection device; RS485 communication serial port; RS485 to USB adapter interface; micro thermal printer or dot matrix printer. |
