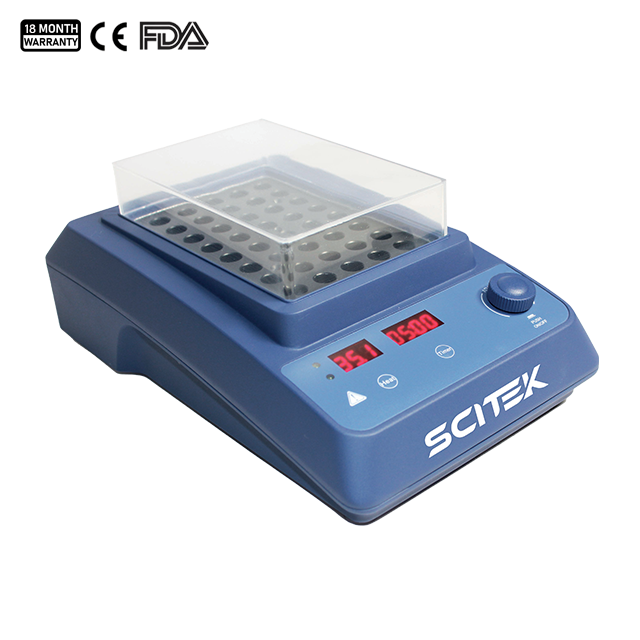

Model : DB-120S
Display : LED
Temperature Setting Range (℃) : 25~120
Temperature Range : RT.+5~120°C
Temperature Control Accuracy (At 37°C) : ± 0.5°C
Size(W×D×H)(mm) : 370x280x180
The dry bath is suitable for everyday use in the laboratory and is inexpensive and easy to operate.
Warranty Period
2 years standard warranty period except for Bsc hazard is 3 year warranty
2 years standard warranty period except for Bsc hazard is 3 year warranty
You can later choose whether you want a quote, or if you place a firm order.
Product Description
Dry Bath Specifications:
| Model | DB-120S | ||
|---|---|---|---|
| Functions | Heating | ||
| Temperature Setting Range (℃) | 25~120 | ||
| Temperature Range | RT.+5~120°C | ||
| Temperature Control Accuracy (At 37°C) | ± 0.5°C | ||
| Temperature Uniformity (At 37°C) | ± 0.5°C | ||
| Timer | 0~99h30min | ||
| Display | LED | ||
| Poer Supply | AC220/110V, 50/60Hz | ||
| Consumption | 160W | ||
| Size(W×D×H)(mm) | 370x280x180 | ||
| Shipping Size(W×D×H)(mm) | 510x370x280 | ||
| N.W./G.W. (kg) | 3/5 | ||
| Optional blocks | |||
| Cat. No. | Block types | Capacity | Diameter |
| Depth | |||
| Standard: 18900218 Thin: 18900274 |
  |
54×0.2 mL | 6.4 mm 15 mm |
| Standard: 18900219 Thin: 18900275 |
 |
40×0.5 mL | 8.2 mm 26.4 mm |
| Standard: 18900253 Thin: 18900276 |
 |
40×1.5 mL | 11 mm 34.7 mm |
| Standard: 18900220 Thin: 18900277 |
40×2 mL | ||
| Standard: 18900221 |  |
28×5/15 mL | 17 mm 48 mm |
| Standard: 18900546 |  |
45×5 mL blood collection tube | 13.5 mm 48 mm |
| Standard: 18900222 |  |
8×50 mL | 29.8 mm 48 mm |
| Standard: 18900224 Thin: 18900278 |
 |
18×0.2mL+18×0.5mL
+18×1.5/2mL |
\ |
| Standard: 18900223 Thin: 18900279 |
 |
96 or 284 well microplate | \ |
| Thin: 18900504 |  |
0.2mLx8PCR strips or 0.2mLx96 PCR microplate | \ |
| Thin:18900523 |  |
Two-in-one block, bead bath/water bath | \ |
Economical Dry Bath Feature:
- Wide range of temperature control up to 120°C to meet a wide range of experimental needs
- Timer controls up to 99+ hours; users can pre-set the time without continuously monitoring the equipment, improving the convenience and efficiency of experiments.
- Various types of optional blocks are available to provide highly accurate temperature control, ensuring the efficiency and accuracy of experiments.
- Overheat protection automatically stops heating when the temperature exceeds the set range, minimizing accidents during experiments and protecting the integrity of the samples and the accuracy of the results.
- Lid protection prevents sample spillage.
- Insulation function ensures the stability and repeatability of the samples during the experiment.
