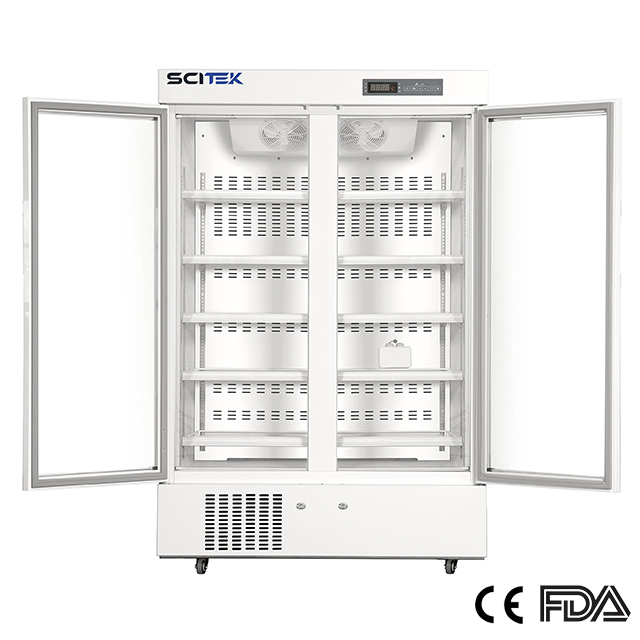

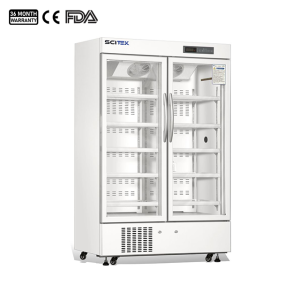

Double Door Laboratory Refrigerator
Double Door Laboratory Refrigerator

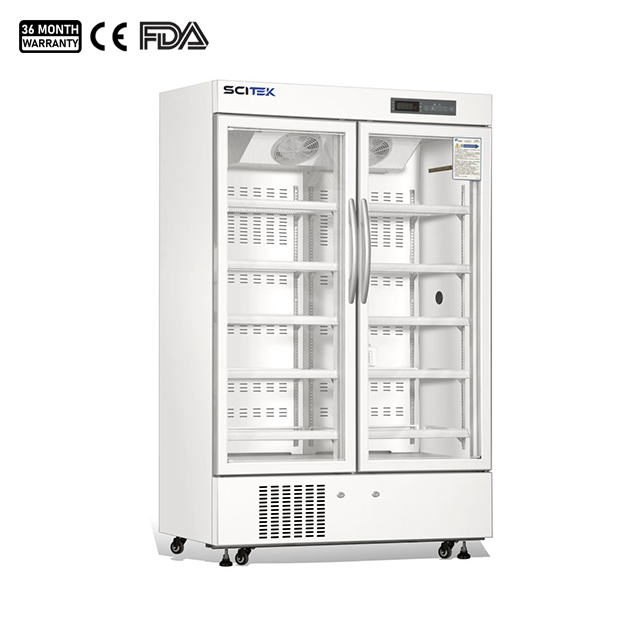

Model : MR-5V660

Capacity (L) : 656 / 1006 / 1500
Internal Size : 1100×454×1325 / 1100×684×1325 / 1680×595×1312
Shelves / Drawers (Qty) : 10 Shelves / 10 Shelves / 12 Shelves
Temperature Range (℃) at RT.10~32℃ : 2~8(Optional 2~10 ; 2~14)

High performance pharmaceutical/laboratory refrigerators are designed for the most rigorous life science research applications.
You can later choose whether you want a quote, or if you place a firm order.

Product Description

Double Door Laboratory Refrigerator Specifications:

Model MR-5V660 MR-5V1000 MR-5V1500
Capacity (L) 656 1006 1500
Size (WxDxH)(mm) Internal 1100×454×1325 1100×684×1325 1680×595×1312
External 1240×630×1895 1220×860×1885 1800×775×1965
Temperature Range (℃) at RT.10~32℃ 2~8(Optional 2~10; 2~14) 2~8(Optional 2~10; 2~14) 2~8(Optional 2~10; 2~14)
Sensor NTC NTC NTC
Controller Microprocessor Microprocessor Microprocessor
Cooling System Refrigerant R290 (CFC Free) R290 (CFC Free) R134a (CFC Free)
Defrost Auto Auto Auto
China Compressor Qty 1 1 1
Display Digital display Digital display Digital display
Audible & Visible Alarm Standard High/low temperature, power failure, thermostat failure, door ajar
Power Failure Backup System (Alarm) 8h 8h 8h
Material Internal Color sprayed steel 304 stainless steel
External Color sprayed steel 304 stainless steel
Accessories USB Port Optional Optional Optional
Casters Standard Standard Standard
Chart Recorder Optional Optional Optional
Data Logger Optional Optional Optional
Remote Alarm Port Optional Optional Optional
Test Hole (Qty) / Φ (mm) 1/25mm 1/25mm Optional
Shelves / Drawers (Qty) 10 Shelves 10 Shelves 12 Shelves
Sound Emission (dB) 52 53 55
Electricity Voltage / Frequency 220/50Hz/60Hz, 110/60Hz
Consumption 403W/2.39 400W/2.15 1040W/5.4
N.W./G.W. (Kg) 166/184 189/250 245/280
Shipping Size (WxDxH) (mm) 1280x670x1950 1330x970x1250 1940×880×2035

Double Door Laboratory Refrigerator Features:

  1. Forced-air cooling system with electrical heat compensation controlled by microprocessor.
  2. Auto-defrost system ensure no moisture on cooling surface.
  3. Hollow Insulation designed double-layer toughened glass door.
  4. Clear LED screen and control panel support easy display and operation.
  5. Leveling feet for easy fixation.

Reliability

  1. Lockable doors and password protected microprocessor parameter setting.
  2. Build-in backup battery up to 8 hours to display temperature and operate audible and visual alarm systems.
  3. Inner doors monitor to turn on/off cooling fan to prevent cold air from leaking out.
  4. Audible buzzer and visible flashing temperature alarm system for High/low temperature, power failure, voltage abnormal, door ajar, backup battery.
  5. Separated inner acrylic doors ensure less affection on each space when the other door opened.

Ergonomic Design

  1. Safety lock prevents unauthorized access.
  2. Detachable and separated basket for maximum safety storage and use.
  3. Automatic ON/OFF light also controlled from control panel.
  4. Standard 25mm test hole for connecting temperature monitoring systems.
  5. Lockable universal castor wheels.
  6. 5 adjustable steel wire shelves for easy storing.
