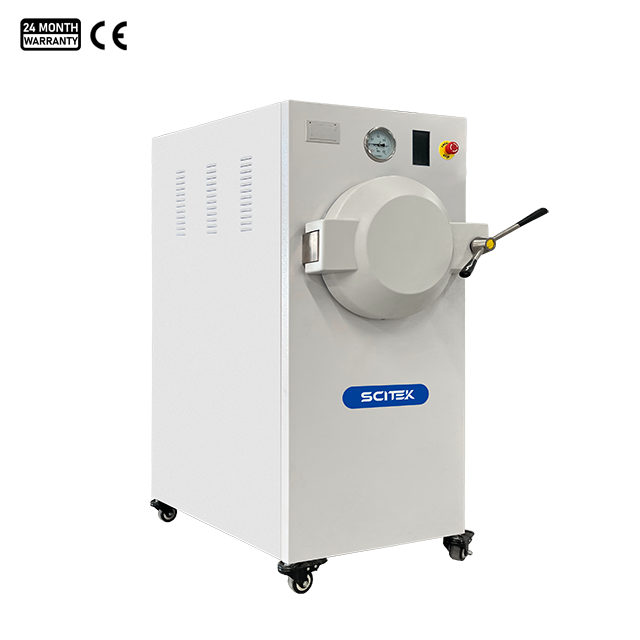

Horizontal Pulse Vacuum Autoclave 60-450L

Home » Avik Product Catalogue » Horizontal Pulse Vacuum Autoclave 60-450L

Model : ST-H60PV; ST-H80PV; ST-H100PV; ST-H135PV; ST-H150PV; ST-H185PV; ST-H200PV; ST-H300PV; ST-H450PV

Capacity (L) : 60 / 80 / 100 / 135 / 150 / 185 / 200 / 300 / 450
Chamber Size(mm) : Ø386×500 / Ø386×700 / Ø386×950 / Ø500×700 / Ø500×780 / Ø500×950 / Ø500×1000 / Ø650×950 / Ø650×1360
Sterilization Temperature (℃) : 105~136
Max. Sterilization Pressure (Mpa) : 0.23
Drying Function : YES

The horizontal pulse vacuum autoclave provides more efficient vacuum degassing with precise control of temperature, pressure and time to ensure safe and effective sterilisation.

You can later choose whether you want a quote, or if you place a firm order.

Product Description

Horizontal Pulse Vacuum Autoclave Specifications:

Model	ST-H60PV	ST-H80PV	ST-H100PV	ST-H135PV	ST-H150PV	ST-H185PV	ST-H200PV	ST-H300PV	ST-H450PV
Capacity	60L	80L	100L	135L	150L	185L	200L	300L	450L
External Size (WxDxH)(mm)	985x600x1450	985×600 x1450	1200×600 x1450	1000×710 x1550	1330×710 x1550	1250×710 x1550	1320×710 x1550	1350×900 x1750	1750×900 x1750
Chamber Size (ØxH)(mm)	Ø386×500	Ø386×700	Ø386×950	Ø500×700	Ø500×780	Ø500×95	Ø500×1000	Ø650×950	Ø650×1360
Chamber Material	SUS304
Sterilization Temperature	105~136 ℃
Designed Temperature	150℃
Max.Working Temperature	136 ℃
Temp.Accuracy	0.1℃
Temp.Uniformity	≤±0.5℃
Designed Pressure	-0.1/0.3Mpa
Sterilization Pressure	0.23Mpa
Pressure Resolution	0.1KPa
Ultimate Vacuum	-0.096MPa
Temp. Controller	PID control by microprocessor
Display	LCD touch screen
Drying Function	YES
Drying Time	15min
Sterilization Program	●Medical instrument program ●Luminal instruments ●Dressings program ●Rubber program ●Liquid program ●BD Test program ●Vacuum Test progrm Sterilization of medical dressing, medical Instruments, Instruments with cavity, Rubber, liquids plus 4 user-customized programs BD Test and vacuum test.
Power Consumption	5.7KW	6.6KW	6.6KW	12KW	12KW	12KW	12KW	20KW	20KW
Power Supply	380/220V, 50/60Hz
Standard Sterilization Shelf	1pcs	1pcs	1pcs	1pcs	1pcs	1pcs	1pcs	1pcs	1pcs
Standard Accessories	Printer
Net Weight	105kg	120kg	140kg	225kg	240kg	255kg	265kg	350kg	480kg
Gross Weight	165kg	185kg	252kg	315kg	340kg	355kg	380kg	470kg	570kg
Shipping Size (WxDxH)(mm)	1280×700 x1600	1280×700 x1600	1330×780 x1720	1300×850 x1900	1400×900 x1900	1440×930 x2020	1490×930 x2020	1650×1100 x2120	2100×1100 x2120

Horizontal Pulse Vacuum Autoclave Features:

Overheat protection: Automatically cutting off heating with audible and visual alarming when the autoclave is overheated.
Interlock safety: Preventing from starting a cycle if door is not properly locked or from door opening if the chamber is pressurized or the power is disconnected.
Door-temperature interlock safety: Preventing from explosion of liquids if the liquids temperature is not cooled down the safe limit (20℃ lower than the local boiling point).
Anti-burning protection: Automatically cutting off heating with audible and visual alarming when the autoclave is lack of water.
Steam pressure safety valve: Automatically works when the chamber pressure exceeds the limit.
Automatic operation of sterilization (heating, sterilization, steam discharge and drying) can be easily set and monitored by the LCD touch screen.
Built-in vacuum pump provides 3-time pulsed vacuum process,extracting the air out of the medical dressing and the a degree hollow medical instrument efficiently.
Built-in steam generator prevents the media from contamination.
Post-vacuum drying function offers efficient drying results.
Positive pulsing function removes the air efficiently.
With 0.22µm air filter, blocks all microorganisms from exiting the chamber during the air removal phase.
Optional printer, real-time record sterilization process, error and alarm information.
