HomeHot Air Sterilizer ST-H Series

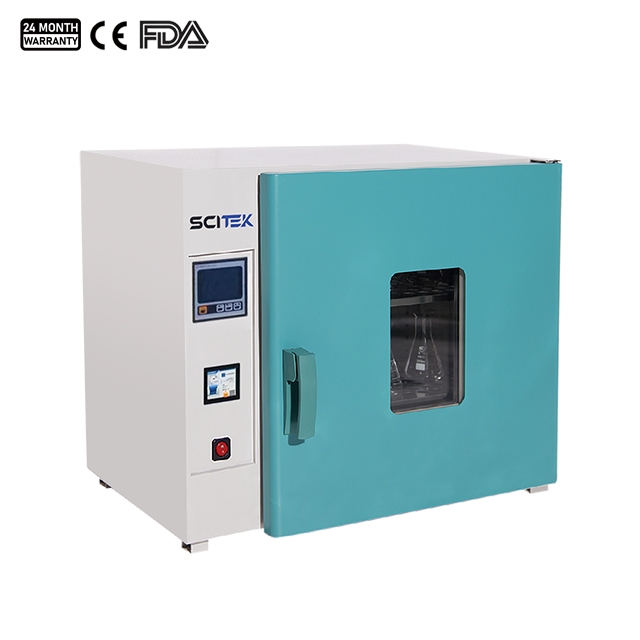

Hot Air Sterilizer ST-H Series
Model : ST-H25A; ST-H50A; ST-H70A; ST-H100A; ST-H200A

Capacity (L) : 34 / 50 / 70 / 138 / 200
Circulation : Forced air convection
Temperature Range (℃) : RT+10~250

Shelves : 2
Timer (min) : 1-9999
The hot air sterilizer uses dry heat to sterilise without the need for water, providing precise temperature control and rapid sterilisation.
You can later choose whether you want a quote, or if you place a firm order.

Product Description

Hot Air Sterilizer Specifications:

Model ST-H25A ST-H50A ST-H70A ST-H100A ST-H200A
Capacity(L) 34 50 70 138 200
Circulation Forced air convection
Temperature Range RT+10-250℃
Fluctuation ±0.5℃
Resolution 0.1℃
Uniformity 0.25℃
Sensor PT100
Controller PID
Display LCD
Timer(min) 1-9999
Material Internal Stainless steel
External Electro-galvanized steel with antimicrobial powder coating
Shelves 2
Test Hole (mm) Optional Ø25, 50, 80
Safety Device Leakage protector / Over- temperature alarm
Electricity Voltage/

Frequency

220V/50Hz
Consumption 500W 750W 1050W 1500W 2000W
Size(WxDxH) Internal (mm) 340x320x320 420x350x350 450x400x450 550x450x560 600x550x570
External (mm) 630x570x500 710x520x520 750x650x620 845x700x730 890x730x770
Shipping Size (WxDxH)(mm) 800x680x750 810x660x660 1050x680x660 1000x760x900 1020x900x950
N.W./G.W. (kg) 30/45 42/55 55/75 70/86 86/100
Optional 1. Independent temperature limiting controller
2. Intelligent LCD procedure temperature controller(Optional USB, RS485/232 and printer)



Hot Air Sterilizer Features:

  1. Automatic parameter adjustment: Control parameters are automatically adjusted based on ambient temperature and load for optimal heating and reduced energy consumption.
  2. High efficiency compressor ensures stable temperature control with low power consumption.
  3. Large-screen LCD display provides real-time parameter monitoring, with a self-locking function for easy operation.
  4. Hot air sterilizer equipped with a high-quality fan and large impeller, the incubator achieves higher ventilation efficiency and improved temperature uniformity.
  5. Back suction and bottom vertical air supply system ensures effective circulation within the chamber.
  6. The shelf can be freely adjusted up and down, with a minimum spacing of 30mm, allowing for flexible sample placement.
  7. A built-in observation window allows for clear visibility of objects inside the chamber.
  8. Door handle incorporates an anti-scalding design for easy and safe operation.
  9. Hot air sterilizer is equipped with a leakage protection device and a temperature control sound and light alarm system for operator and equipment safety.
