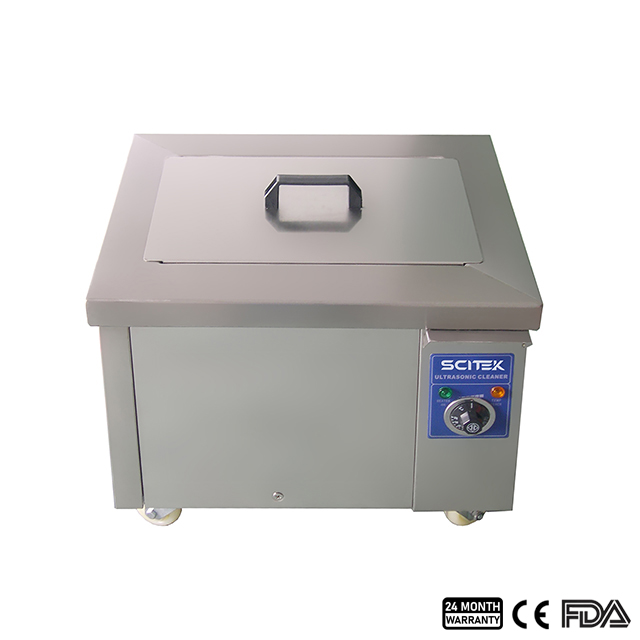

Model: UC-I25/UC-I40/UC-I60/UC-I90/UC-I100/UC-I125/UC-I150/UC-I170/UC-I190/UC-I210/UC-I230/UC-I250

Ultrasonic Freq(KHz) : 28 or 40
Heating Power(W)-Max : 1500/3000/4500
Ultrasonic Power(W)-Max : 300/600/900/1200/1500/1800

You can later choose whether you want a quote, or if you place a firm order.

Industrial Ultrasonic Cleaner Specifications:

Model	UC-I25	UC-I40	UC-I60	UC-I90	UC-I100	UC-I125	UC-I150	UC-I170	UC-I190	UC-I210	UC-I230	UC-I250
Tank Capacity (L)	23	38	56	88	101	126	150	170	190	210	230	250
Tank Material	SUS304
Transducer Qty(Pcs)	6	12	18	24	30	36	42	48	54	60	66	72
Ultrasonic Freq(KHz)	28 or 40
Temperature Setting(℃)-Max	110℃
Drain valve	Yes
Time Setting (min)	1-99 mins
Separated Ultrasonic Generator	No (All-in-one)		Yes
Heating Power Supply	AC 220-240V, 50/60Hz				AC 380V, 50/60Hz
Generator Power Supply	AC 220-240V, 50/60Hz
Ultrasonic Power(W)-Max	300	600	900	1200	1500	1800	Customized
Heating Power(W)-Max	1500		3000		4500
Chamber Size (W×D×H)(mm)	305x250x305	355x305x355	406x305x460	500x355x500	500x406x500	500x460x550
Sizes (W×D×H)(mm)	485x430x705	535x485x755	586x485x680	680x535x720	680x586x720	680x640x770
Shipping Size (W×D×H)(mm)	630x560x920	660x610x970	720x610x900	810x660x940	810x710x940	810x760x990
Notes: All chamber dimension can be customized, and the external dimensions, shipping size and weight will vary accordingly.
