HomeLighting Incubator (ICB-RL)

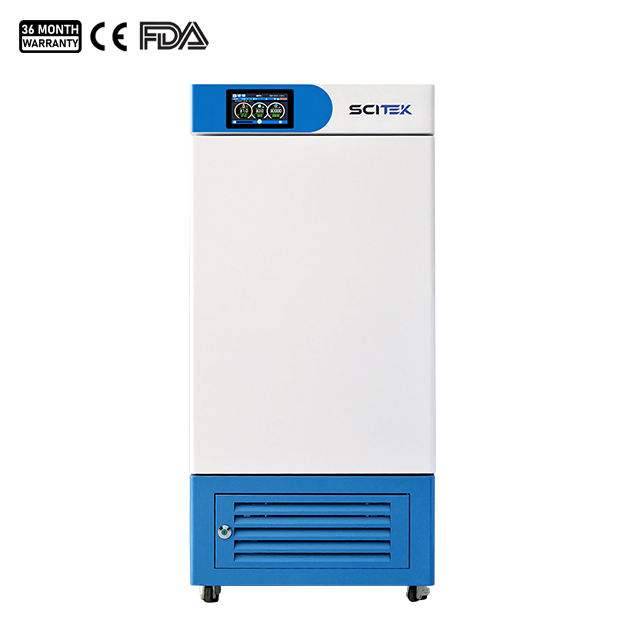

Lighting Incubator (ICB-RL)

Model : ICB-R150L; ICB-R250L; ICB-R350L; ICB-R460L

Capacity (L) : 150; 250; 350; 460
Circulation Mode : Forced convection
Temperature Range : With light: 10~65 °C; Without light: 0~65 °C
Temperature Resolution : 0.1 °C
Illuminance (lx) : 0~45000 (supports the input of illuminance)
It is widely used in plant growth research, photobiology experiments, and scientific research, teaching and other departments. It provides ideal growth environment, ensuring high reproducibility and accuracy of experimental data.

You can later choose whether you want a quote, or if you place a firm order.

Product Description

It is widely used in plant growth research, photobiology experiments, and scientific research, teaching and other departments.

It provides your samples with the most ideal growth environment, ensuring high reproducibility and accuracy of experimental data.

Lighting Incubator Feature:

1. Double-door structure, the inner door is made of high-quality tempered glass, observation of samples easily.

2. A controller is installed on the door, and with the 7.0-inch color LCD touch screen.

3. The lighting intensity is adjustable in multiple levels, and it allows for free combination programming and operation of 99 segments of temperature and illuminance parameters.

4. With the functions of data storage, export via a USB flash drive and scheduled power on/off.

5. Top lighting design with full-spectrum LED light sources. It is characterized by high illuminance, low heat radiation, and an extremely long service life.

6. An under-temperature protection function and an independent digital display high-precision over-temperature limiter.

7. Once the temperature exceeds the limit, the heating output will be automatically cut off to ensure the safety of samples and the equipment.

8. It uses a variable-frequency compressor, which offers advantages such as energy conservation, low noise, and no frosting.

Lighting Incubator Specification:

Model ICB-R150L ICB-R250L ICB-R350L ICB-R460L
Capacity (L) 150 250 350 460
Circulation Mode Forced convection
Internal Size (W×D×H) (mm) 405×500×755 505×545×915 585×600×1050 650×650×1110
External Size (W×D×H) (mm) 600×650×1350 700×705×1550 780×750×1605 845×805×1710
Display 7 inch LCD touch screen
Temperature Range With Light: 10~65 °C; Without Light: 0~65 °C;
Temperature Resolution 0.1 °C
Temperature Fluctuation ±1 °C (The experimental condition is no-load, with an ambient temperature of 20 °C and a humidity of 50%RH)
Sensor PT100
Illuminance (lx) 0~45000 (supports the input of illuminance)
Illumination Control 5-level relative illuminance control
Light Source 2-layer top-mounted LED illumination
Controller PID
Timer Each segment is 0~999 mins (99×5 segments program)
Material Internal 304 mirror stainless steel
External Electrostatic spraying of galvanized sheet
Shelves 4
Shelf Loading Capacity 15 kg
Refrigerant R134A (CFC free)
