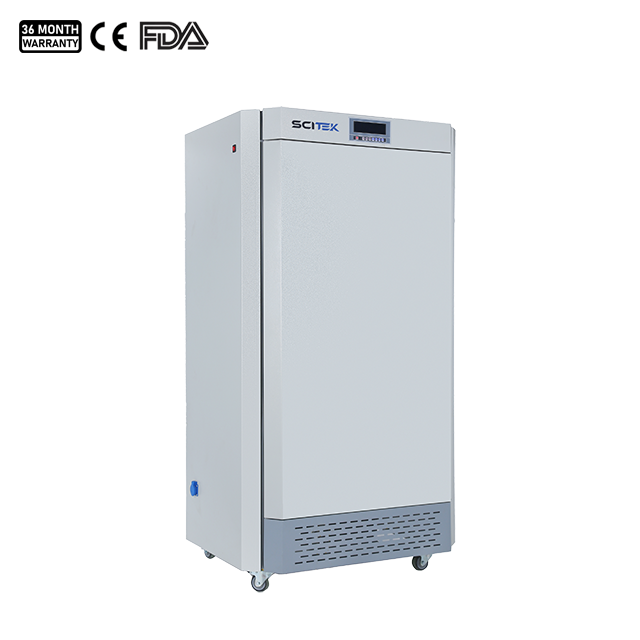

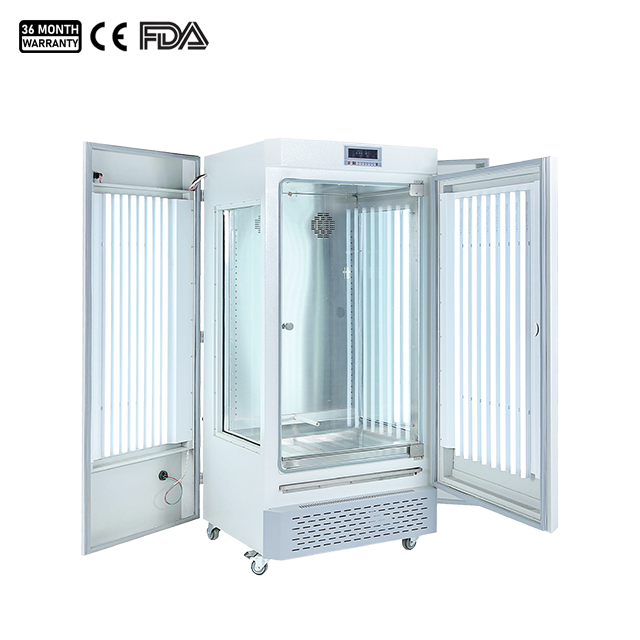

Plant Growth Incubator

Home » Avik Product Catalogue » Plant Growth Incubator

Model : ICB-250L; ICB-350L; ICB-450L

Capacity : 250L / 350L / 450L
Circulation Mode : Forced convection
Illumination : 0~12000Lx / 0~15000Lx / 0~20000Lx
Illumination Control : 6-level relative illuminance control

This plant incubator growth chamber uses a precise lighting system that mimics natural sunlight to ensure that plants, micro-organisms are kept at the optimum temperature for growth and development.

You can later choose whether you want a quote, or if you place a firm order.

Product Description

This plant incubator growth chamber is popular in various scientific fields. It provides ideal controlled conditions for the cultivation and research of plants, microorganisms, and other samples.

The plant incubator with light allows precise control of lighting, temperature, humidity and other parameters for high-quality, reproducible research.

plant grown incubator-2

Plant Growth Incubator Specifications:

Model		ICB-250L	ICB-350L	ICB-450L
Capacity(L)		250	350	450
Circulation Mode		Forced convection
Size(WxDxH)	Internal (mm)	560×420×1050	560×530×1200	700×530×1210
Size(WxDxH)	External (mm)	660×660×1700	670×730×1880	810×790×1890
Temperature	Range (℃)	With lighting: 10~60 Without lighting: 4~60
	Fluctuation (℃)	±1
	Resolution (℃)	0.1
	Uniformity (℃)	±1	±2	±2
	Sensor	PT100
Illumination(Lx)		0~12000	0~15000	0~20000
Illumination Control		6-level relative illuminance control
Controller		PID
Display		Large high efinition LCD
Timer		1~9999min (Optional 30xsegmentsx100cycles)
Material	Internal	Stainless steel
Material	External	Cold rolled steel electrostatic spraying exterior
Shelves		3	3	4
Internal Socket		Optional
Refrigerant		R134a (CFC free)
Defrosting Mode		Automatic
Safety Device		Visible & Audible over temperaure, over humidity, water shortage alarm; leakage protector
Electricity	Voltage/Frequency	AC 220/110V, 50/60Hz
Electricity	Consumption (W)	640	1600	1750
N.W./G.W. (kg)		120/150	140/160	165/185
Shipping Size (WxDxH) (mm)		820x800x1920	940x990x2080	940x1140x2080
Optional		Test hole(Φ25/50/80/100mm), spare shelf, internal socket, digital independent temp, limiter, intelligent LCD procedure, temperature controller (Optional USB, RS485/232 port, and built-in printer)

Plant Growth Incubator Features:

Three-stage electric heating defrosting program control to prevent temperature fluctuations caused by frost.
Energy-saving LED cold light source with adjustable light intensity in six levels.
Large-screen LCD display for real-time parameter monitoring with screen self-locking function.
Internal circulation system: Back suction and bottom vertical air supply for improved temperature uniformity.
Flexible shelf adjustment with a minimum spacing of 30mm.
High-quality brushed stainless steel inner tank for corrosion resistance.
Built-in observation window for easy viewing.

Applications of Plant Growth Incubators:

Plant incubators are widely used in botanical and agricultural research. They provide a controlled environment for studying plant growth, photosynthesis and the effect of different light conditions on plant development.
Plant incubators also grow bacteria, fungi and other microbiological cultures that require specific light conditions.
Some studies require controlled lighting for rearing insects, especially those involving life cycle studies and pest management.
