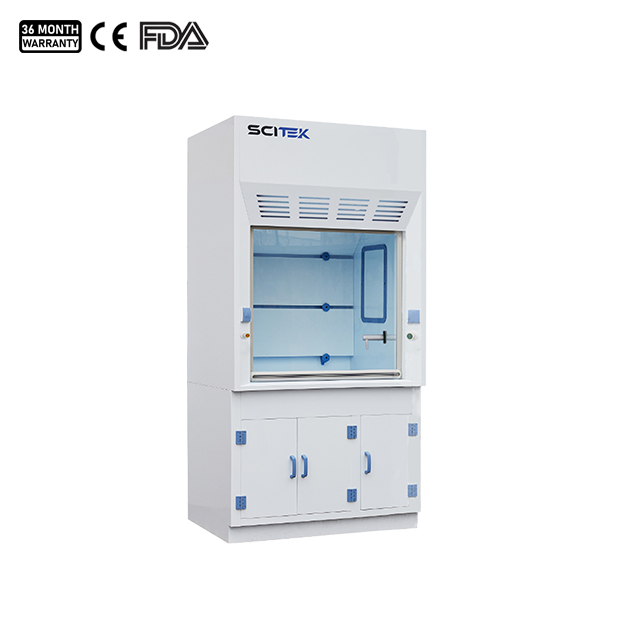

PP Fume Hood

Home » Avik Product Catalogue » PP Fume Hood

Model : FMH-1000DP; FMH-1200DP; FMH-1500DP; FMH-1800DP

Work Surface Height : 820mm
Max Opening : 740mm
Air Velocity : 0.3~0.8m/s, speed adjustable
Noise : ≤68dB

Polypropylene fume hood is suitable for experiments with strong acids, strong bases, strong corrosive substances and volatile substances.

You can later choose whether you want a quote, or if you place a firm order.

Product Description

PP fume hood is suitable for the experiment of strong acid, strong alkali, strong corrosion and volatility. It can effectively protect the operator from inhaling toxic gases and protect the operator and sample safety. And dramatically reduces the risk of fire and explosion. The environment can also be protected by installing appropriate filters.

PP Fume Hood Specifications:

Model			FMH-1000DP	FMH-1200DP	FMH-1500DP	FMH-1800DP
External Size (WxDxH)(mm)			1047x800x2450	1247x800x2450	1547x800x2450	1847x800x2450
Internal Size (WxDxH)(mm)			787x560x700	987x560x700	1287x560x700	1587x560x700
Max.Opening			740mm
Work Surface Height			820mm
Control System	Display		Microprocessor controller with LCD display, display the operating status of each function
Airflow System	Airflow Velocity		0.3~0.8 m/s, speed adjustable
Cabinet Construction	Main Body		Made of Porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosion.
	Work Surface		Chemical resistant phenolic resin
	Front Window		Manual, 5mm toughened glass, height adjustable.Resistant to acid and alkali
Electrical System	LED Lamp		16W×2	16W×2	30W×2	36W×2
	Blower		Built-in PP centrifugal blower(2 blowers for FMH-1800DP only); Speed adjustable
	Consumption		450W	450W	450W	900W
	Consumption		Not include socket loading power consumption
	Power Supply		AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Illumination			≥900Lux
Sound Emission			≤68dB(A)
Standard Accessory			1.Base Cabinet;
			2.LED Lamp;
			3.Waterproof Socket×2;
			4.Water Tap (PP);
			5.Gas Tap (PP);
			6.Gas & Water Remote Control Valve;
			7.Water Sink;
			8.Work Table: Solid physicochemical board, resistant to acid and alkali;
			9.PP Centrifugal Blower*1(2 for FMH-1800DP only);
			10.10m PVC aluminum foil composite exhaust duct, Diameter: 250mm;
			(2 pcs of 10m exhaust duct for FMH-1800DP only,duct is retractable and can be cut freely.) Pipe strap x2 (4 pcs for FMH-1800DP only);
Optional Accessory			1. PP Work Table, epoxy resin board
Optional Accessory			2. Active Carbon Filter;
Gross Weight (kg)		Main Body	137	155	180	206
Gross Weight (kg)		Base Cabinet	89	99	114	140
Shipping Size (W×D×H) (mm)		Main Body	1188x938x1612	1388x938x1612	1688x938x1612	1988x938x1612
Shipping Size (W×D×H) (mm)		Base Cabinet	1188x888x1000	1388x888x1000	1688x888x1000	1988x888x1000
Shipping Volume (m³)			2.9	3.4	4.1	4.8

PP Fume Hood Features:

The mainframe is made of PP (polypropylene) material, integrally welded.
Resistant to strong acid, alkali and strong corrosion.
Microprocessor control system, LCD display.
The top adopts a top-shield suction design, and the deflector is made of homogeneous PP material, which has strong acid and alkali resistance.
Without airflow dead angle, and the maximum exhaust gas capture performance can be obtained.
The operating surface is equipped with water-retaining and anti-overflow treatment.
