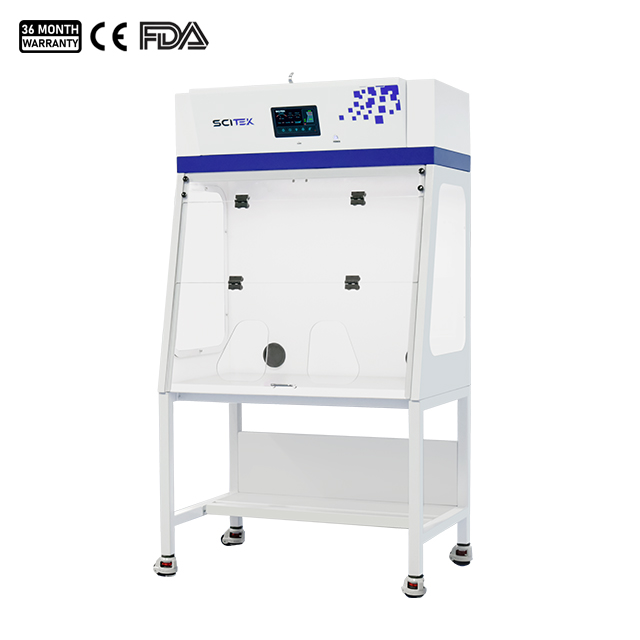

Ductless Fume Hood

Home » Avik Product Catalogue » Ductless Fume Hood

Model : FMH-800DL

Filter : 1pcs Pre-filter, Polyester fiber,washable; 1pcs Active Carbon filter
Max. Opening : 650mm
Air-velocity Range : 0.4-0.6m/s, speed adjustable

Sound Emission : 50dB(A)

Ductless fume hood series with 7″ colour screen showing all operational status of each function. Now the best budget ductless chemical fume hood for sale at cost price.

You can later choose whether you want a quote, or if you place a firm order.

Product Description

Ductless fume hood (also known as a ductless fume hood, portable chemical hood), which uses carbon or HEPA filtration to protect laboratory personnel from toxic chemical fumes, odours and particles. Real-time adsorption and treatment of airborne solvents, acid gases, formaldehyde and other hazardous substances. The air in the lab is then circulated and cleaned.

Ductless Fume Hood Specifications:

Model		FMH-800DL
External Size (WxDxH)(mm)		800x620x1130 (Without Base Stand); 800x620x1800 (With Base Stand)
Internal Size (WxDxH)(mm)		780x540x775
Max.Opening		650mm
Operation Surface Height		690mm
Control System		7-inch color touch screen, real-time display air velocity, VOC concentration, temperature and humidity, and filter life time etc
Airflow System	Airflow Velocity	0.4-0.6m/s, speed adjustable
Air filtration System	Filter	1pcs Pre-filter, Polyester fiber,washable 1pcs Active Carbon filter
Cabinet Construction	Main Body	Electro-galvanized steel with antimicrobial Powder Coating
	Work Surface	304 Stainless Steel, Max.loading of worksurface: 70kg
	Front Window	Manual acrylic window
Electrical System	LED Lamp	16W×1
	Blower	DC Centrifugal blower, adjustable speed, low noise
	Consumption	60W
	Power Supply	220V±10%, 50/60Hz; 110V±10%, 60Hz
Sound Emission		≤50dB(A)
Standard Accessory		1. Active Carbon Filter×1; 2. Pre-Filter×1; 3. LED Lamp×1
Optional Accessory		1. Base Stand; 2. Base Cabinet; 3. HEPA Filter; 4. Chemical filter; 5. Upgraded LED Lamp; 6. Solid Physicochemical Board Work Surface
Net Weight		96kg
Gross Weight		138kg
Shipping Size (WxDxH)(mm)		1160×840×1320
Shipping Volume		1.3m³

This type of fume hood utilizes optional HEPA filtration to protect laboratory personnel from particles, if add optional carbon or chemical filters could also protect laboratory personnel from toxic chemical fumes, odors. Known for its plug-and-play feature and mobility, ductless fume hood guarantees a hassle-free installation and no lab work interruption.

Ductless Fume Hood Feature:

Powerful filtration system can be configured with HEPA filters and chemical filters according to customer requirements, effectively filtering and removing harmful substances to ensure a safe operating environment and protect personnel from harm.

Easy to operate, and fume hood equipped with a 7-inch LCD color touchscreen, it displays real-time parameters such as air velocity, VOC concentration, temperature and humidity, and filter lifetime. This achieves excellent human-machine interaction.

Humanized design, three-sided acrylic transparent material observation window, convenient for multi-angle observation.
Low noise design, using high-quality DC centrifugal blower to ensure performance while providing users with a quiet working environment.
Memory function in case of power-failure.
Audio and Visual alarm on filter life,VOC concentration
Brushed stainless steel work surface is for easy cleaning.
Different sizes available from 2 feet to 6 feet, benchtop use or mounted on a mobile base.
Optional upgrade LED lamp can be choosed.
Color Rendering Index up to Ra98, Truly restore the true color of the experimental object, the experimental results are more accurate.
RG0 without blue light, protects the operator from blue light.
