Ultra-Low Temperature Freezer
Ultra-Low Temperature Freezer

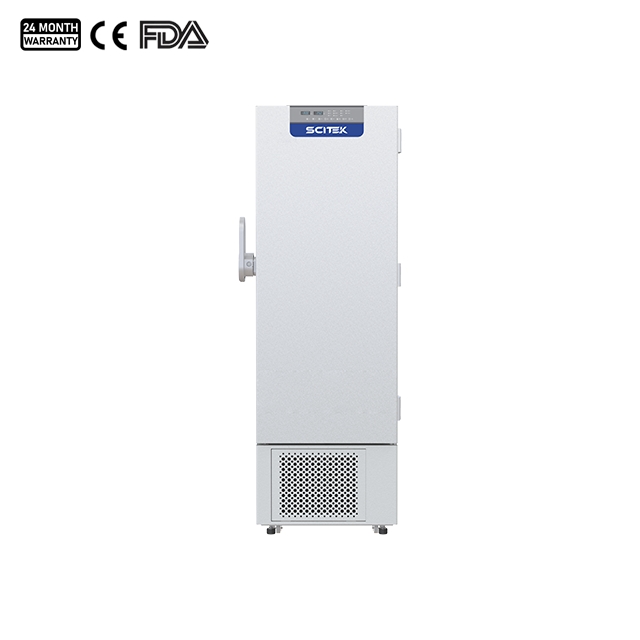

Model: UFZ-86V420EB; UFZ-86V430B/BP; UFZ-86V590B/BP; UFZ-86V860B/BP

Temperature Range : -40 to -86 °C
Temperature Display Accuracy : 0.1 °C
Sensor : PT1000
Cooling Mode : Direct cooling
Cooling Liquid : Green cooling liquids (R290/R170)
You can later choose whether you want a quote, or if you place a firm order.

Product Description

At the cutting edge of life science research, every door opening presents a test of sample security. Designed specifically for modern laboratories with high-frequency usage, the intelligent ULT freezer features a smart variable-frequency refrigeration compressor and employs a composite insulation structure that combines Vacuum Insulation Panel technology with high-pressure foaming of rigid polyurethane. While providing a secure and robust thermal defense for precious samples, it drastically minimizes cold loss, thereby achieving exceptional energy efficiency and power savings. The ultra low temperature freezer offers round-the-clock protection and ensures long-term, stable storage for your samples.

Ultra Low Temperature Treezer Feature:

1. Optimized cascade refrigeration technology, international brand compressor, better cooling performance.

2. Intelligent variable frequency, constant temperature, energy saving, silent design, low noise operation.

3. Adopts hydrocarbon refrigeration system, completely CFC-free.

4. Intelligent computer temperature control system with digital temperature display.

5. LCD touch screen control system (UFZ-B series), real-time display of operating, set and ambient temperature, alarm statusand management, time and other parameter information .

6. Multiple security safeguards: face recognition + fingerprint recognition + NFC card recognition + passwordrecognition, equipped with electric plug lock (UFZ-B series).

7. Universal casters with locking feet design, easy and fast to move and fix.

8. Having obtained multiple international certifications, including ISO 9001, 13485, 14001, and 45001, support scientific research and clinical practice with reliable quality.

ULT Freezer Specification:

Model UFZ-86V420EB UFZ-86V430B/BP UFZ-86V590B/BP UFZ-86V860B/BP
Capacity (L) 420 425 585 860
Temperature Range -40 to -86 °C
Temperature Display Accuracy 0.1 °C
Sensor PT1000
Cooling Mode Direct cooling
Cooling Liquid Green cooling liquids (R290/R170)
Defrost Mode Manual defrost
Compressor Qty 2
Stainless Steel Shelve 3
Inner Door 4
Rack 12 (5×5) 16 (5×5) 24 (5×5)
Storage Capacity (2 Inches Boxe) 300 400 600
Samples (2 mL) 30000 40000 60000
Consumption (W) 650 650 700
Daily Power Consumption (W) 7.85 8.05 9.45
Noise (dB) 39 39 42
Power Supply 220/110 V, 50/60 Hz
Display Digital tube display 10.1-inch touch screen
Inside Material SUS304
Outside Material Zinc-iron alloy spray coating
Alarm High/low temperature, Power failure, Abnormal voltage, Sensor error, Filter screen check, Thermostat failure, Low battery, Condenser clean, High ambient temperature, Door ajar, 24 h Power failure alarm (For controller)
Exterior Size (W×D×H)(mm) 750×988×1987 750×988×1987 900×988×1987 1172×988×1987
Package Size (W×D×H)(mm) 832×1110×2150 832×1110×2150 990×1110×2150 1254×1110×2150
Accessory 4 pcs Castor; 4 pcs Castor;
2/25mm Test hole QTY/diameter; 2/25mm Test hole QTY/diameter;
USB port; USB port;
/ Chart recorder;
Data logger; Data logger;
Remote alarm port; Remote alarm port;
Optional Accessory RS485 port;
CO2 back up system;
LN2 back up system;
N.W./G.W.(Kg) 292/332 292/332 325/370 380/436
