Home » Avik Product Catalogue » -60°C Tuna Freezer

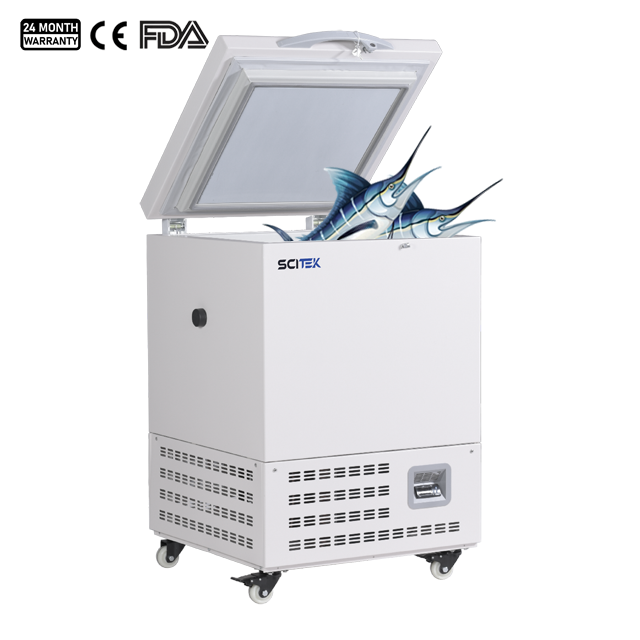

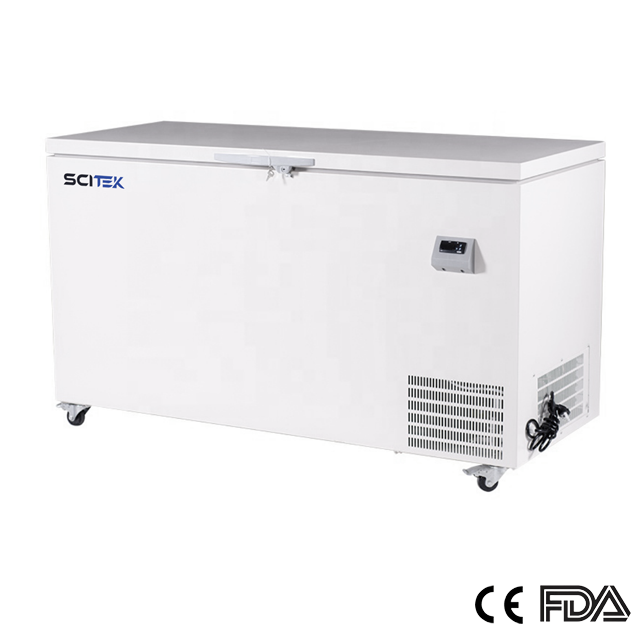

Model : FZ-60H60; FZ-60H120; FZ-60H220; FZ-60H320; FZ-60H460
Capacity (L) : 58 / 120/ 220/ 320/ 458
Internal Size (mm) : 410x410x385 / 700x470x385 / 960x470x600 / 1330x470x600 / 1380x500x600
Temperature Range (℃) at RT.10~32℃ : -25~-65℃, adjustable
Ultra-low Freezer Specifications:
| Model |
FZ-60H60 |
FZ-60H120 |
FZ-60H220 |
FZ-60H320 |
FZ-60H460 |
| Capacity (L) |
58 |
120 |
220 |
320 |
458 |
Size
(WxDxH) |
Internal (mm) |
410x410x385 |
700x470x385 |
960x470x600 |
1330x470x600 |
1380x500x600 |
| External (mm) |
670x765x1025 |
900x765x945 |
1160x765x885 |
1530x765x885 |
2110x895x1090 |
| Temperature |
Range (℃） |
-25~-65℃, adjustable |
-25~-65℃, adjustable |
-25~-65℃, adjustable |
-25~-65℃, adjustable |
-25~-65℃, adjustable |
| Sensor |
PTC |
PTC |
PTC |
PTC |
PTC |
| Controller |
Microprocessor |
Microprocessor |
Microprocessor |
Microprocessor |
Microprocessor |
Cooling
System |
Refrigerant |
Mixed with CFC free |
Mixed with CFC free |
Mixed with CFC free |
Mixed with CFC free |
Mixed with CFC free |
| Defrost |
Manual |
Manual |
Manual |
Manual |
Manual |
Compressor
(Qty) |
SECOP/1 |
SECOP/1 |
SECOP/1 |
SECOP/1 |
SECOP/1 |
| Display |
LED |
LED |
LED |
LED |
LED |
Audible &
Visible Alarm |
High/Low
Temperature |
Standard |
Standard |
Standard |
Standard |
Standard |
| Sensor Failure |
Standard |
Standard |
Standard |
Standard |
Standard |
| Material |
External |
Electro-galvanized steel with
antimicrobial powder coating |
Electro-galvanized steel with
antimicrobial powder coating |
Electro-galvanized steel with
antimicrobial powder coating |
Electro-galvanized steel with
antimicrobial powder coating |
Electro-galvanized steel with
antimicrobial powder coating |
| Inner Door |
304 stainless steel |
304 stainless steel |
304 stainless steel |
304 stainless steel |
304 stainless steel |
|
Casters |
Standard |
Standard |
Standard |
Standard |
Standard |
Temperature
Recorder |
Optional |
Optional |
Optional |
Optional |
Optional |
Test Hole (Qty) /
Diameter (mm) |
1/18 |
1/18 |
1/18 |
1/18 |
1/18 |
| Shelves / Drawers (Qty) |
/ |
/ |
/ |
/ |
/ |
| Sound Emission (dB) |
60 |
60 |
60 |
60 |
60 |
| Electricity |
Voltage /
Frequency |
220V, 50/60Hz; 110V, 60Hz |
220V, 50/60Hz; 110V, 60Hz |
220V, 50/60Hz; 110V, 60Hz |
220V, 50/60Hz; 110V, 60Hz |
220V, 50/60Hz; 110V, 60Hz |
| Consumption (W) |
360 |
340 |
400 |
480 |
520 |
| N.W. / G.W. (kg) |
83/108 |
89/114 |
106/136 |
126/156 |
207/237 |
| Shipping Size (WxDxH) (mm) |
750x845x1175 |
1000x845x1095 |
1260x845x1035 |
1630x845x1035 |
2190x975x1240 |
Mainly used for scientific research institutions, ultra-low temperature experiments with special materials, electronics industry, chemical industry, military industry, university laboratories, bioengineering, offshore fisheries, etc.
Ultra-low Freezer Features:
- Microcomputer control, real-time temperature display, temperature with 0.1°C increment .
- High and low temperature alarm function, alarm temperature value can be set as required.
- Inner chamber temperature is adjustable; Alarm temperature could be customized as requirements.
- Built in adjustable stainless steel shelf, easy to use and to clean.
- Food grade stainless steel inner chamber, safe and secure.
- Heavy duty caster design, easy to move.
- Safety door lock is designed to prevent random opening.
- Wide voltage band design, suitable for 187V ~ 242V AC voltage.
Reliability
- Ultra-thick foam layer and double-sealed door effectively protect freezer’s internal temperature.
- Cooling system is optimized for self-replication, and the imported compressor provides strong and efficient refrigeration capacity.
- German EBM fan, stable performance and low noise.
Safety system
- Audible and visible alarm: High and low temperature & sensor error alarm.
- Multiple protection functions: Frequent start-up protection, refrigeration system keeps running in case of sensor failure.
