Avik Product Catalogue

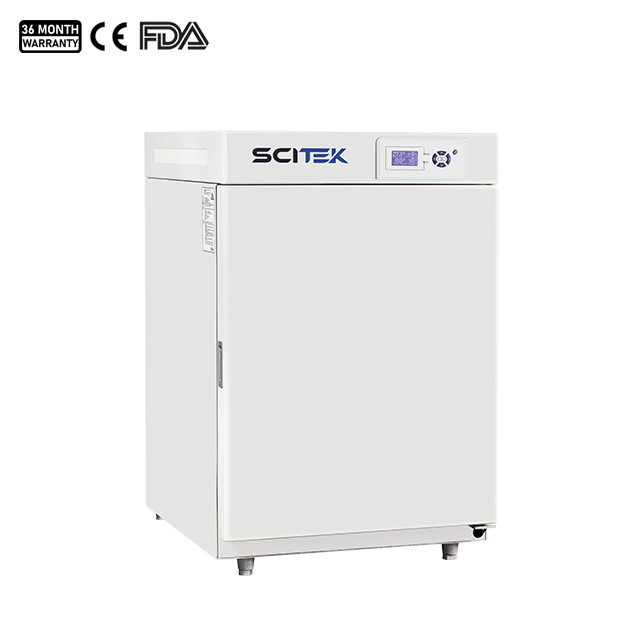

HomeCO2 Incubator CA Series

CO2 Incubator CA Series
Model : ICB-CA50(UV); ICB-CA80(UV); ICB-CA150(UV); ICB-CA190(UV); ICB-CA240(UV); ICB-CW30(UV); ICB-CW80(UV); ICB-CW150(UV)

Capacity (L) : 50/80; 150/190; 240
Heating Method : Air jacket
Temperature Fluctuation : ±0.2 ℃
Temperature Control Range : RT+5~55 ℃
Working Environment Temperature : +5~30 ℃

The CO2 Incubator has adjustable shelf spacing within the cabinet
You can later choose whether you want a quote, or if you place a firm order.

Product Description

CO2 Incubator Features:



  1. Humanity design, Polished 304 stainless-steel chamber, semicircular arcs at corners for easy cleaning, and the space between the shelves in the chamber is adjustable.
  2. Two-layer stacking available, facilitating the full utilization of laboratory space.
  3. Faster CO2 concentration Restoration Speed.
  4. Imported infrared sensor can keep CO2 concentration stability and uniformity when door open frequently.
  5. Microorganism filter at inlet provides 99.99% filtration of bacteria and dust (Ф<0.3μm) and supplies pure CO2 into the incubator.
  6. The speed of the circulating fan can be automatically controlled. When the temperature inside the incubator is at a constant temperature, the speed will decrease and the circulating wind speed will be adjusted to a suitable speed for cell growth, avoiding sample evaporation caused by excessive air volume during the experiment.
  7. Door temperature controller prevents dewfall on glass door of incubator effectively.
  8. Safety function: Independent audible and visible temperature-limiting alarm system ensures experiments run safely.(Optionals)
  9. Alarm function for temperature difference, CO2 over concentration and concentration difference,door open time.
  10. UV sterilization system: The ultraviolet sterilization lamp is located at the top and rear of the incubator, which can regularly disinfect the inside of the incubator and effectively kill floating bacteria in the circulating air and humidification tray steam inside the incubator, thereby effectively preventing contamination during cell culture.

CO2 Incubator Specifications:

Model ICB-CA50(UV) ICB-CA80(UV) ICB-CA150(UV) ICB-CA190(UV) ICB-CA240(UV) ICB-CW30(UV) ICB-CW80(UV) ICB-CW150(UV)
Capacity(L) 50/80 150/190 240 30 80 150
Internal Size (W×D×H)(mm) 400×350×350 400×450×500 480×530×610 520×530×690 600×630×670 290×290×310 400×400×500 500×500×650
External Size (W×D×H)(mm) 580×450×540 590×657×870 670×710×950 708×710×1030 788×837×940 440×410×544 550×520×764 650×615×914
Heating method Air jacket Water jacket
Temperature fluctuation ±0.2℃ ±0.1℃
Temperature control range RT+5~55℃
Working environment temperature +5~30℃
CO2 control range 0~20%
CO2 control accuracy ±0.1% (infrared sensor)
CO2 recovery time (Recovery to 5% in 30 seconds)≤ 3 minutes
Temperature recovery (Return to 37℃ in 30 seconds)≤ 8 minutes
Relative humidity Natural evaporation ≥ 90% (no display)
Disinfection method UV disinfection
Power Supply AC 220/110V, 50/60Hz
Shelves (standard) 2pcs 3pcs 3pcs 2pcs 2pcs 3pcs
Input power 450W/500W 750W 950W 250W 680W 950W
N.W./G.W. (kg) 59/79 64/98 85/126 85/134 95/148 50/65 55/90 68/125
Shipping Size(WxDxH)(mm) 830×800×980 740×700×1040 830×840×1250 830×840×1250 930×910×1220 560×800×540 700×670×1010 830×780×1070
Standard 1 pcs CO2 pressure releasing valve
Optional Embedded printer; HEPA filter, RS485
