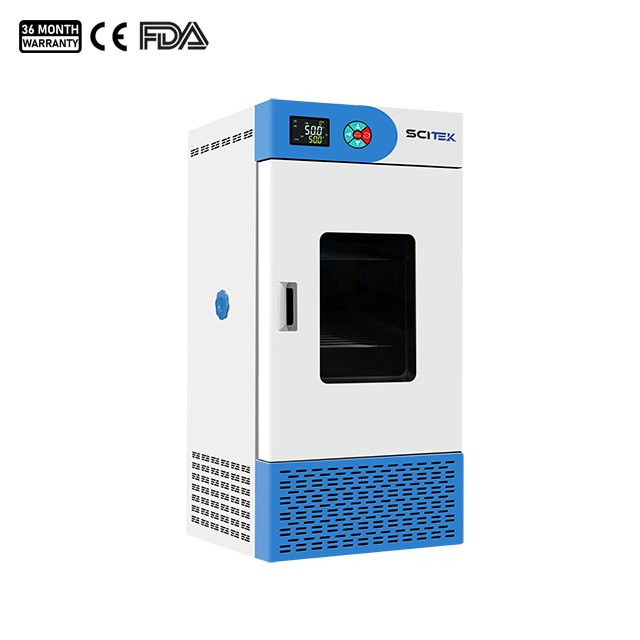

Cooling Biochemical Incubator, BI Series

Home » Avik Product Catalogue » Cooling Biochemical Incubator, BI Series

Model : ICB-50BI; ICB-80BI; ICB-150BI; ICB-250BI; ICB-350BI; ICB-460BI;

Capacity(L) : 50L;80L;150L;250L;350L;460L;
Temperature Range (℃) : 5-65℃
Resolution (℃) : 0.1℃
Accuracy : ±2℃

You can later choose whether you want a quote, or if you place a firm order.

Cooling Biochemical Incubator Features:

Stainless steel chamber, semi-circular inner corner, shelves can be freely loaded and unloaded, easy to clean.
The shell is treated with electrostatic spraying technology, which is corrosion-resistant and durable.
Microcomputer control system, accurate and reliable temperature control.
High-efficiency compressor and circulating fan are used, which are energy-saving and low-consumption.
Equipped with a temperature limit alarm system, which will automatically limit over-temperature to ensure experimental safety.
Double-layer glass observation window. The outer door is sealed with magnetic strips, which is easy to open and close, has good sealing and thermal insulation performance.

Model		ICB-50BI	ICB-80BI	ICB-150BI	ICB-250BI	ICB-350BI	ICB-460BI
Capacity(L)		50	80	150	250	350	460
Circulation Mode		Forced convection
Internal Size (WxDxH)(mm)		350x350x400	400x400x500	400x500x750	500x550x910	600x600x1000	650x650x1100
External Size (WxDxH)(mm)		580x460x900	610x560x1070	600x660x1400	700x720x1590	790x760x1640	850x805x1730
Temperature	Range	5-65°C
	Fluctuation	High Temp.: ±0.5°C; Low Temp.:±1°C
	Resolution	0.1°C
	Uniformity	±2°C
Controller		PID controller
Display		Digital LCD dispaly
Timer(min)		0-9999
Material	Internal	Stainless steel
Material	External	Cold rolled steel electrostatic spraying exterior
Test Hole		Standard Φ43mm test hole on the left side
Refrigerant		R134a (CFC free)
Defrost Mode		Automatic
Safety Device		Over temperature
Power Supply		AC 220/110V, 50/60Hz
Consumption(W)		500	600	800	1000	1200	1400
Shelves		2
Shipping Size (W×D×H)(mm)		615x510x980	690x620x1150	770x735x1520	820x800x1660	870x860x1800	990x1040x1970
G.W. (kg)		51	61	87	112	139	168
Optional		USB Port; RS485 interface; printer and spare shelf
