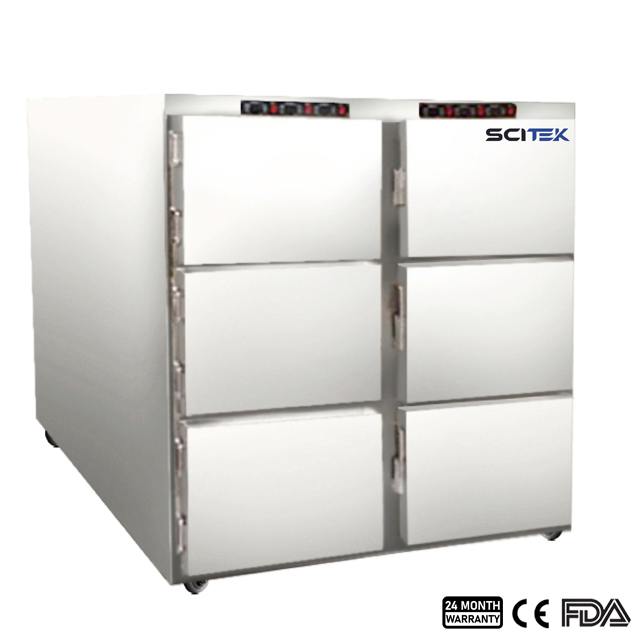

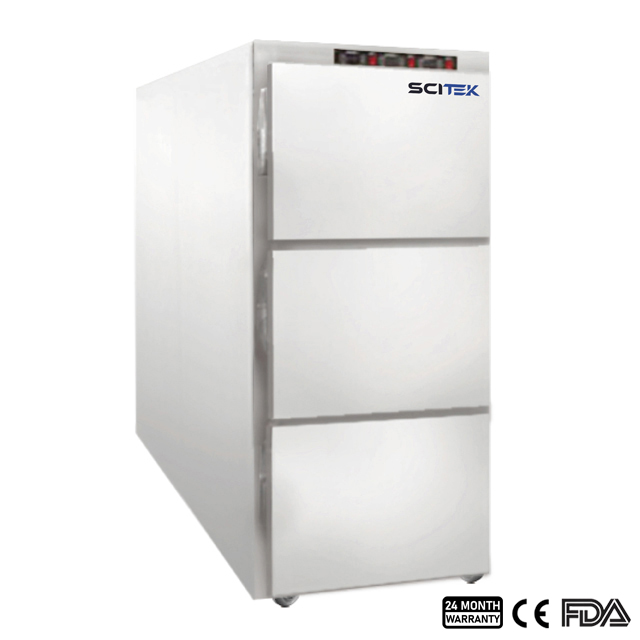

Mobile Morgue Refrigerator (1/2/3/4/6 Body)
Mobile Morgue Refrigerator (1/2/3/4/6 Body)Mobile Morgue Refrigerator (1/2/3/4/6 Body)Mobile Morgue Refrigerator (1/2/3/4/6 Body)Mobile Morgue Refrigerator (1/2/3/4/6 Body)
Model : CR-1S; CR-2S; CR-3S; CR-4S; CR-6S

Compressor (Qty) : 1 / 2 / 3 / 4 / 6
Internal Size (mm) : (1900×570×395)x1; (1900×570×395)x2; (1900×570×395)x3; (1900×570×395)x4; (1900×570×395)x6

Temperature Range (℃) : Preset : 1~5, Lowest : -18/-30
The body refrigerator features a digital thermometer and easy-to-adjust thermostat, heavy-duty chrome-plated hardware for durability.
You can later choose whether you want a quote, or if you place a firm order.

Product Description

This morgue freezer is designed for autopsies, morgues and pathology labs. The body refrigerator is designed for ease of use and meets strict CE and FDA standards. The morgue freezer can choose single, double or triple body trays for storing up to 6 bodies.

Morgue refrigerator Specification:

Model CR-1S CR-2S CR-3S CR-4S CR-6S
Capacity (Qty) 1 2 3 4 6
Size (W×D×H) (mm) Corpse Tray 1900×570×395 (L×W×H)
External 2480×810×650 2480×810×1190 2480×810×1800 2480×1580×1190 2480×1580×1800
Electricity Voltage/
Frequency
220V/60Hz
Compressor Consumption (W) 350 700 1050 1400 2100
Temperature Preset (℃) 1~5 1~5 1~5 1~5 1~5
Lowest (℃) -18/-30 -18/-30 -18/-30 -18/-30 -18/-30
Compressor (Qty) 1 2 3 4 6
Optional 24 hours tracking printing system
Alarm High temperature alarm.
Low temperature alarm.

Sensors failure alarm.
Door-opening alarm.

Net Weight (Kg) 200 300 370 550 650



Body Storage Refrigerator Features:

  1. Microprocessor controlled digital display, providing precise temperature control.
  2. Audible buzzer and visible flashing over-temperature alarm.
  3. Insulation layer features integral foaming technology, providing better insulation.
  4. Casters installed, making it easy to handle and move.
  5. Domestic compressor as standard, imported compressor as optional

Reliability

  1. Audible buzzer and visible flashing over-temperature alarm equipped.
  2. Safety password protected control panel prevents unauthorized system modification (Optional).
  3. Post delay start & shutdown interval protection function.

Ergonomic Design

  1. Made of high-quality corrosion-resistant stainless steel.
  2. The mortuary fridge is equipped with strong anti-aging door seal for longer service life.
  3. Individually temperature controlled chambers.
  4. Multi-row rolling wheels on body tray.
  5. Digital display and wide voltage band (187~242V).

Body Storage Refrigerator Details:

CR-1S,CR-2S,CR-3S,CR-4S,CR-6S-2High-quality door seal used to increase door’s lifespan with strong anti-aging ability

CR-1S,CR-2S,CR-3S,CR-4S,CR-6S-1Each chamber is individually temperature controlled.

CR-1S,CR-2S,CR-3S,CR-4S,CR-6S-3Universal casters installed.

CR-1S,CR-2S,CR-3S,CR-4S,CR-6S-5Aluminum Alloy Stretcher for Ambulance
Size: 192x54x84cm

CR-1S,CR-2S,CR-3S,CR-4S,CR-6S-4BC-80-60 Coffin Rack
Size: 60x16x80cm
