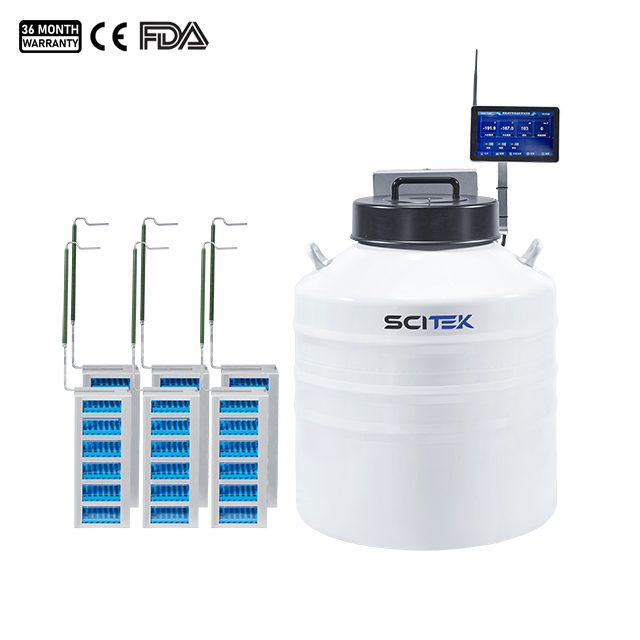

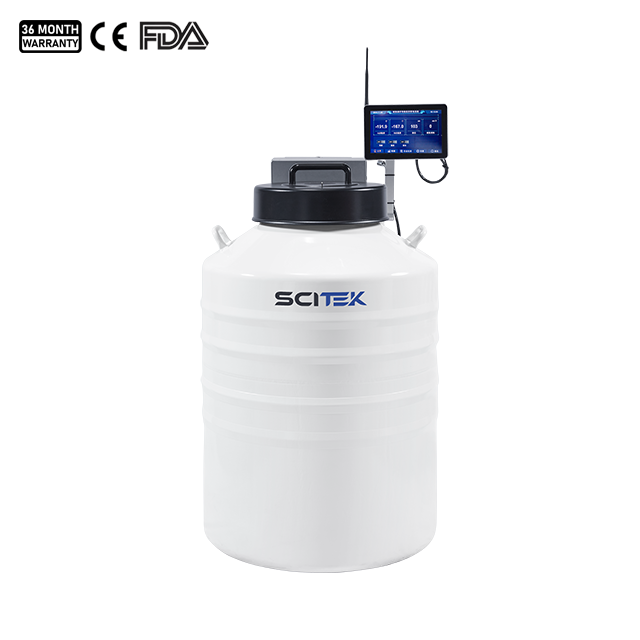

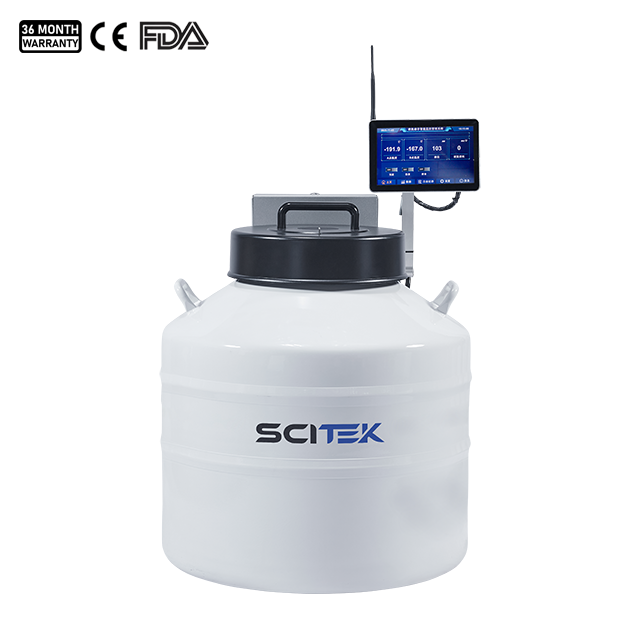

Model : LNC-65-216BC; LNC-95-216BC; LNC-145-216BC; LNC-175-216BC
Static evaporation rate L/day : 1.2; 1.5
Static liquid nitrogen storage period(d) : 54; 95; 96; 116
Bottom liquid nitrogen capacity (L) : 30
Gas phase storage days (d) : 25; 20
Static liquid nitrogen storage period(d) : 54; 95; 96; 116
Bottom liquid nitrogen capacity (L) : 30
Gas phase storage days (d) : 25; 20
You can later choose whether you want a quote, or if you place a firm order.
Product Description
Combine the low liquid nitrogen consumption of aluminum Dewar flasks with the monitoring and automatic liquid nitrogen supply functions of the fully automated control system. Based on capacitive liquid level sensors, it is easy to automatically control the liquid level and achieve gas-phase storage at -190 °C at the top of the tank. The liquid level monitoring system continuously monitors and records temperature and liquid level height, automatically fills in when the liquid level is low, and provides remote connected mobile phone alarms when necessary.
Cryobiobank Liquid Nitrogen Tank Specifications:
- Fully automatic liquid nitrogen level control and temperature monitoring
- Standard heat exchanger bypass function
- Can be used for gas-phase storage
- Real time display of liquid nitrogen consumption
- Multiple on-site audible and visual alarm and remote monitoring alarms
- Data storage for up to 10 years, with unchangeable data traceability and troubleshooting events
