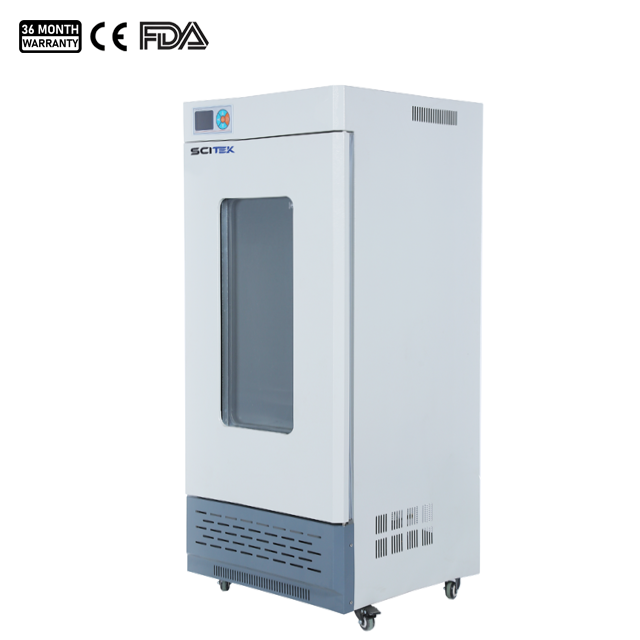

Mould Incubator, 150/250/350/450L

Home » Avik Product Catalogue » Mould Incubator, 150/250/350/450L

Model : ICB-150MI; ICB-250MI; ICB-350MI; ICB-450MI

Capacity(L) : 150 / 250 / 350 / 450
Circulation Mode : Forced convection
Range (℃) : 0~60
Timer : 1~9999min
Shelves : 3 / 3 / 3 / 4

The space-saving mould incubator is ideal for use in life science and industrial research laboratories.

You can later choose whether you want a quote, or if you place a firm order.

Mould Incubator Specifications:

Model		ICB-150MI	ICB-250MI	ICB-350MI	ICB-450MI
Capacity(L)		150	250	350	450
Circulation Mode		Forced convection
Size(WxDxH)	Internal (mm)	550×390×800	560×420×1050	560×530×1200	700×530×1210
Size(WxDxH)	External (mm)	600×630×1460	660×660×1700	670×730×1880	810×790×1890
Temperature	Range (℃)	0~60
	Fluctuation (℃)	±0.5
	Resolution (℃)	0.1
	Uniformity (℃)	±1
	Sensor	PT100
Controller		PID
Display		High efinition LCD
Timer		1~9999min
Material	Internal	Mirror sainless steel
Material	External	Cold rolled steel electrostatic spraying exterior
Shelves		3	3	3	4
Refrigerant		R134a (CFC free)
Safety Device		Leakage protector, over temperaure visible & audible alarm
Electricity	Voltage/Frequency	AC 220/110V, 50/60Hz
Electricity	Consumption (W)	690	730	780	1320
N.W./G.W. (kg)		100/120	120/150	140/160	158/200
Shipping Size (WxDxH)(mm)		760x710x1610	800x760x1930	810x900x2020	900x1150x2080
Optional		Test hole(Φ25/50/80/100mm), spare shelf, internal socket, digital independent temp. limiter, intelligent LCD procedure temperature controller (Optional USB, RS485/232 port, and built-in printer)

Observation window for easy viewing of chamber contents.
Adjustable shelf with minimum spacing of 30mm.
Corrosion-resistant brushed stainless steel inner chamber.
Efficient internal circulation system with high-quality fan.Back suction and bottom vertical air supply for improved ventilation and temperature uniformity.
Laser hollowed-out shelf for enhanced ventilation and temperature uniformity.
Intelligent control with large-screen LCD display.User-friendly menu-type operation interface. Running functions include fixed value and timing modes.
Energy-saving features such as synthetic silicone sealing strip to prevent heat loss.
Automatic adjustment of control parameters for optimal heating and energy consumption.
High efficiency and energy-saving compressor for stable temperature control and low power consumption.
Standard UV lamp with sterilization function.
