HomeMould Incubator, ME Series

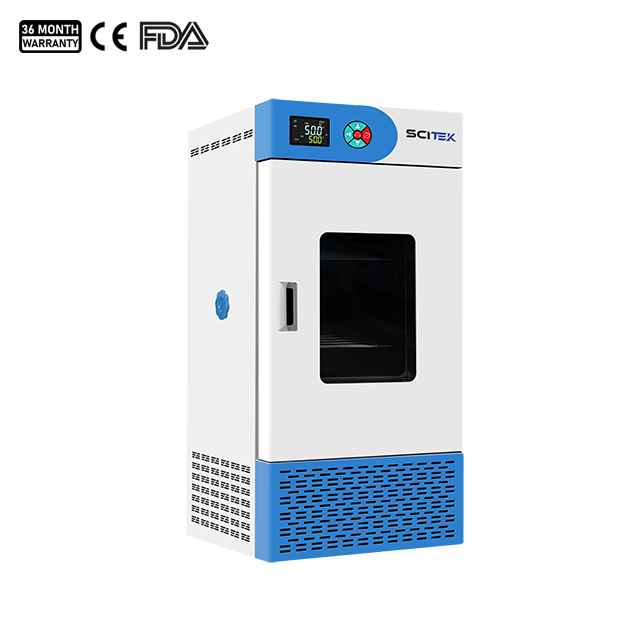

Mould Incubator, ME Series

Model : ICB-50ME; ICB-80ME; ICB-150ME; ICB-250ME; ICB-350ME; ICB-460ME;

Capacity(L) : 80/150/250/350/460
Temperature Range (℃) : 0-65℃
Resolution (℃) : 0.1℃
Accuracy : ±2℃
You can later choose whether you want a quote, or if you place a firm order.

Product Description

Cooling Biochemical Incubator Features:

  1. Stainless steel chamber, semi-circular inner corner, shelves can be freely loaded and unloaded, easy to clean.
  2. The shell is treated with electrostatic spraying technology, which is corrosion-resistant and durable.
  3. Microcomputer control system, accurate and reliable temperature control.
  4. High-efficiency compressor and circulating fan are used, which are energy-saving and low-consumption.
  5. Equipped with a temperature limit alarm system, which will automatically limit over-temperature to ensure experimental safety.
  6. The outer door is sealed with magnetic strips, which is easy to open and close, has good sealing and thermal insulation performance.
  7. Double-layer glass observation window, and a UV sterilizer lamp is installed in the chamber.

Cooling Biochemical Incubator Specifications:

Model ICB-50ME ICB-80ME ICB-150ME ICB-250ME ICB-350ME ICB-460ME
Capacity(L) 50 80 150 250 350 460
Circulation Mode Forced convection
Internal Size (WxDxH)(mm) 350x350x400 400x400x500 400x500x750 500x550x910 600x600x1000 650x650x1100
External Size (WxDxH)(mm) 580x460x900 610x560x1070 600x660x1400 700x720x1590 790x760x1640 850x805x1730
Temperature Range 0-65℃
Fluctuation High Temp.: ±0.5°C; Low Temp.:±1°C
Resolution 0.1℃
Accuracy ±2℃
Controller PID controller
Display Digital LCD dispaly
Timer(min) 0-9999
Material Internal Stainless steel
External Cold rolled steel electrostatic spraying exterior
Lighting System UV germicidal lamp
Test Hole Standard Φ43mm test hole on the left side
Refrigerant R134a (CFC free)
Defrost Mode Automatic
Power Supply AC 220/110V, 50/60Hz
Consumption(W) 500 600 800 1000 1200 1400
Shelves 2 2 2 2 2 2
Shipping Size (W×D×H)(mm) 615x510x980 690x620x1150 770x735x1520 820x800x1660 870x860x1800 990x1040x1970
G.W. (kg) 51 61 87 112 139 168
Optional USB Port; RS485 interface, printer and spare shelf
