HomeMould Incubator

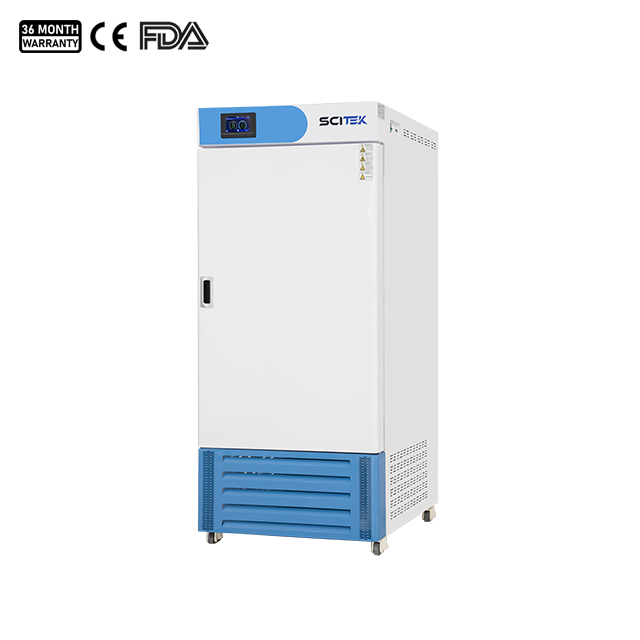

Mould Incubator

Model : ICB-80MP; ICB-150MP; ICB-250MP; ICB-350MP; ICB-460MP

Capacity(L) : 80/150/250/350/460
Circulation Mode : Forced convection
Range (℃) : 0 ~ 65
Fluctuation (℃) : High Temp.: ±0.5°C; Low Temp.:±1°C
You can later choose whether you want a quote, or if you place a firm order.

Product Description

Mould Incubator Features:

  1. 304 Stainless steel chamber, semi-circular inner corner, shelves can be freely loaded and unloaded, easy to clean.
  2. The shell is treated with electrostatic spraying technology, which is corrosion-resistant and durable.
  3. Large touch screen, 99×5-segment program control, with temperature curve, data storage function.
  4. High-efficiency compressor and circulating fan are used, which are energy-saving and low-consumption.
  5. Equipped with a temperature limit alarm system, which will automatically limit over-temperature to ensure experimental safety.
  6. Double-layer door structure, the inner door uses tempered glass for easy observation of samples, and the outer door uses magnetic strips for good sealing and heat preservation performance.
  7. A UV sterilizer lamp is installed in the chamber.

Mould Incubator Specifications:

Model ICB-80MP ICB-150MP ICB-250MP ICB-350MP ICB-460MP
Capacity(L) 80 150 250 350 460
Circulation Mode Forced convection
Size(WxDxH)(mm) Internal 400x400x500 400x500x750 500x550x910 600x600x1000 650x650x1100
External 625x550x1065 600x660x1360 720x710x157 800x760x1610 850x810x1715
Temperature Range (℃) 0 ~ 65
Fluctuation (℃) High Temp.: ±0.5°C; Low Temp.:±1°C
Resolution (℃) 0.1
Uniformity (℃) ±1
Sensor PT100
Controller PID controller
Display Large high definition LCD
Timer 0-99h59min/99*5Segments (with timing waiting function)
Material Internal 304 stainless steel
External Cold rolled steel electrostaticspraying exterior
Lighting System UV germicidal lamp
Test Hole Standard Φ43mm test hole on the left side
External Socket Universal socket(one)
Refrigerant R134a (CFC free)
Defrost Mode Automatic
Safety Device Over temperature
Voltage/Frequency AC 220/110V, 50/60Hz
Consumption(W) 600 800 1000 1200 1400
Shelves 2
G.W. (kg) 61 88 112 139 168
Shipping Size (WxDxH)(mm) 690x620x1150 770x735x1520 820x800x1660 870x860x1800 990x1040x1970
Standard USB port for storing and exporting data
Optional RS485 interface, printer and spare shelf
