Pharmaceutical Light Stability Test Chamber
Pharmaceutical Light Stability Test ChamberPharmaceutical Light Stability Test Chamber

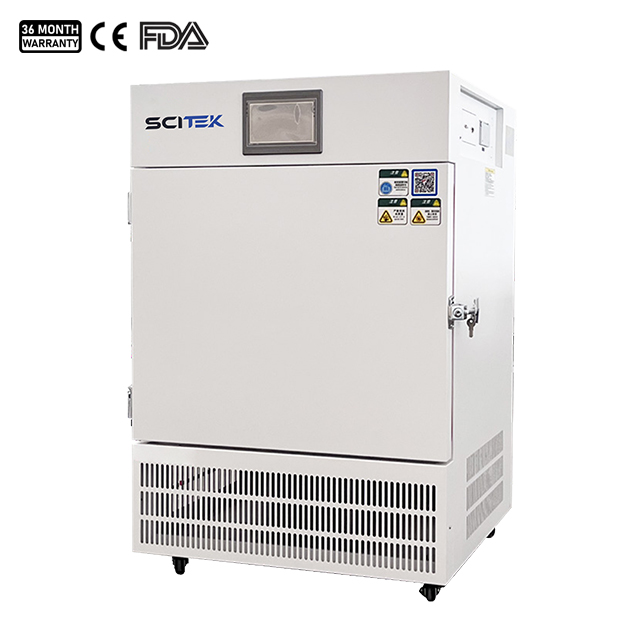

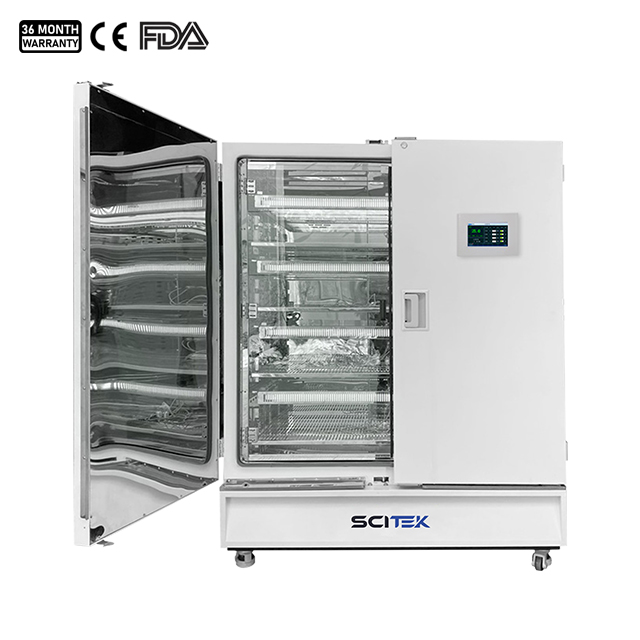

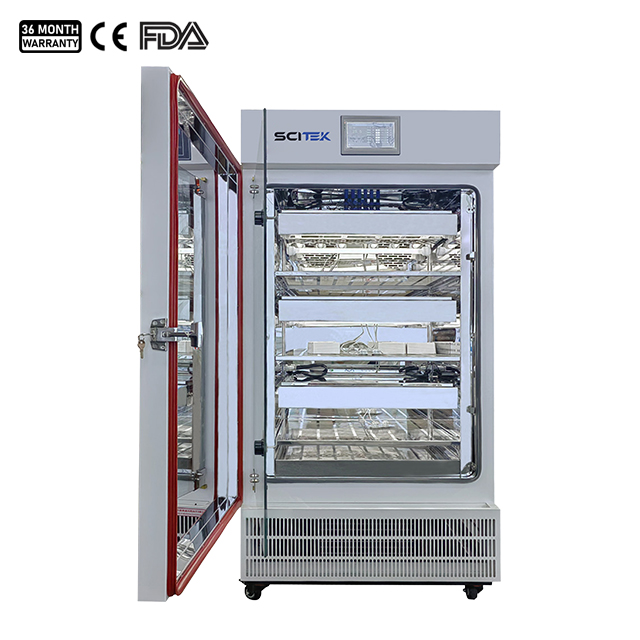

Model : MSTC-150TPS1; MSTC-500TPS2; MSTC-500TPS3; MSTC-1000TPS3; MSTC-150LTPS1; MSTC-500LTPS2

Capacity : 150 ; 500 ; 1000
Illuminance : 100~8000Lux, direct setting ; 100~6000Lux, direct setting
Temperature Range : 15~50°C; 2~30°C
Temperature Uniformity : ±2°C(Same level)

Shelves(Standard) Visible Light+UVA : 1;2;3

Temperature Fluctuation : ±1°C
You can later choose whether you want a quote, or if you place a firm order.

Product Description

Medicine Stability Testing Chamber Feature:

  1. Fully enclosed compressor, high efficiency, long life, low noise.
  2. Double-door design, with a solid outer door and tempered glass inside. The inner part of the outer door is made of 304 stainless steel.
  3. Internal material for mirror stainless steel 304, and the outer shell is made of high-quality steel plate sprayed with plastic.
  4. 7-inch large programmable color touch screen controller with three levels of user permissions and audit trail function.
  5. With a USB interface and a printer, with a long-term data storage function. It can store temperature values, visible light values and near-ultraviolet values for more than 1 year, and can print temperature, visible light, and near-ultraviolet values simultaneously.
  6. Safety Device: Equipped with independent over-temperature protection function, automatically cut off power supply, compressor overheat protection, compressor overpressure protection, compressor overload protection and fan overheat protection.

Medicine Stability Testing Chamber Specification:

Model MSTC-150TPS1 MSTC-500TPS2 MSTC-500TPS3 MSTC-1000TPS3 MSTC-150LTPS MSTC-500LTPS2
Capacity(L) 150 500 500 1000 150 500
Temperature Range 15~50°C 2~30°C
Temperature Uniformity ±2°C(Same level)
Temperature Fluctuation ±1°C
Illuminance 100~8000Lux, direct setting 100~6000Lux, direct setting
Security Alarm Temperature deviation buzzer alarm, independent over-temperature alarm
Shelves(Standard)

Visible Light+UVA

1 2 3 3 1 2
Consumption(W) 1500 2000 2100 2500 1500 2000
Internal Size(W×D×H)(mm) 650×490×500 680×680×1080 1360×490×1360 650×490×500 680×680×1080
External Size (W×D×H)(mm) 830×790×1250 860×1050×1850 1620×910×1990 830×790×1250 860×1050×1850
Shipping Size (W×D×H) (mm) 880×900×1380 1200×980×2060 1620×980×2150 880×900×1380 1200×980×2060
G.W.(kg) 258 380 460 258 380
Power Supply 220/110V, 50/60HZ
Remark Total illumination not less than1.2×106 Lux·hr

Near-UV range: 0.84~5w/m²; near-UV energy not less than 200w•hr/m²

Near-ultraviolet wavelengt: 320~400nm

Total illumination not less than1.2×106 Lux·hr

Near-UV range: 0.84~1w/m²; near-UV energy not less than 200w•hr/m²

Near-ultraviolet wavelength: 320~400nm
