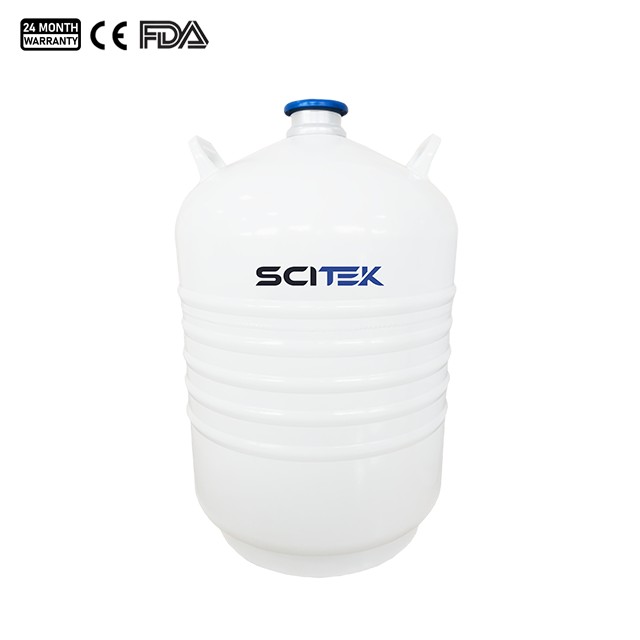

Static Storage Liquid Nitrogen Tank

Home » Avik Product Catalogue » Static Storage Liquid Nitrogen Tank

Model : LNC-10-80S; LNC-10-125S; LNC-13-50S; LNC-15-50S; LNC-20-50S; LNC-25-50S; LNC-30-50S; LNC-30-80S; LNC-30-125S; LNC-35-50S; LNC-35-80S; LNC-35-125S; LNC-47-127S; LNC-50-125S

LN₂ Capacity (L) : 10 / 10 / 13 / 15 / 20 / 25 / 31.5 / 31.5 / 31.5 / 35.5 / 35.5 / 35.5 / 47 / 50
Neck Opening (mm) : 80 / 125 / 50 / 50 / 50 / 50 / 50 / 80 / 125 / 50 / 80 / 125 / 127 / 125
Static Holding Time (day) : 48 / 24 / 109 / 134 / 168 / 180 / 254 / 147 / 90 / 286 / 159 / 97 / 130 / 110
Canister Diameter (mm) : 63 / 97 / 38 / 63 / 97 / 104 / 97

The static storage series is a cost-effective liquid nitrogen tank designed for long-term storage of biological samples in laboratories.

You can later choose whether you want a quote, or if you place a firm order.

Product Description

Liquid Nitrogen Storage Tank Specifications:

Model		LNC-10-80S	LNC-10-125S	LNC-13-50S	LNC-15-50S	LNC-20-50S	LNC-25-50S	LNC-30-50S
Performance
LN₂ Capacity (L)		10	10	13	15	20	25	31.5
Weight Empty (kg)		6.2	6.3	6.3	8.5	9.5	10.7	12.9
Neck Opening (mm)		80	125	50	50	50	50	50
Outer Diameter (mm)		300	300	310	394	394	394	462
Overall Height (mm)		557	554	623	591	672	700	705
Static Evaporation Rate (L/day)		0.21	0.43	0.12	0.11	0.12	0.14	0.12
Static Holding Time (day)		48	24	109	134	168	180	254
Maximum Storage Capacity
Canister Diameter (mm)		63	97	38	38	38	38	38
Canister Height (mm)		120	120	276	120	120/276	120/276	120/276
Numbar Of Canisters (sa)		6	1	6	6	6	6	6
Straws Capacity (120 mm canister)	0.5ml (ea)	2244	854	/	792	792	792	792
Straws Capacity (120 mm canister)	0.25ml (ea)	5022	1940	/	1788	1788	1788	1788
Straws Capacity (276 mm Canister)	0.5ml (ea)	/	/	1284	/	1284	1284	1284
Straws Capacity (276 mm Canister)	0.25ml (ea)	/	/	2832	/	2832	2832	2832
Gross Weight (kg)		8.3	7.6	9.1	11.3	12.7	14.2	15.8
Shipping Size (WxDxH) (mm)		340×340 x615	340×340 x615	350×350 x690	425×425 x655	425×425 x735	425×425 x765	480×480 x900
Optional Accessories
Lockable Lid		Standard	Standard	Standard	Standard	Standard	Standard	Standard
PU Bag (Protective Jacket)		Standard	/	Standard	Standard	Standard	Standard	Standard
Smart Cap		Standard	Standard	Standard	Standard	Standard	Standard	Standard
Roller Base		/	/	/	/	/	/	Standard

Model		LNC-30-80S	LNC-30-125S	LNC-35-50S	LNC-35-80S	LNC-35-125S	LNC-47-127S	LNC-50-125S
Performance
LN₂ Capacity (L)		31.5	31.5	35.5	35.5	35.5	47	50
Weight Empty (kg)		13	13	14.2	14.5	14.6	18.2	17.3
Neck Opening (mm)		80	125	50	80	125	127	125
Outer Diameter (mm)		462	462	462	462	462	508	462
Overall Height (mm)		709	704	749	753	748	718	818
Static Evaporation Rate (L/day)		0.21	0.35	0.12	0.22	0.37	0.36	0.45
Static Holding Time (day)		147	90	286	159	97	130	110
Maximum Storage Capacity
Canister Diameter (mm)		63	97	38	63	97	104	97
Canister Height (mm)		120/276	120	120/276	120/276	120/276	276	120/276
Numbar of Canisters (sa)		6	6	6	6	6	6	6
Straws Capacity (120 mm Canister)	0.5ml (ea)	2244	5124	792	2244	5124	/	5124
Straws Capacity (120 mm Canister)	0.25ml (ea)	5022	11640	1788	5022	11640	/	11640
Straws Capacity (276 mm Canister)	0.5ml (ea)	3624	/	1284	3624	9048	10704	9048
Straws Capacity (276 mm Canister)	0.25ml (ea)	8460	/	2832	8460	20760	23604	20760
Gross Weight (kg)		16.3	17.3	18.1	18.7	19.9	26.2	23.4
Shipping Size (WxDxH)(mm)		480x480x900	480x480x900	480x480x915	480x480x915	480x480x915	540x540x890	480x480x985
Optional Accessories
Lockable Lid		Standard	Standard	Standard	Standard	Standard	Standard	Standard
PU Bag (Protective Jacket)		Standard	Standard	Standard	Standard	Standard	/	Standard
Smart Cap		Standard	Standard	Standard	Standard	Standard	Standard	Standard
Roller Base		Standard	Standard	Standard	Standard	Standard	Standard	Standard

Static liquid nitrogen tank is made of high strength and light weight aluminium alloy with multi-layer and super-strong insulation layer. It realizes the safety, lightness and efficiency of the product. Specially designed for biological samples that need long-term static storage.
