Laboratory Liquid Nitrogen Tank B Series

Home » Avik Product Catalogue » Laboratory Liquid Nitrogen Tank B Series

Model : LNC-015-30B; LNC-2-30B; LNC-2-35B; LNC-3-50B; LNC-6-50B; LNC-6-80B; LNC-10-50B; LNC-10-80B; LNC-13-50B; LNC-15-50B; LNC-20-50B; LNC-20-80B; LNC-30-50B; LNC-30-80B; LNC-30-125B; LNC-35-50B; LNC-35-80B; LNC-35-125B; LNC-47-127/6B; LNC-47-127/10B; LNC-50-50B; LNC-50-80B; LNC-50-125B

Capacity (L) : 1.5; 2; 3.15; 6; 10; 13; 15; 20; 31.5; 35.5; 47; 50
Number of handle buckets : 3; 6; 10

You can later choose whether you want a quote, or if you place a firm order.

Product Description

This series is specifically designed for samples that require long-term static storage, using circular buckets to store cells, tissues, or other biological samples. The product is durable, lightweight, and has many advantages such as a 5-year vacuum guarantee. Standard stainless steel bucket;

Laboratory Liquid Nitrogen Tank Feature:

The buckets are distinguished by different colors for easy and quick sample identification;
Durable aluminum structure and vacuum insulation design;
Small mouth design reduces liquid nitrogen consumption;
Standard safety lock buckle provides more security for samples;

Laboratory Liquid Nitrogen Tank Specifications:

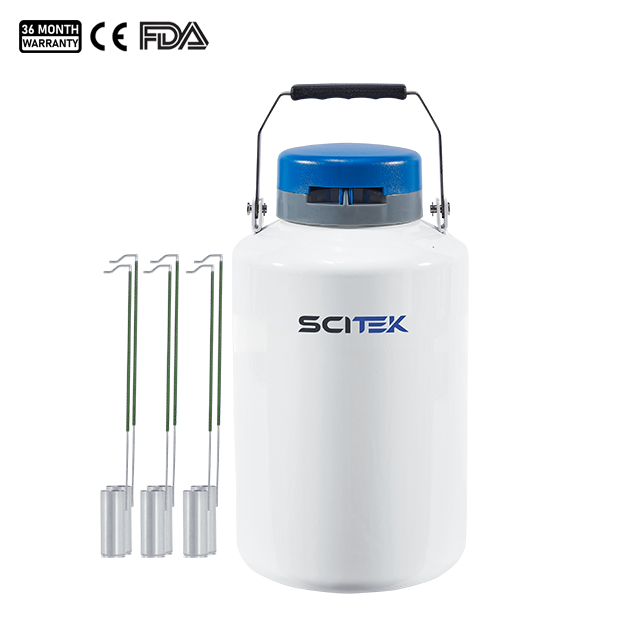

Model	LNC-015-30B	LNC-2-30B	LNC-2-35B	LNC-3-50B	LNC-6-50B
Capacity (L)	1.5	2	2	3.15	6
Number of handle buckets	3	3	3	6	6
Bucket diameter (mm)	19	19	25	38	38
Bucket height (mm)	120	120	120	120	120
Straw capacity 0.25ml	195	195	345	1716	1716
Straw capacity 0.5ml	90	90	159	792	793
Number of cryovials that each bucket can hold	1	1	1	5	5
Number of cryotubes (3 cryotubes/cryo-strip)	9	9	9	90	90
Number of cryotubes (6 cryotubes/cryo-strip)	——	——	——	——	——
Static evaporation rate (L/day)	0.071	0.071	0.11	0.12	0.115
Static liquid nitrogen storage days	21	28	18	26	52
Caliber (mm)	30	30	35	50	50
Overall height (mm)	398	410	420	441	488
External diameter (mm)	180	224	195	224	300
Empty weight (kg)	1.7	2.5	2.9	3.5	5.3

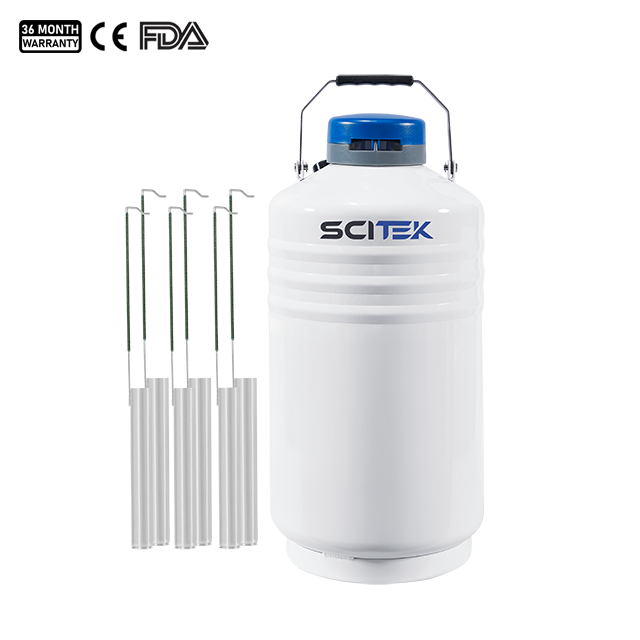

Model	LNC-6-80B	LNC-10-50B	LNC-10-80B	LNC-13-50B	LNC-15-50B
Capacity (L)	6	10	10	13	15
Number of handle buckets	6	6	6	6	6
Bucket diameter (mm)	63	38	63	38	38
Bucket height (mm)	120	120	120	120/276	120
Straw capacity 0.25ml	4986	1716	4986	1716/2580	1716
Straw capacity 0.5ml	2250	794	2250	794/1200	794
Number of cryovials that each bucket can hold	14	5	14	5	5
Number of cryotubes (3 cryotubes/cryo-strip)	252	90	252	90	90
Number of cryotubes (6 cryotubes/cryo-strip)	——	——	——	180	180
Static evaporation rate (L/day)	0.225	0.116	0.21	0.12	0.11
Static liquid nitrogen storage days	27	86	48	109	136
Caliber (mm)	80	50	80	50	50
Overall height (mm)	492	566	557	630	618
External diameter (mm)	300	300	300	300	396
Empty weight (kg)	5.6	6	6.3	8.4	10

Model	LNC-20-50B	LNC-20-80B	LNC-30-50B	LNC-30-80B	LNC-30-125B
Capacity (L)	20	20	31.5	31.5	31.5
Number of handle buckets	6	6	6	6	6
Bucket diameter (mm)	38	63	38	63	97
Bucket height (mm)	120/276	120/276	120/276	120/276	120
Straw capacity 0.25ml	1716/2580	4986/8532	1716/2580	4986/8532	11220
Straw capacity 0.5ml	794/1200	2250/3984	794/1200	2250/3984	6300
Number of cryovials that each bucket can hold	5	14	5	14	37
Number of cryotubes (3 cryotubes/cryo-strip)	90	252	90	252	666
Number of cryotubes (6 cryotubes/cryo-strip)	180	504	180	504	1332
Static evaporation rate (L/day)	0.12	0.225	0.124	0.214	0.35
Static liquid nitrogen storage days	168	89	254	147	90
Caliber (mm)	50	80	50	80	125
Overall height (mm)	688	701	681	681	736
External diameter (mm)	396	396	451	451	451
Empty weight (kg)	12.2	12.7	15.3	15.8	16.4

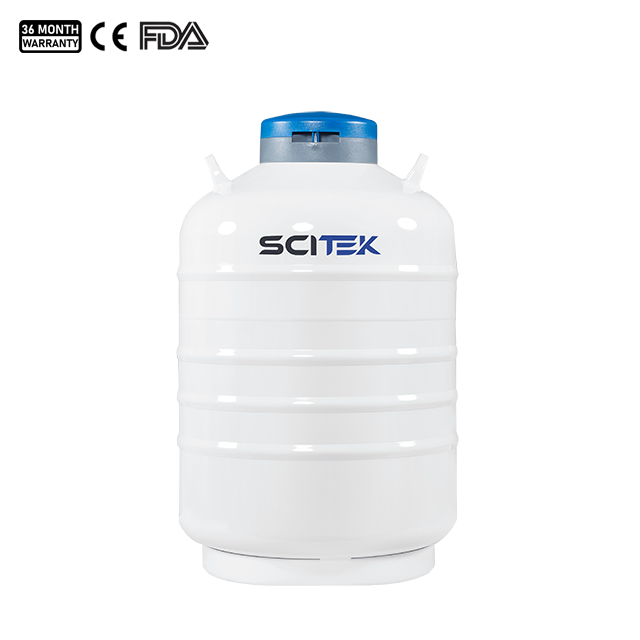

Model	LNC-35-50B	LNC-35-80B	LNC-35-125B	LNC-47-127/6B	LNC-47-127/10B
Capacity (L)	35.5	35.5	35.5	47	47
Number of handle buckets	6	6	6	6	10
Bucket diameter (mm)	38	63	97	97	72
Bucket height (mm)	120/276	120/276	120/276	120/276	120/276
Straw capacity 0.25ml	1716/2580	4986/8532	11220/21000	11220/21000	10600/16840
Straw capacity 0.5ml	794/1200	2250/3984	6300/9360	6300/9360	5000/7800
Number of cryovials that each bucket can hold	5	14	37	37	20
Number of cryotubes (3 cryotubes/cryo-strip)	90	252	666	666	600
Number of cryotubes (6 cryotubes/cryo-strip)	180	504	1332	1332	1200
Static evaporation rate (L/day)	0.124	0.2	0.36	0.36	0.36
Static liquid nitrogen storage days	286	178	99	131	131
Caliber (mm)	50	80	125	127	127
Overall height (mm)	735	760	805	730	730
External diameter (mm)	451	451	451	508	508
Empty weight (kg)	16.3	17.2	18	19.2	19.2

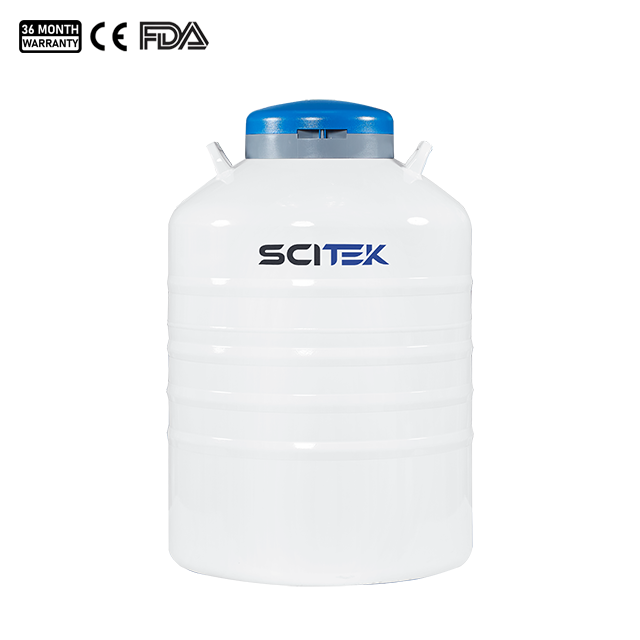

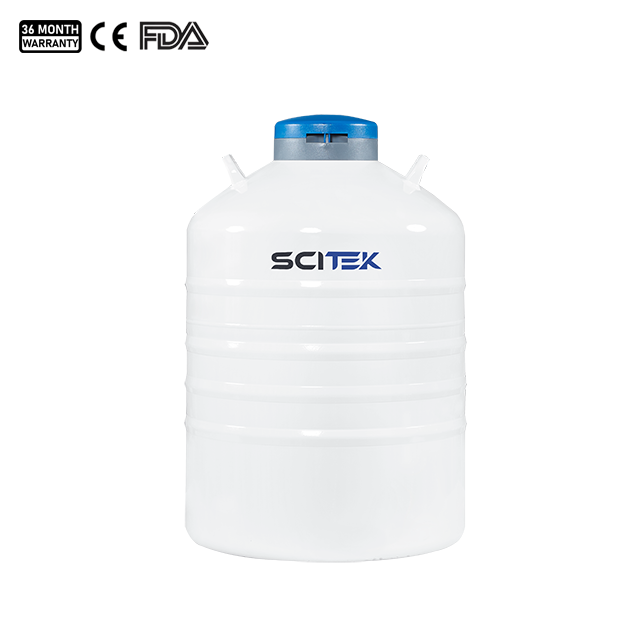

Model	LNC-50-50B	LNC-50-80B	LNC-50-125B
Capacity (L)	50	50	50
Number of handle buckets	6	6	6
Bucket diameter (mm)	38	63	97
Bucket height (mm)	120/276	120/276	120/276
Straw capacity 0.25ml	1716/2580	4986/8532	11220/21000
Straw capacity 0.5ml	794/1200	2250/3984	6300/9360
Number of cryovials that each bucket can hold	5	14	37
Number of cryotubes (3 cryotubes/cryo-strip)	90	252	666
Number of cryotubes (6 cryotubes/cryo-strip)	180	504	1332
Static evaporation rate (L/day)	0.24	0.3	0.36
Static liquid nitrogen storage days	209	167	139
Caliber (mm)	50	80	125
Overall height (mm)	777	777	820
External diameter (mm)	508	508	508
Empty weight (kg)	21	21	23
