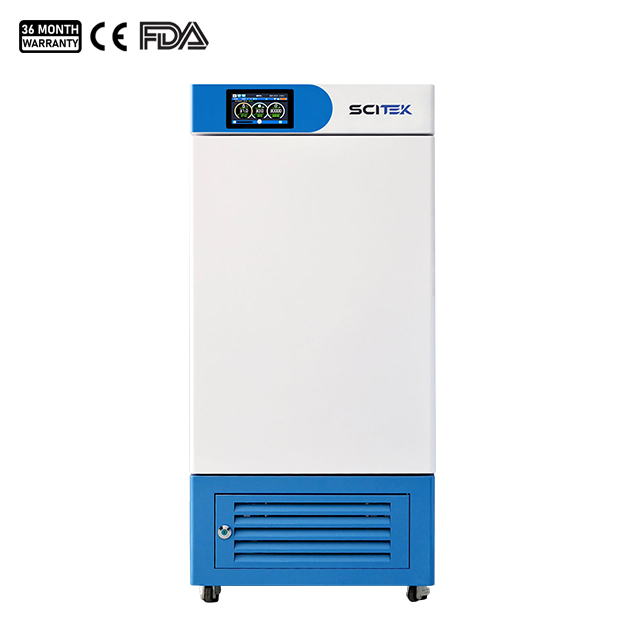

Vertical Climate Incubator (ICB-RC) 150L/250L/350L/460L

Home » Avik Product Catalogue » Vertical Climate Incubator (ICB-RC) 150L/250L/350L/460L

Model : ICB-R150C; ICB-R250C; ICB-R350C; ICB-R460C

Capacity (L) : 150; 250; 350; 460
Circulation Mode : Forced convection
Temperature Range : With light: 10~65 °C; Without light: 0~65 °C
Sensor : PT100
Humidity Range : 45~95% RH
Illuminance (lx) : 0~45000 (supports the input of illuminance)

The climate incubator is energy-efficient and suitable for any project.

You can later choose whether you want a quote, or if you place a firm order.

Product Description

Climate incubator ICB-RC offers freely programmable and adjustable 99-step temperature and light intensity parameters.

it is energy-efficient and suitable for any project.

Climate Incubator Feature:

1. Double-door structure, the inner door is made of high-quality tempered glass, observation of samples easily.

2. A controller is installed on the door, and with the 7.0-inch color LCD touch screen.

3. The lighting intensity is adjustable in multiple levels, and it allows for free combination programming and operation of 99 segments of temperature and illuminance parameters.

4. With the functions of data storage, export via a USB flash drive and scheduled power on/off.

5. Top lighting design with full-spectrum LED light sources. It is characterized by high illuminance, low heat radiation, and an extremely long service life.

6. An under-temperature protection function and an independent digital display high-precision over-temperature limiter.

7. Once the temperature exceeds the limit, the heating output will be automatically cut off to ensure the safety of samples and the equipment.

8. It uses a variable-frequency compressor, which offers advantages such as energy conservation, low noise, and no frosting.

9. Built-in humidification system, and with the functions of automatic water intake, water shortage alarm and automatic defrosting function.

Climate incubator Specification:

Model		ICB-R150C	ICB-R250C	ICB-R350C	ICB-R460C
Capacity		150 L	250 L	350 L	460 L
Circulation Mode		Forced convection
Internal Size (W×D×H) (mm)		405×500×755	505×545×915	585×600×1050	650×650×1110
External Size (W×D×H) (mm)		600×650×1350	700×705×1550	780×750×1605	845×805×1710
Display		7 inch LCD touch screen
Temperature Range		With Light: 10~65 °C; Without Light: 0~65 °C
Temperature Resolution		0.1 °C
Temperature Fluctuation		±1 °C (The experimental condition is no-load, with an ambient temperature of 20°C and a humidity of 50%RH)
Sensor		PT100
Humidity Range		45~95% RH
Humidity Fluctuation		±3%
Illuminance (lx)		0~45000 (supports the input of illuminance)
Illumination Control		5-level relative illuminance control
Light Source		2-layer top-mounted LED illumination
Controller		PID
Timer		Each segment is 0~999 mins (99×5 segments program)
Material	Internal	304 mirror stainless steel
	External	Electrostatic spraying of galvanized sheet
Shelves		4
Shelf Loading Capacity		15 kg
Refrigerant		R134A (CFC free)
Consumption (W)		800	1000	1200	1600
Working Environment Temperature		10~30 °C
Power Supply		AC 110/220 V, 50/60 Hz
Shipping Size (W×D×H)(mm)		770×735×1520	820×800×1660	870×860×1800	990×1040×1970
Gross Weight (kg)		87	112	139	168
Other Functions		Scheduled power on and off, historical temperature data curve query, U disk data storage and export, deviation correction, menu key locking, power outage compensation, power outage memory, loop self-diagnosis, intelligent defrosting
Safety Device		Temperature exceeds the limit, the heating will be automatically cut off. In case of a long-term low temperature situation, the refrigeration system will be cut off to protect the samples. Loop self-diagnosis.
Optional Accessory		Lighting partition, printer
